Skyjack SJ12 E - 8.2 Left view

74
SJ12 E, SJ16 E, SJ20 E
241914ACA
Section 5 – Procedures Platform

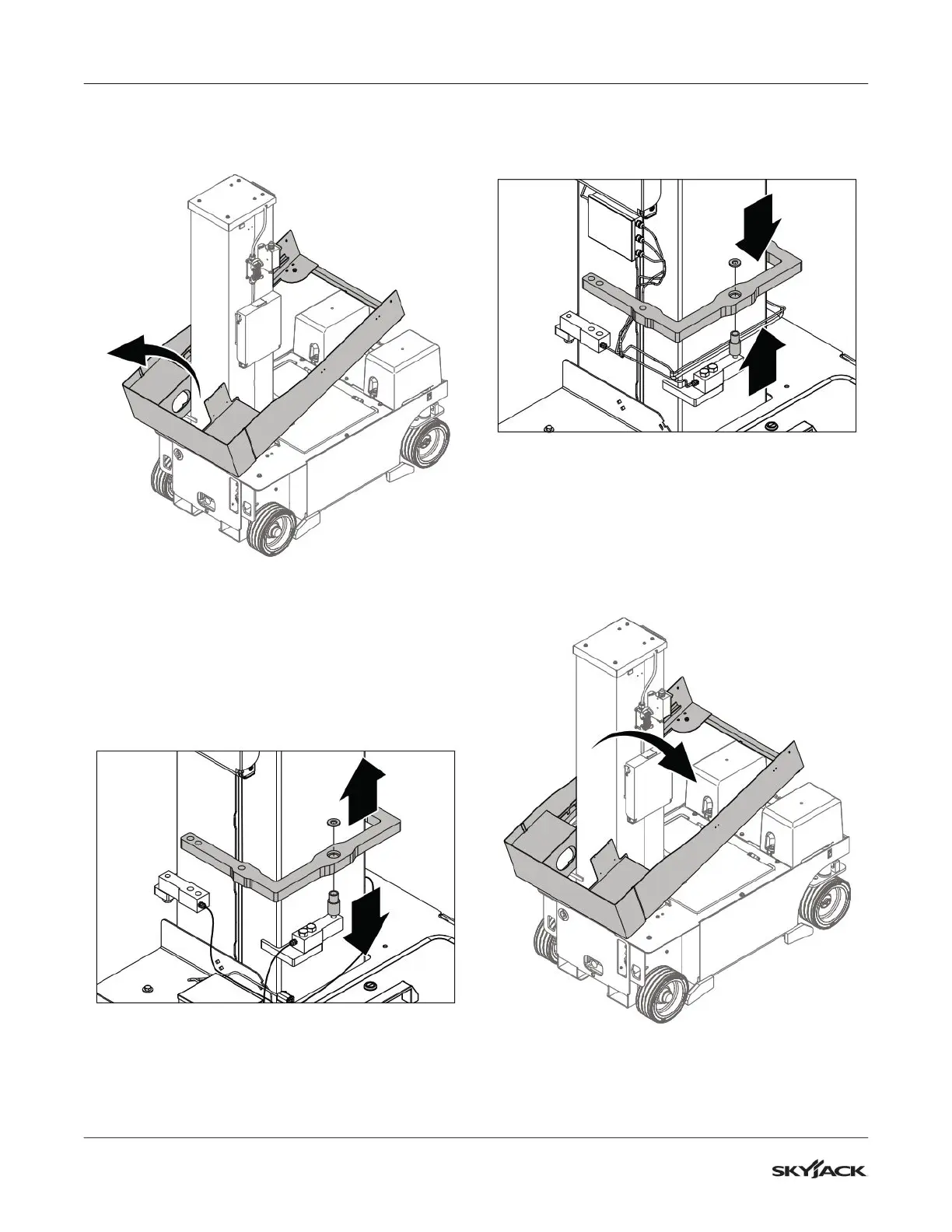

16. Tilt the lower platform backwards.
17. Use an appropriate lifting device or a second
person to help remove the lower platform.
18. Remove and set aside the link weldment, washer
and spacer from the load cells.
5.2-2 Install the Platform
1. Install the link weldment, washer and spacer onto
the load cells.
2. Use an appropriate lifting device or a second
person to help install the lower platform.
3. Tilt the platform towards the chassis.
