73
SJ12 E, SJ16 E, SJ20 E
241914ACA
Platform Section 5 – Procedures

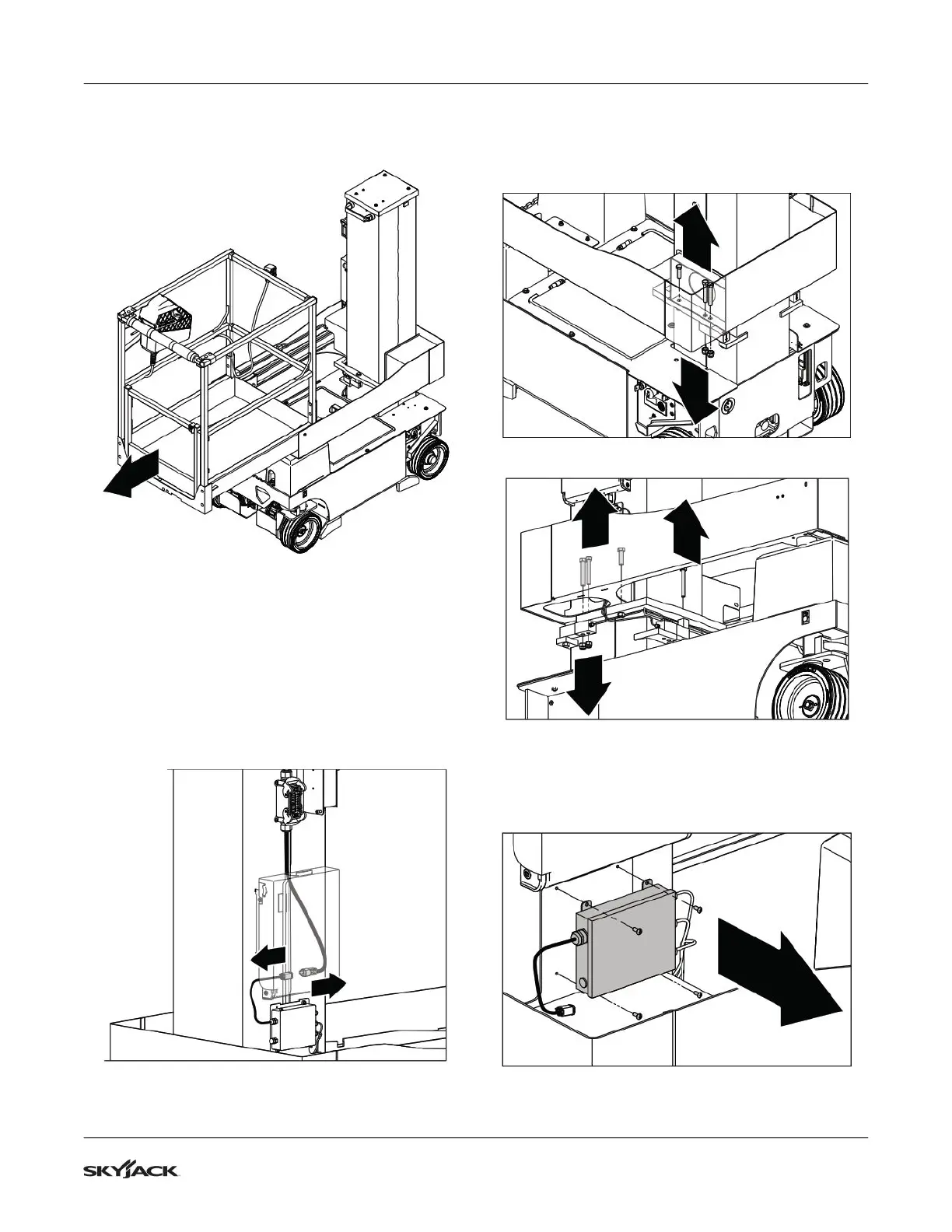

10. Use a suitably rated lifting device to pull the
platform out fully. Set it aside on a protective
surface.
11. Disconnect the mast cable from the junction box
cable.
12. Remove the bolts and nuts that secure the lower
platform to the mast.
13. Make sure the load cells stay attached to the
mast.
14. Remove and set aside the hardware from the
junction box.
15. Put the junction box on the chassis.
To Next Page
