87
SJ12 E, SJ16 E, SJ20 E
241914ACA
Platform Section 5 – Procedures
5.3-6 Replace the Mast Wear Pads
Preparation
1. Remove and set aside the platform. Refer to
section 5.2-1 Remove the Platform.
2. Remove and set aside the lift cylinder. Refer to
section 5.3-2 Remove the Lift Cylinder.

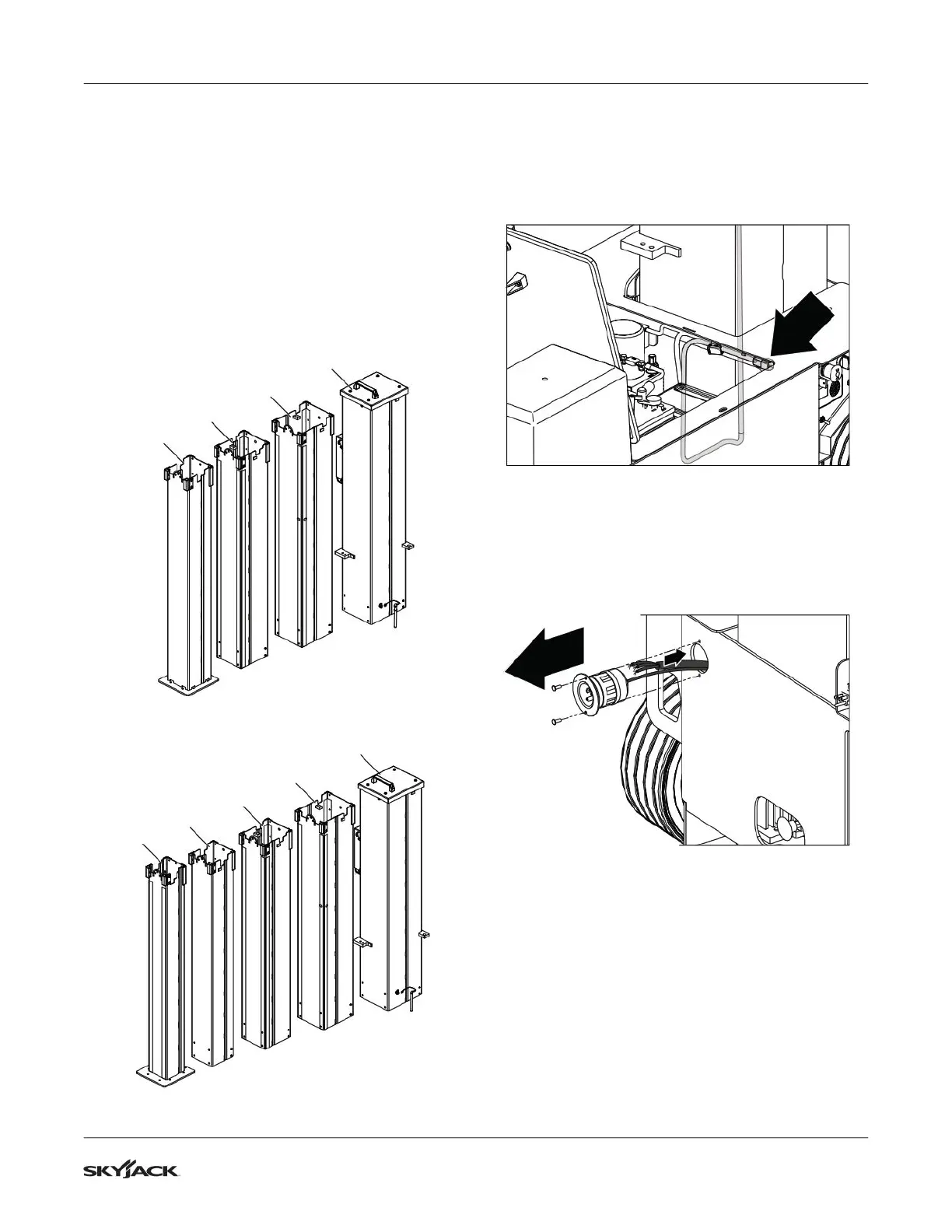

Mast identication
The masts will need to be removed one section at a
time. Refer to the images below for the mast number.
Mast 4
Mast 3
Mast 2
Mast 1
SJ12 E
Mast 5
Mast 4
Mast 3
Mast 2
Mast 1
SJ16/20 E
Remove mast 1 and wear pads
1. Open the service compartment cover.
2. Disconnect the mast cable from the main harness.
3. Cut zip ties along the cable bundles to free the
mast cable.
4. At the rear of the machine, drill out the rivets that
secure the AC inlet to the chassis.
5. Pull out the AC inlet.
6. Disconnect the wires from the back of the AC
inlet.
To Next Page
