164
SJ12 E, SJ16 E, SJ20 E
241914ACA
Section 5 – Procedures Wheels
5.10 Wheels
Tools needed
▪
Adjustable torque wrench 203 Nm (150 ft-lb)
▪
1-7/16” deep socket and wrench
▪
Hub puller

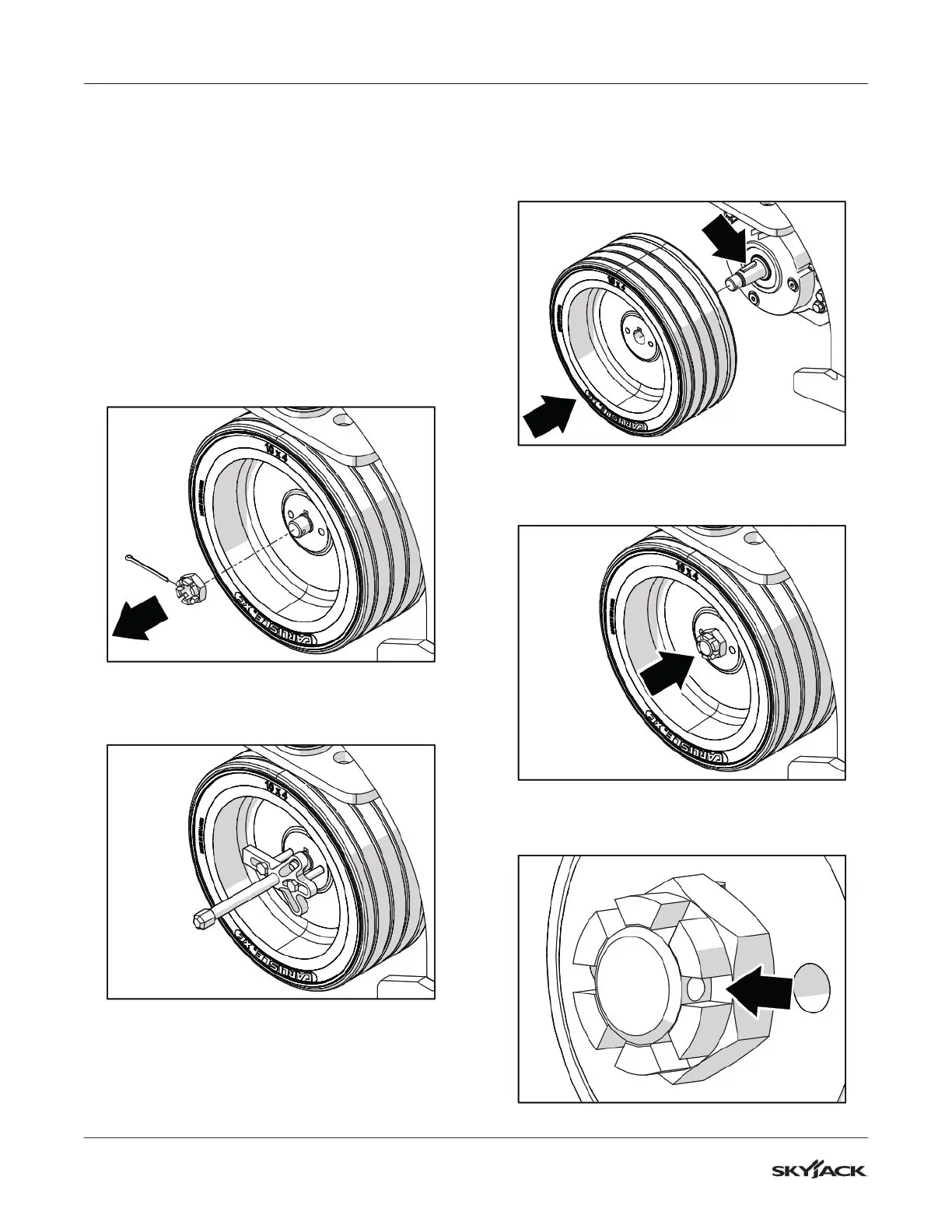

5.10-1 Remove the front wheel
1. Use an appropriately rated lifting device to raise
the MEWP until the wheels are off the ground.
Set the MEWP on stands which are adequately
rated to support the weight of the machine.
2. Remove and discard the cotter pin.
3. Remove and set aside the castle nut.
4. Use two long 3/8”-24 bolts with a hub puller to
remove the wheel from the wheel motor.
5.10-2 Install the front wheel
1. Make sure the key is in the spindle.
2. Line up the keyway in the the wheel with the key
in the spindle. Put the wheel on the spindle.
3. Install the castle nut. Tighten the nut with your
ngers.
4. Torque the castle nut to 95 Nm (70 ft-lb).
5. Check if the holes in the spindle and the slots
in the castle nut are aligned. If they are not,
continue to torque the nut until they are aligned.
