Section 5 – Procedures Platform
9. Use the bolts and washers removed earlier to
secure the front rollers.
10. Push the platform in all the way.
11. Use a screwdriver to open the mast electrical
housing so you can see the wire connections.
12. Connect the limit switch wires to the mast
electrical housing. Refer to section 3.12 Base Limit
Switch for the correct wire connections.
13. Connect the platform control cable to the mast
electrical housing.

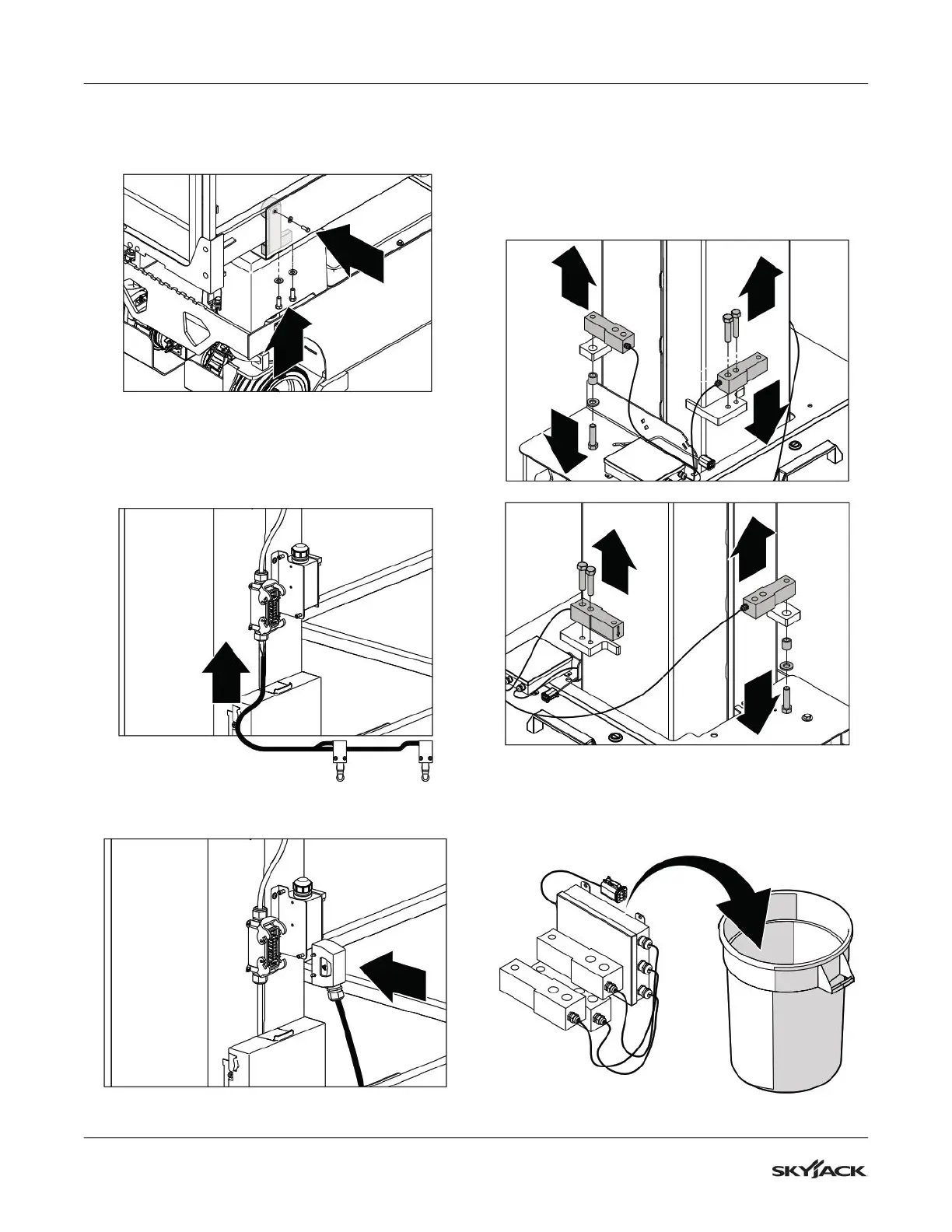

5.2-3 Replace the Load Cells
1. Remove the platform. Refer to section 5.2-1
Remove the Platform.
2. Remove and set aside the bolts, washers and
spacers from the three load cells. Make a note of
which load cells had spacers.
3. Discard the old load cells and junction box
assembly.
