77
SJ12 E, SJ16 E, SJ20 E
241914ACA
Platform Section 5 – Procedures

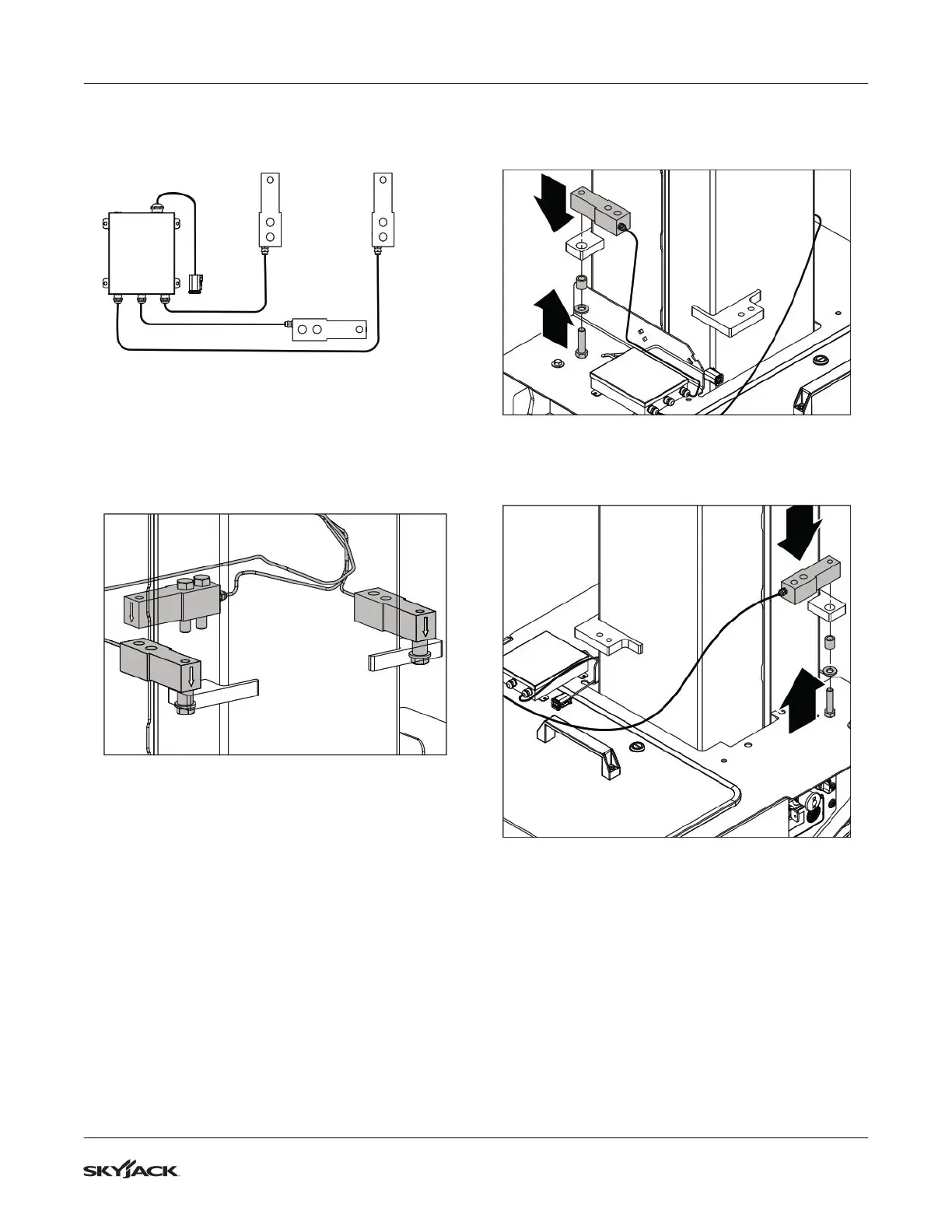

4. Refer to the diagram below for load cell locations.
Manual box
side
Junction
box
Base control
side
Front
5. Make sure the arrows on the load cells are
pointing downwards when they are installed.
6. Mount the manual box and control box load
cells onto the mast using the bolts, washers and
spacers removed earlier.
