Skyjack SJ12 E - Beeper; Base Limit Switch; Platform Limit Switches

48
SJ12 E, SJ16 E, SJ20 E
241914ACA

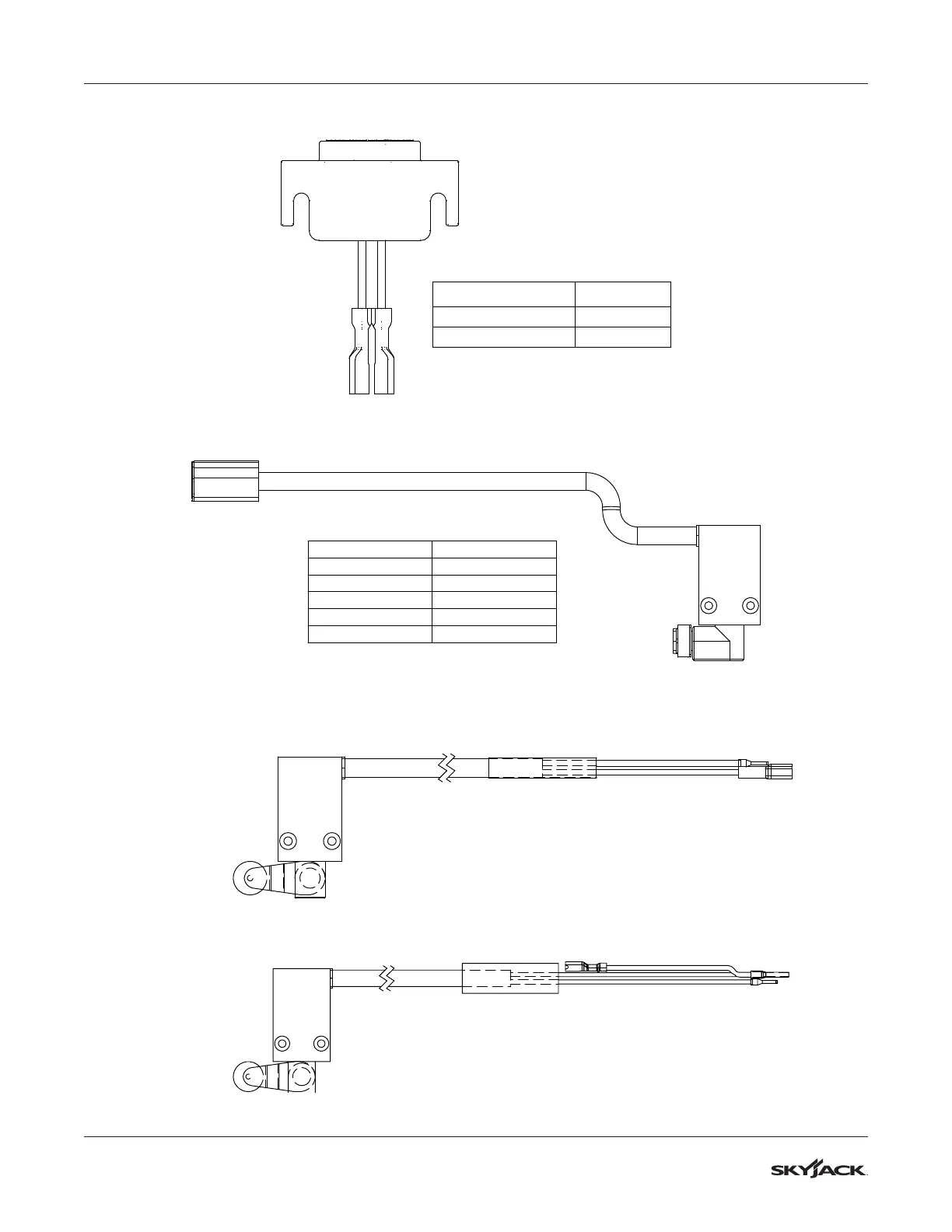

Section 3 – System Component Identication and Schematics Beeper
3.11 Beeper
3.12 Base Limit Switch
3.13 Platform Limit Switches
M215817AC_M234204AC_M234218AD_M234219AE
WIRE COLOUR
WIRE LABEL
RED
29
BLACK 02
WIRE
CAVITY
BROWN
1
BLUE
2
BLACK 3
BLACK/WHITE 4
YELLOW/GREEN NOT USED
TO PIN 5
TO PIN 6
TO BK/WH
TO PIN 7
TO BK/WH
Service
Position
Deck
Extended
