SJ12 E, SJ16 E, SJ20 E
241914ACA
Platform Section 5 – Procedures

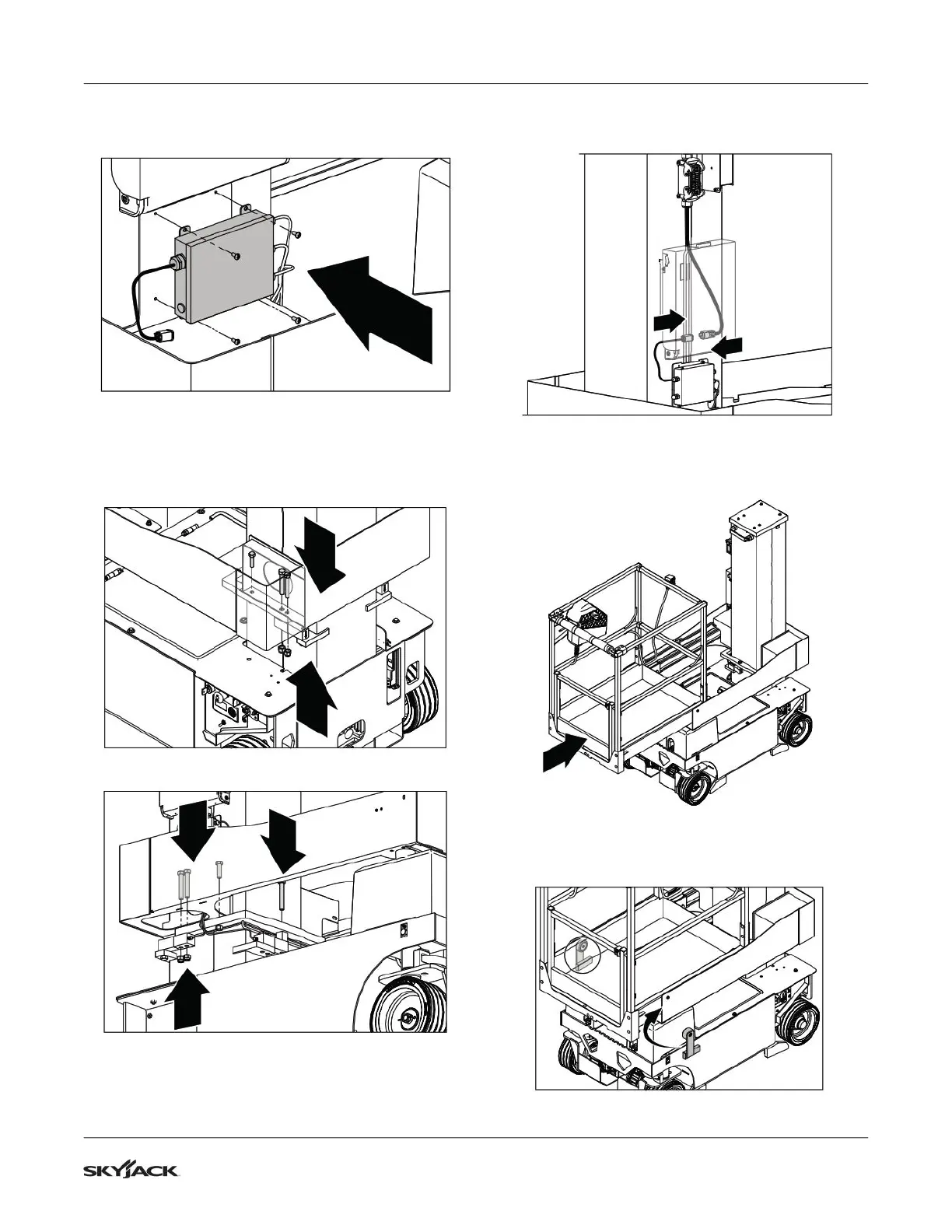

4. Use the screws removed earlier to secure the
junction box to the lower platform.
5. Use the bolts and nuts removed earlier to secure
the lower platform to the mast load cells.
6. Connect the junction box connector to the mast
electrical connector.
7. Install the traverse platform onto the lower
platform. Do not push the platform all the way in
yet.
8. Insert the front rollers between the traverse
platform and the lower platform.
