SLE SLE5000 Model J - Page 89

(Model J) Page 89

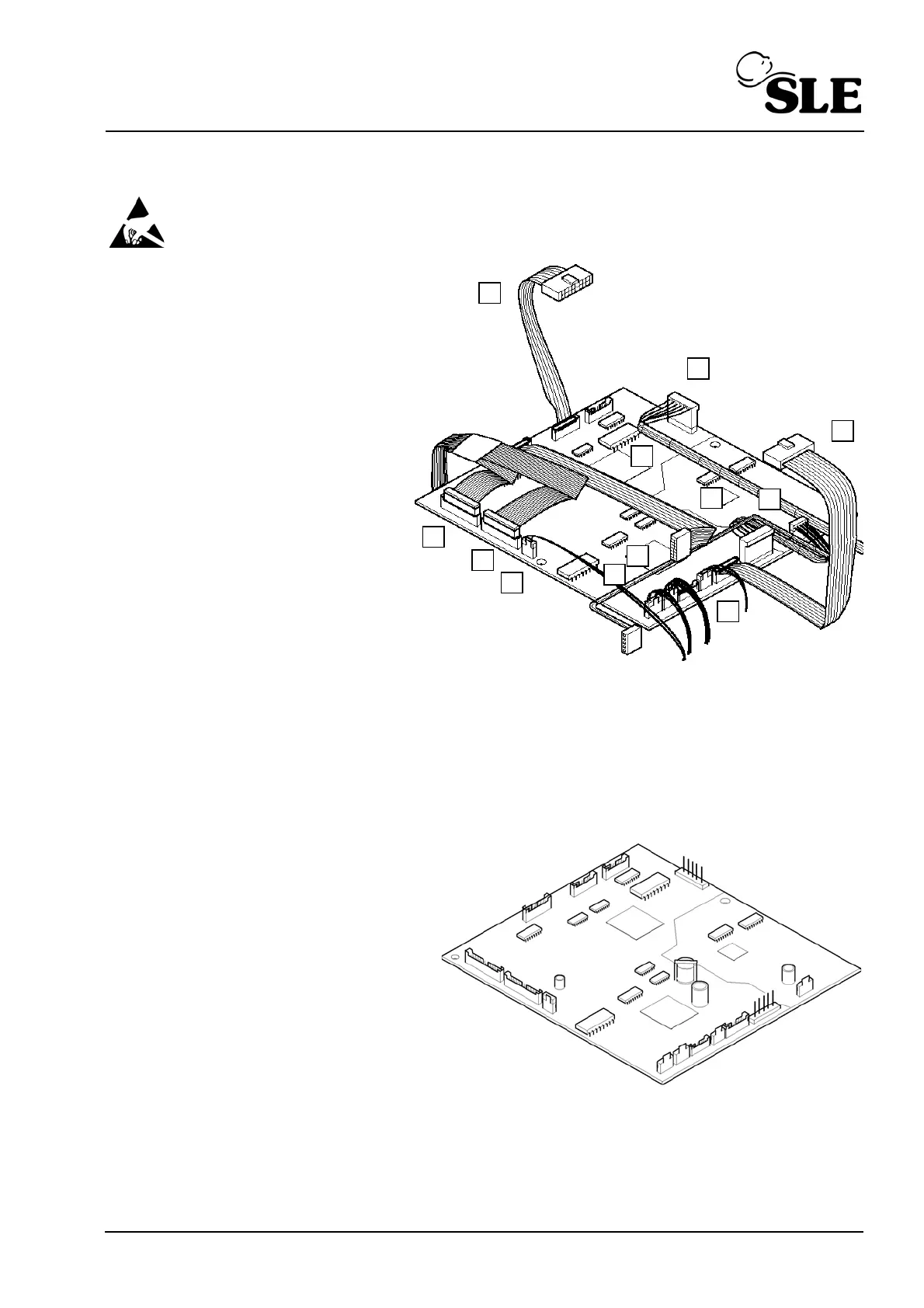

16.4.2 A0763/02/M Control/Monitor Board
Warning: The Control/Monitor Board is a static sensitive device.
1. Disconnect the following cables.
3. CAN card link ribbon cable
controller side (A). (P3)
4.CAN card link ribbon cable
controller side (B). (JP3)
5. Power supply connector
controller side, main loom (C). (P4)
6. Controller to A0761 transducer
assembly ribbon cable (D). (P5)
7. Conventional valve drive ribbon
cable (E). (P6)
8. Analogue valve drive ribbon
cable (F). (P7)
9. Alarm sounder cable, main loom
(G). (JP5)
10. Battery/power supply sensing connector, main loom (H). (JP9)
11. Controller to A0761 transducer assembly connector (I). (JP7)
12. O
2
cell connector (J). (JP8)
13. Power supply connector monitor side, main loom (K). (JP6)
14. Flow sensor connector (L). (JP4)
15. The control and monitor board can
now be removed.

E

F

H

I

J

K

B

C

A
D



G
L
