*The ES layout sequence can be changed by pressing the Rotation button on
the toolbar.

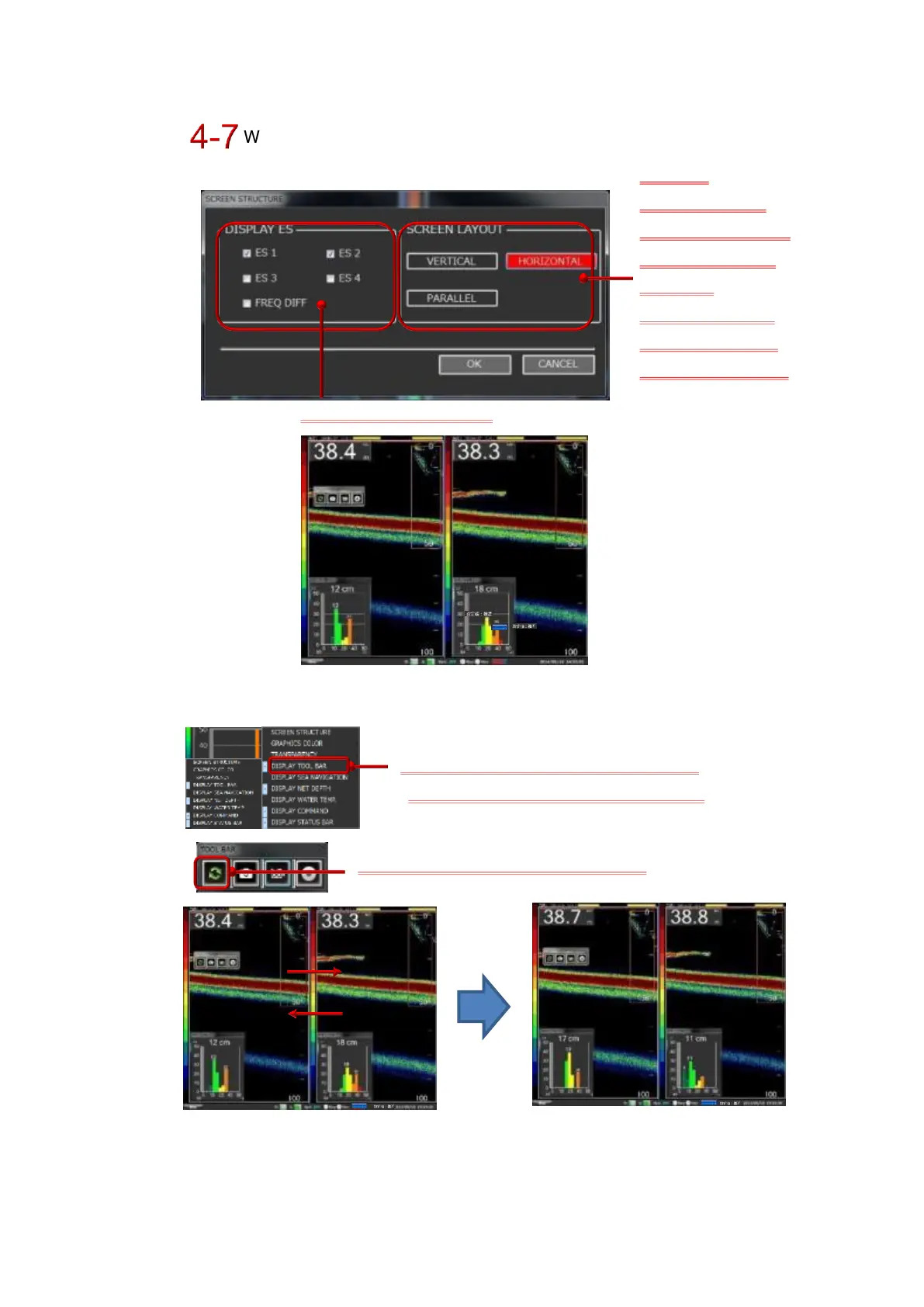

Fig. 2-107 Screen structure setting procedure
When selecting a 2-window screen structure (Two or more
transducers must be connected.)
Select the
HORIZONTAL or
PARALLEL button in
SCREEN LAYOUT.
* Selecting
HORIZONTAL
PARALLEL results in
the same screen layout.
Select any two checkboxes.
Select Display using the menu button, and
then press the L key on the toolbar display.
using the Rotation button.
Note: The fish length graph, TS graph, and trace graph are valid only at
frequencies of 38, 70, and 120 kHz.
