Sonic KSE-310 - Tool

III-145
3-1-5 TOOL
TOOL is used for SERIAL OUTPUT SETTING and LINE MONITOR.

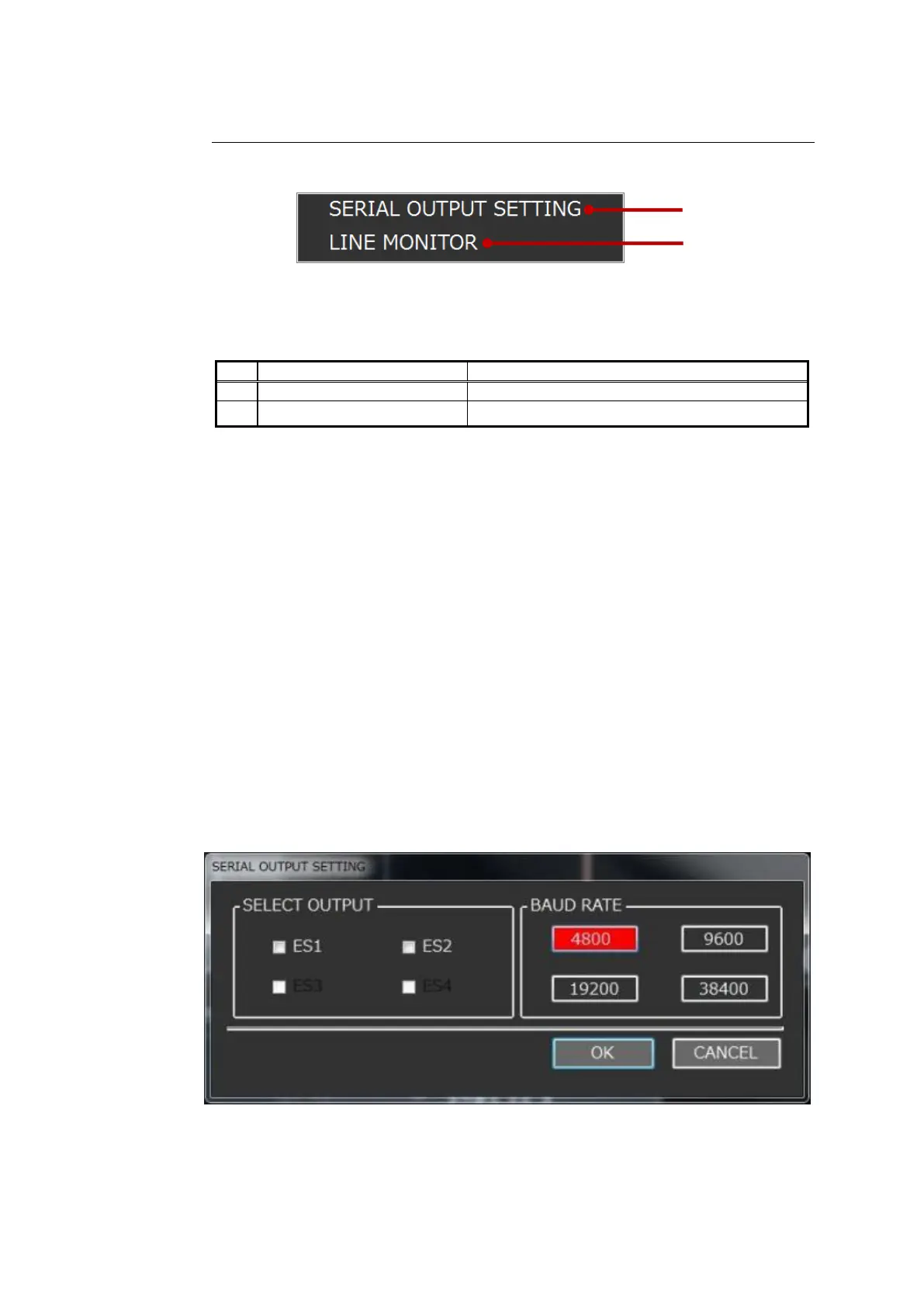

Fig. 3-35 TOOL menus
Table 3-10 Descriptions of the TOOL menu items
No.
Menu Item
Description
1
SERIAL OUTPUT SETTING
For setting the external output by the serial I/F.
2
LINE MONITOR
For monitoring the serial input and output.
SERIAL OUTPUT SETTING
The serial output function outputs the depth and draft information by the serial
I/F.
When serial output is required, enter a checkmark in its checkbox. The
serial output is a function that outputs information about the water
depth, draft, sea bottom SV and the PRF (the time from when the ping
is output until the data is output) by the serial I/F.
To use the serial output, enter a checkmark in the output selection
checkbox to select the desired Echo Sounder. The communication
speed of the data to be output can also be selected from the BAUD
RATE selection box. When 4800, 9600 and 19200 are selected, the
output will be executed every one second and when 38400 is selected,
the output will be executed every ping.
Fig. 3-36 SERIAL OUTPUT SETTING dialog screen
1
2
1
