Sonic KSE-310 - Connecting the es Trigger Output Signals; Standard for es Trigger Output Signals

Ⅲ-IV-20
(2) Soft settings
When the ES output from the dialog box for the receiving settings
indicated in Section 3-2-4 is set to ON, the ES data is output.

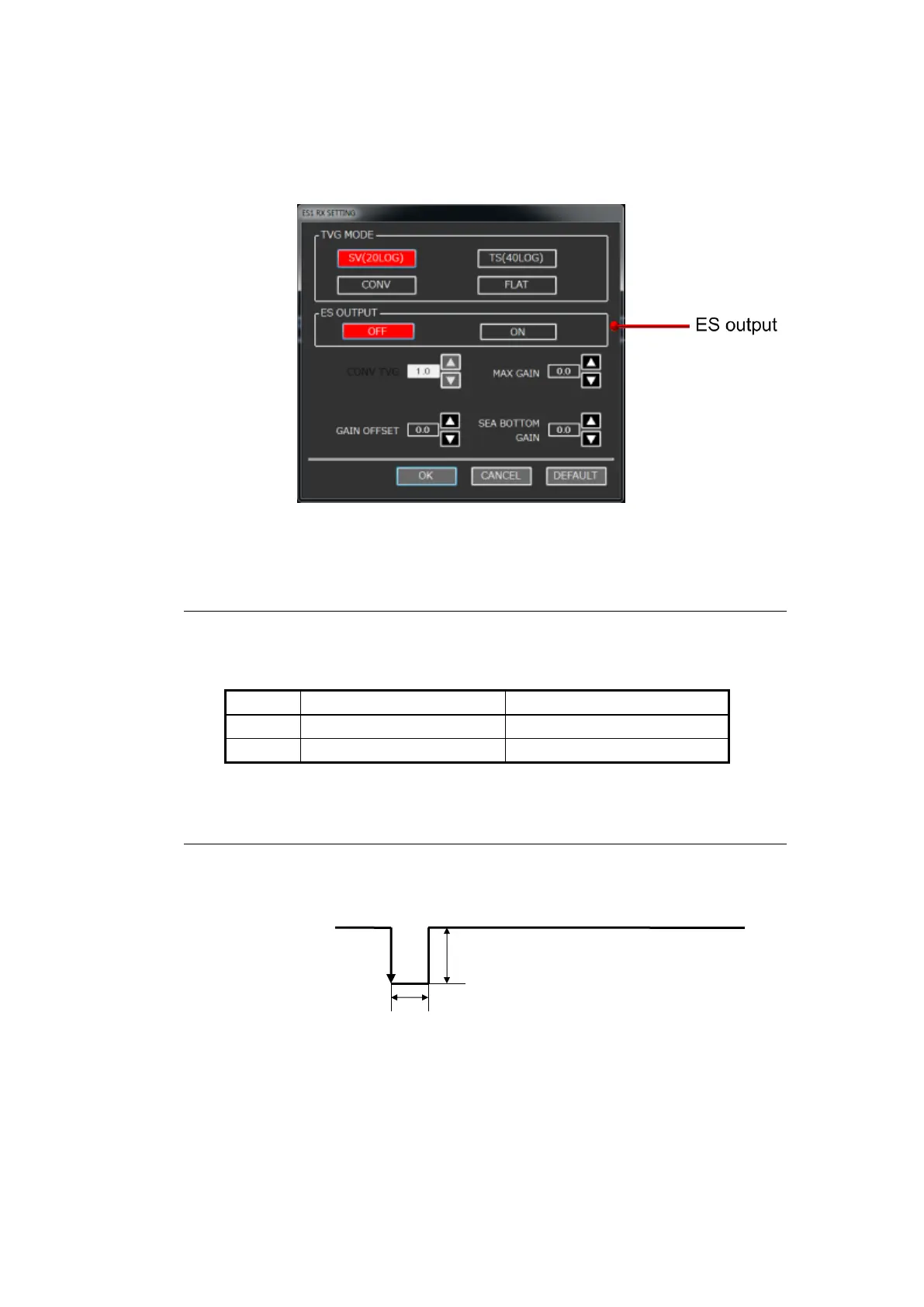

Fig. 4-16 Receiving setting dialog window
4-6-2 Connecting the ES trigger output signals
The ES trigger signal is output from pin Nos. 1/2 of connector J51.
Table 4-21 Connector J51ES trigger output signal connection table
Pin No
Signal name
Signal level
1
TRG_OUT
Level output
2
DGND
GND
4-6-3 Standard for ES trigger output signals
The standard for the ES trigger output signals is shown below.
Fig. 4-17 ES trigger output signal standard
Level： HIGH(5V±0.5V)
LOW(0V±0.5V)
Same as TX pulse
ES trigger output
signal (negative
logic)
