Sonic KSE-310 - Screen Setting

III-151
3-2-1 SCREEN SETTING
GRAPHICS SETTINGSCREEN SETTING can change the ES screen structure.

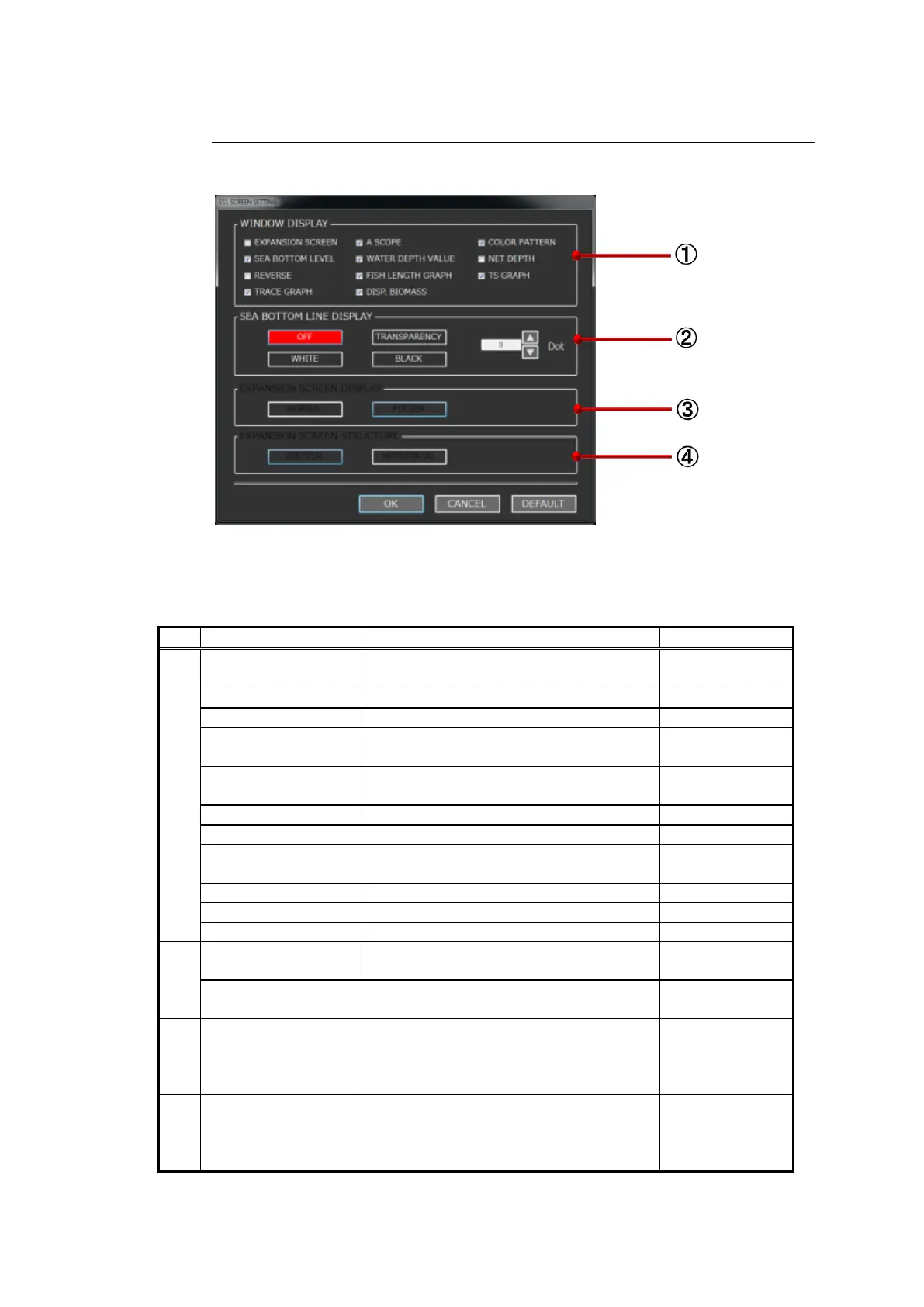

Fig. 3-42 SCREEN SETTING dialog screen
Table 3-14 Descriptions of SCREEN SETTING items
No.
Setting Item
Setting Range
Default
1
EXPANSION
SCREEN
ON/OFF
OFF
A SCOPE
ON/OFF
OFF
COLOR PATTERN
ON/OFF
ON
SEA BOTTOM
LEVEL
ON/OFF
OFF
WATER DEPTH
VALUE
ON/OFF
ON
NET DEPTH
ON/OFF
OFF
REVERSE
ON/OFF
OFF
FISH LENGTH
GRAPH
ON/OFF
ON
TS GRAPH
ON/OFF
OFF
TRACE GRAPH
ON/OFF
OFF
BIOMASS DISPLAY
ON/OFF
OFF
2
SEA BOTTOM
LINE DISPLAY
OFF, TRANSPARENCY, WHITE
and BLACK
OFF
SEA BOTTOM
LINE THICKNESS
1~15
4
3
EXPANSION
SCREEN DISPLAY
NORMAL and SEA BOTTOM FIX
It can be enabled and becomes
selectable only when a checkmark is in
EXPANSION SCREEN.”
SEA BOTTOM
FIX
4
EXPANSION
SCREEN
STRUCTURE
VERTICAL and HORIZONTAL
It can be enabled and becomes
selectable only when a checkmark is in
EXPANSION SCREEN.”
VERTICAL
