Sonic KSE-310 - TRACE GRAPH Setting

II-43
2-11-3 TRACE GRAPH setting
Press the R key on the trace graph display screen to display the GRAPH
SETTING checkbox.
Press the L key here to display the GRAPH SETTING screen.

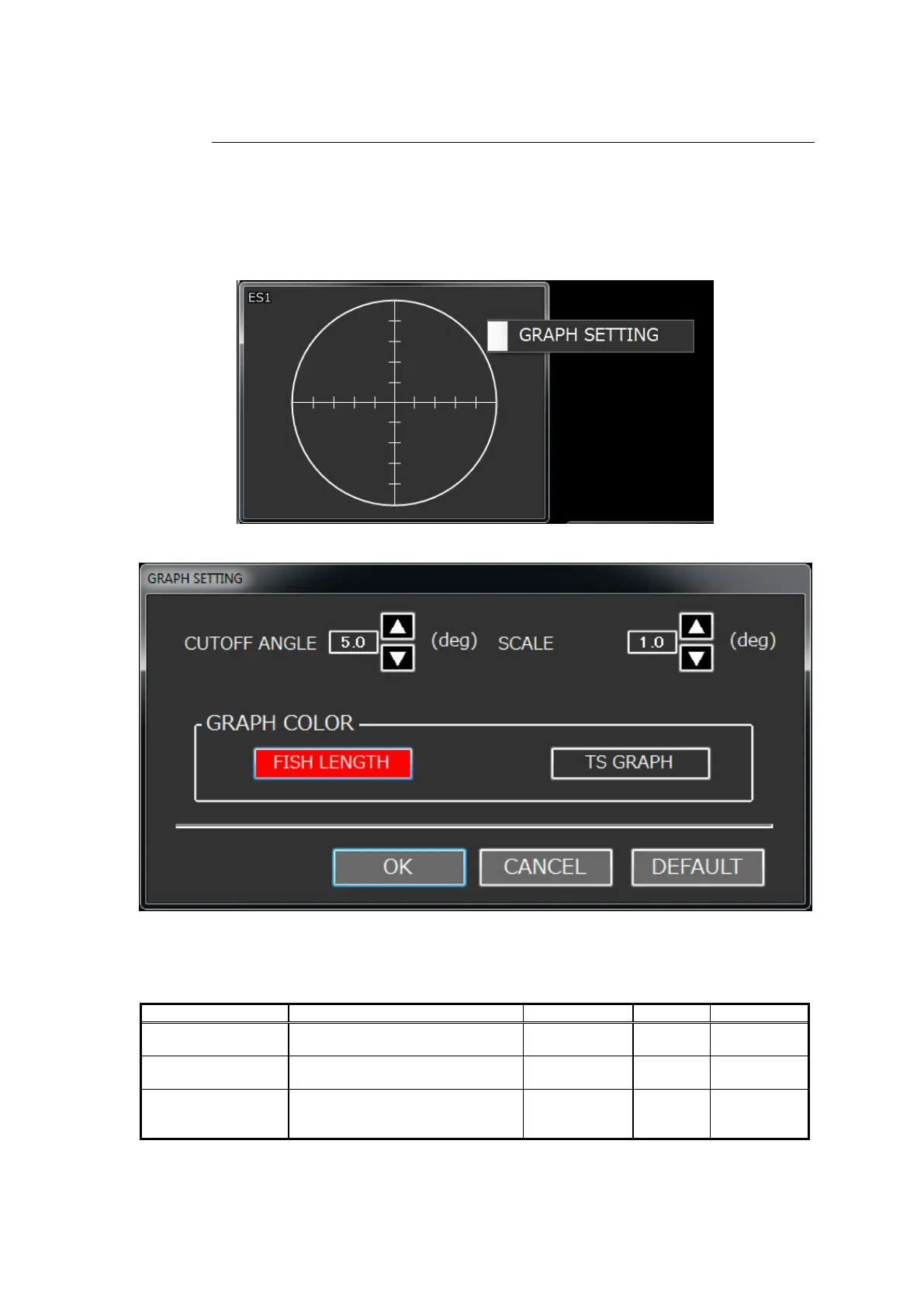

Fig. 2-49 GRAPH SETTING checkbox and GRAPH SETTING screen
Table 2-1 Screen setting items
Setting item
Details
Range
Step
Default
CUTOFF ANGLE
Set the angle of the fish mark
drawing range.
1.0 to 10.0
0.5
5.0
SCALE
Set the scale intervals of the trace
graph.
0.2 to1.0
0.1
1.0
GRAPH COLOR
Select the fish mark color between
the colors of the FISH LENGTH
GRAPH and the TS GRAPH.
FISH LENGTH
GRAPH
TS GRAPH
-
FISH
LENGTH
GRAPH
