II-5
2-5 RANGE and SHIFT + Manual/Auto

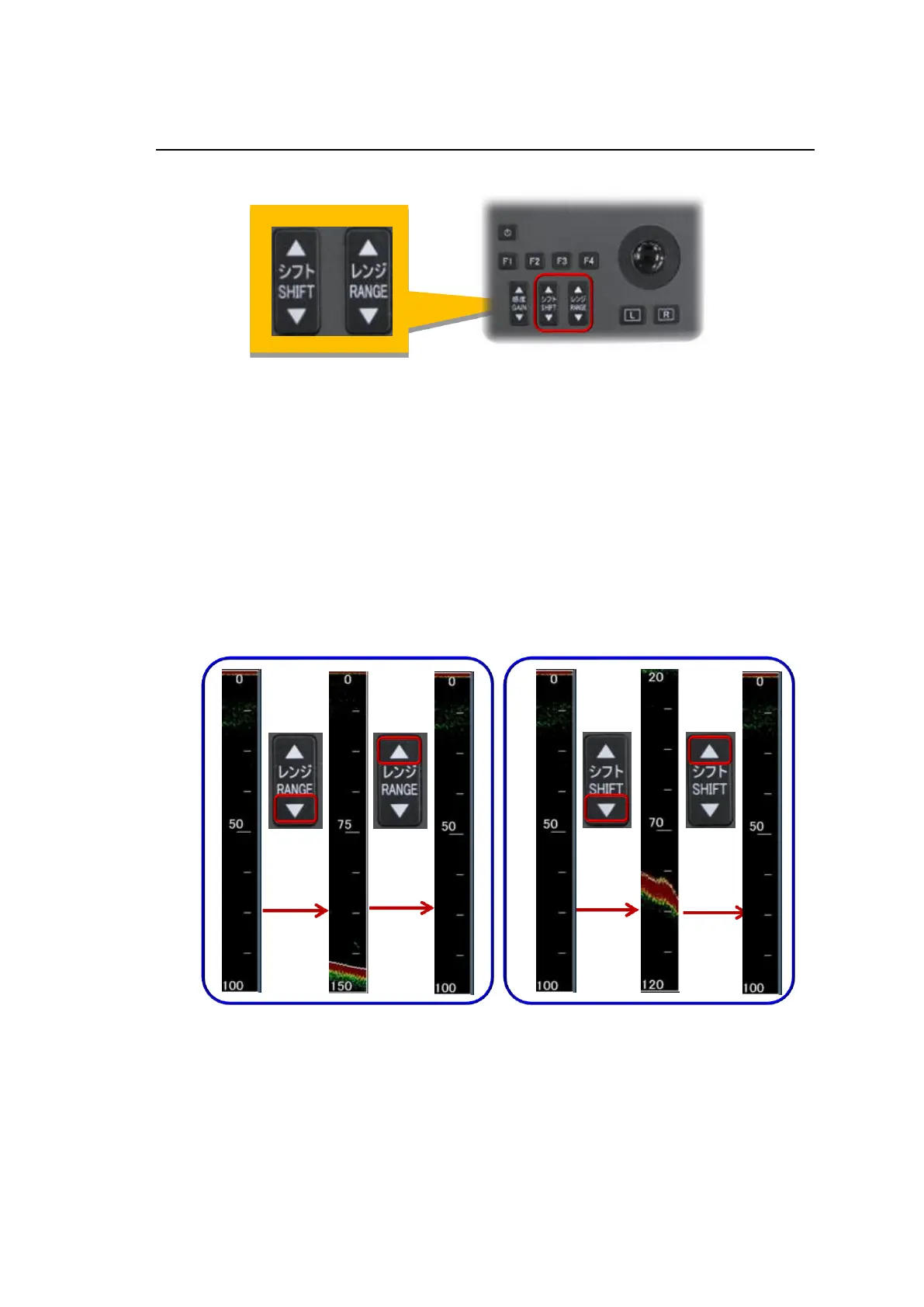

Fig. 2-8 RANGE and SHIFT on the controller
The range change and shift change are enabled only when the pointer is
displayed on the ES display area. Use the RANGE key and shift key shown in
Fig. 2-8.
For changing the range, press △ on the RANGE key to decrease the range,
and press ▽ to increase the range. (Fig. 2-9)
For changing the shift, press △ on the SHIFT key to decrease the depth
displayed at the start. Press ▽ to increase the depth displayed at the start. (Fig.
2-10)
How to change the settings of the range and shift is described in Chapter 3.
Fig. 2-9 An example of the range change Fig. 2-10 An example of the shift change
