LINE MONITOR
Using LINE MONITOR, the NMEA input and output data can be displayed
simultaneously on the screen in ASCII and BINARY. This function is used to
check whether navigation information is entered or not.
The LINE MONITOR screen is composed of the transmission screen (PRC →
external equipment) in the upper part of the screen and the reception screen
(external equipment → PRC) in the lower part of the screen.
Press the start button to start the display of the LINE MONITOR. Press the stop
button to close the display of the LINE MONITOR.
Press “X” button to close the close the LINE MONITOR screen.
Fig. 3-37 shows an example of the LINE MONITOR screen.

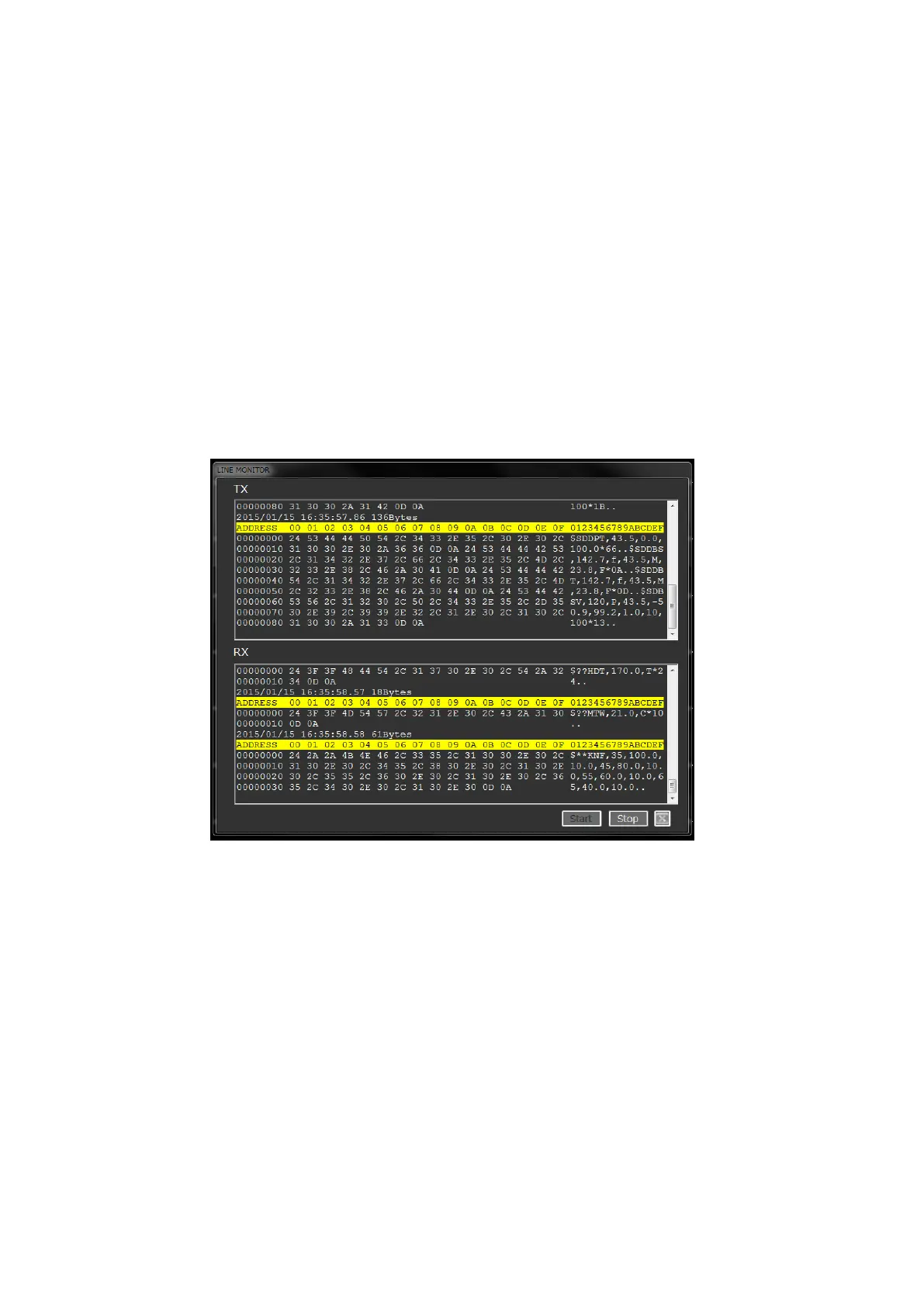

Fig. 3-37 Example of LINE MONITOR screen
