COMMON ES SETTING
COMMON ES SETTING is for setting the entire ES items such as SYNC setting
and scale setting.

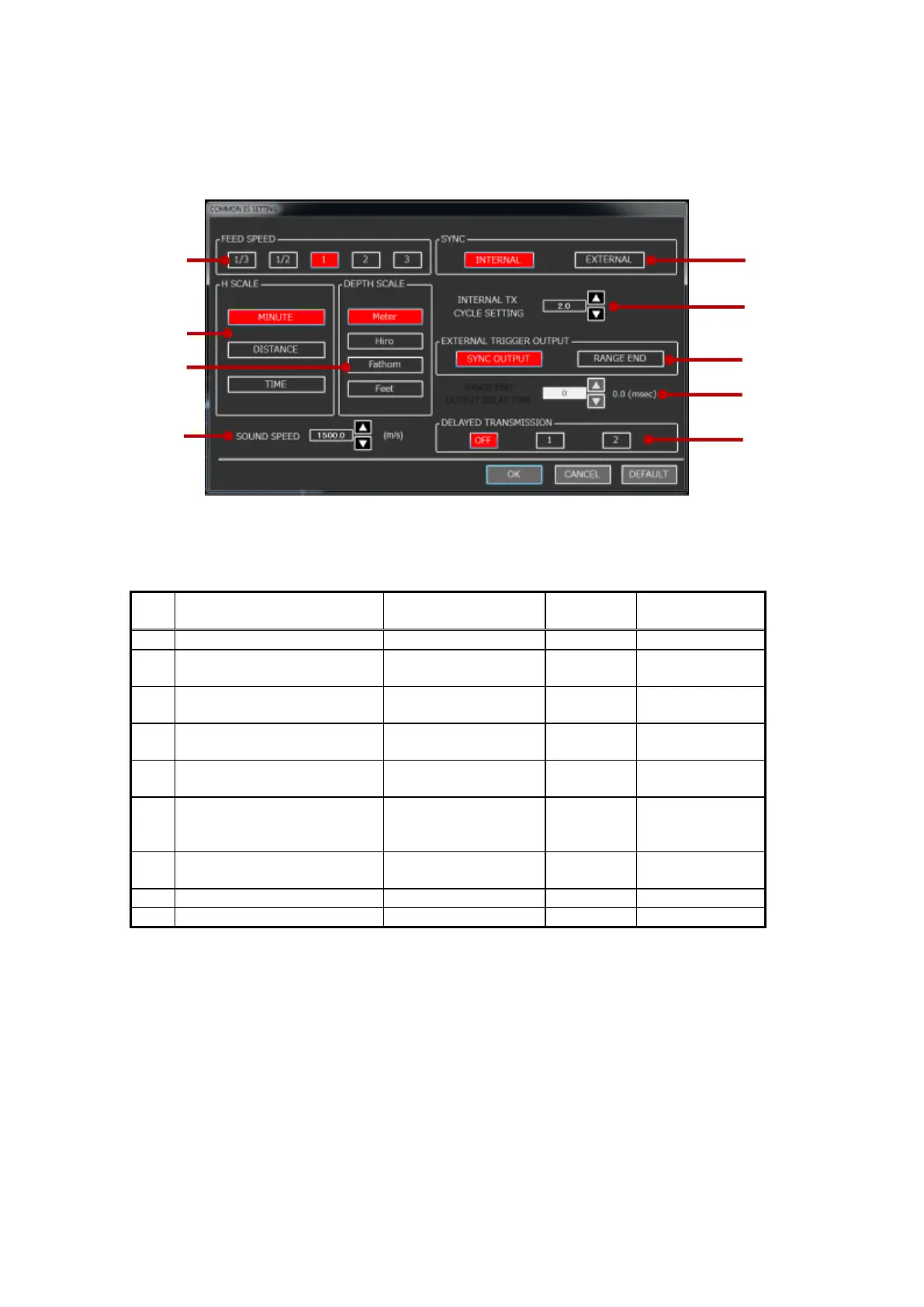

Fig. 3-19 COMMON ES SETTING screen
Table 3-4 Descriptions of COMMON ES SETTING Items
No.
Setting item
Setting Range
Step
Range
Default
1
FEED SPEED
1/3, 1/2 , 1, 2 and 3
-
1
2
H SCALE
MINUTE, DISTANCE
and TIME
-
MINUTE
3
DEPTH SCALE
Meter, Hiro,
Fathom and Feet
-
Meter
4
SYNC
INTERNAL and
EXTERNAL
-
INTERNAL
5
INTERNAL TX CYCLE
SETTING
2.0 to 5.0
0.1
2.0
6
EXTERNAL TRIGGER
OUTPUT
SYNC OUTPUT,
RANGE END
OUTPUT
-
SYNC OUTPUT
7
RANGE END OUTPUT
DELAY TIME
0 - 9
1
0
8
DELAYED TRANSMISSION
OFF, 1 and 2
-
OFF
9
SOUND SPEED
1400.0 -1600.0
0.1
1500.0
1
(4)
(5)
(6)
(7)
(1)
(2)
(3)
(8)
(9)
