Table 4-4 Explanation of the DELAYED TRANSMISSION mode
No.
DELAYED
TRANSMISSION
Explanation
1
OFF
The INTERNAL TX mode is operated at cycles of
“RANGE x INTERNAL TX CYCLE SETTING.”
2
1
The INTERNAL TX mode is delayed for 30/60ms.
3
2
The INTERNAL TX mode is delayed for 0/30/60ms.

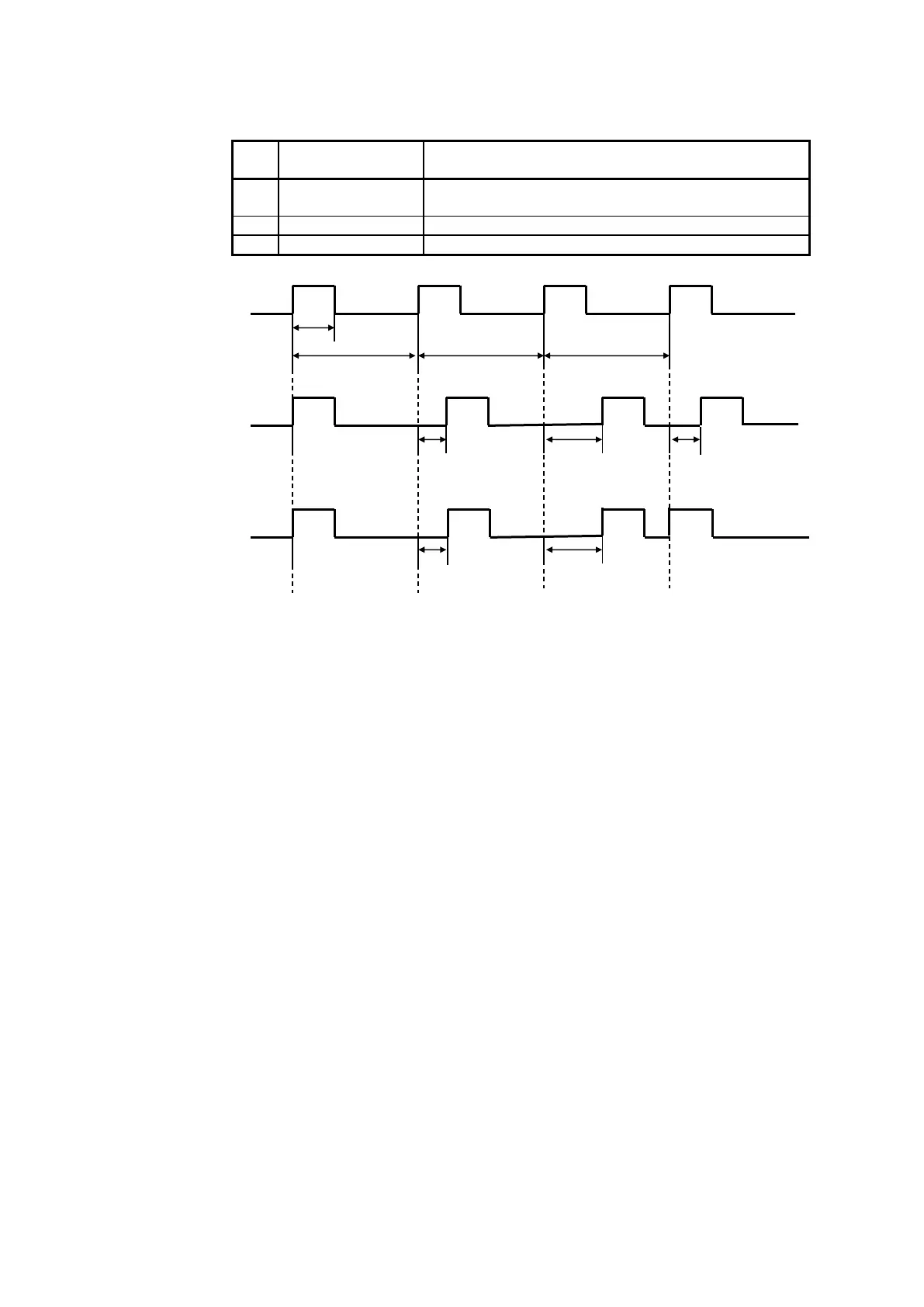

Fig. 4-4 DELAYED TRANSMISSION timing
DELAYED TRANSMISSION OFF
RANGE
RANGE x INTERNAL
TX CYCLE SETTING
DELAYED TRANSMISSION 1
30ms
60ms
DELAYED TRANSMISSION 2
30ms
RANGE x INTERNAL
TX CYCLE SETTING
RANGE x INTERNAL
TX CYCLE SETTING
30ms
60ms
