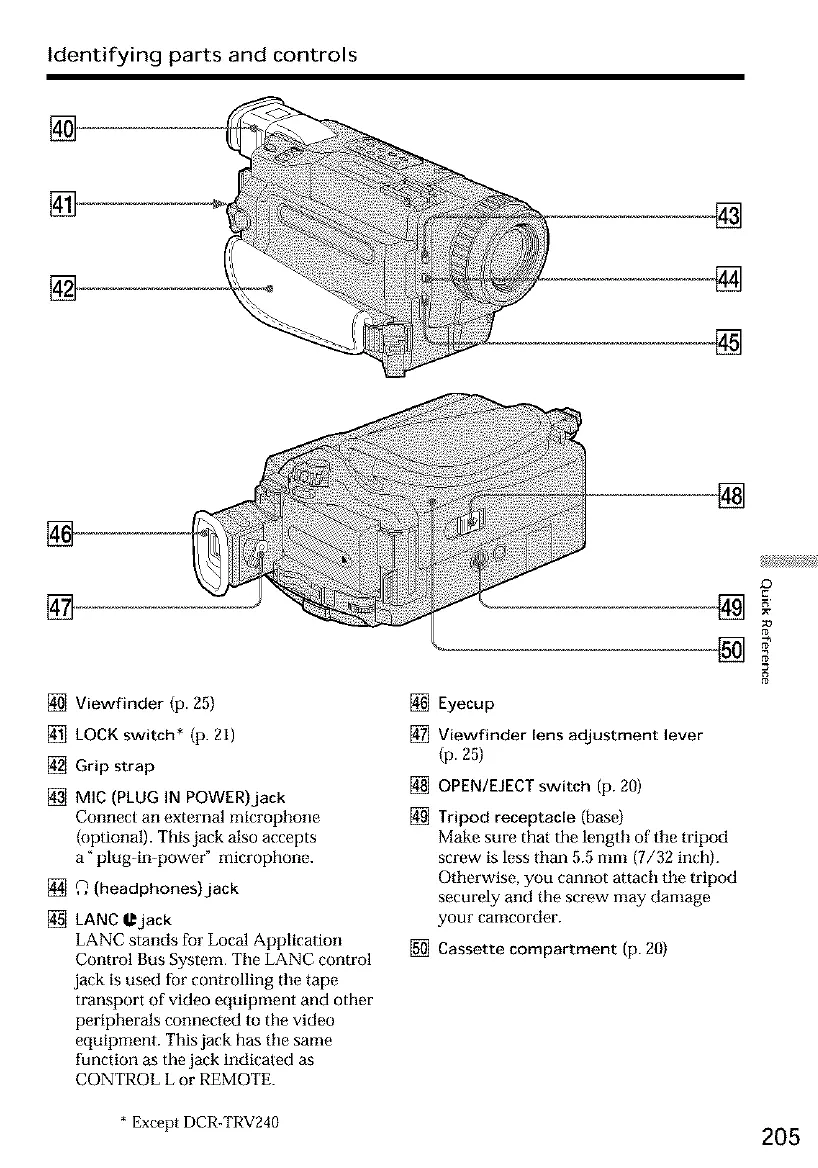

Identifying parts and controls
[]
[]
[]
[]
[]
[] Viewfinder (p. 25)
[] LOCK switch* (p. 21)
[] Grip strap
[] MIC (PLUG IN POWER)jack
Connect an external microphone
(optional). This jack also accepts
a" plug-in-power" microphone.
[] _ (headphones)jack
[] LANC U jack
LANC stands fer Local Application
Control Bus System. Tile LANC control
jack is used for controlling tile tape
transport of video equipment and other
peripherals connected to the video
equipment. This jack has the same
function as the jack indicated as
CONTROL L or REMOTE.
[]
[]
[]
[]
[]
D
Eyecup
Viewfinder lens adjustment lever
(p. 25)
OPEN/EJECT switch (p. 20)
Tripod receptacle (base)
Make sure that the length of tile tripod
screw is less than 5.5 mm (7/32 inch).
Otherwise, you cannot attach tile tripod
securely and the screw may damage
your camcorder.
[] Cassette compartment (p. 20)
rD
* Except DCR-TRV240 205
