17
3 Device Installation
Note: All of the installation and operations here should conform to your local electric safety rules.
3.1 Check Unit
After unpacking the unit, please check for any visible damage. Then check to make sure that all
accessories are included.
3.2 Product Label
Check that the model number and serial number that’s listed on the label on the unit are the same as
what’s listed on the package label.
3.3 Connection
3.3.1 Example

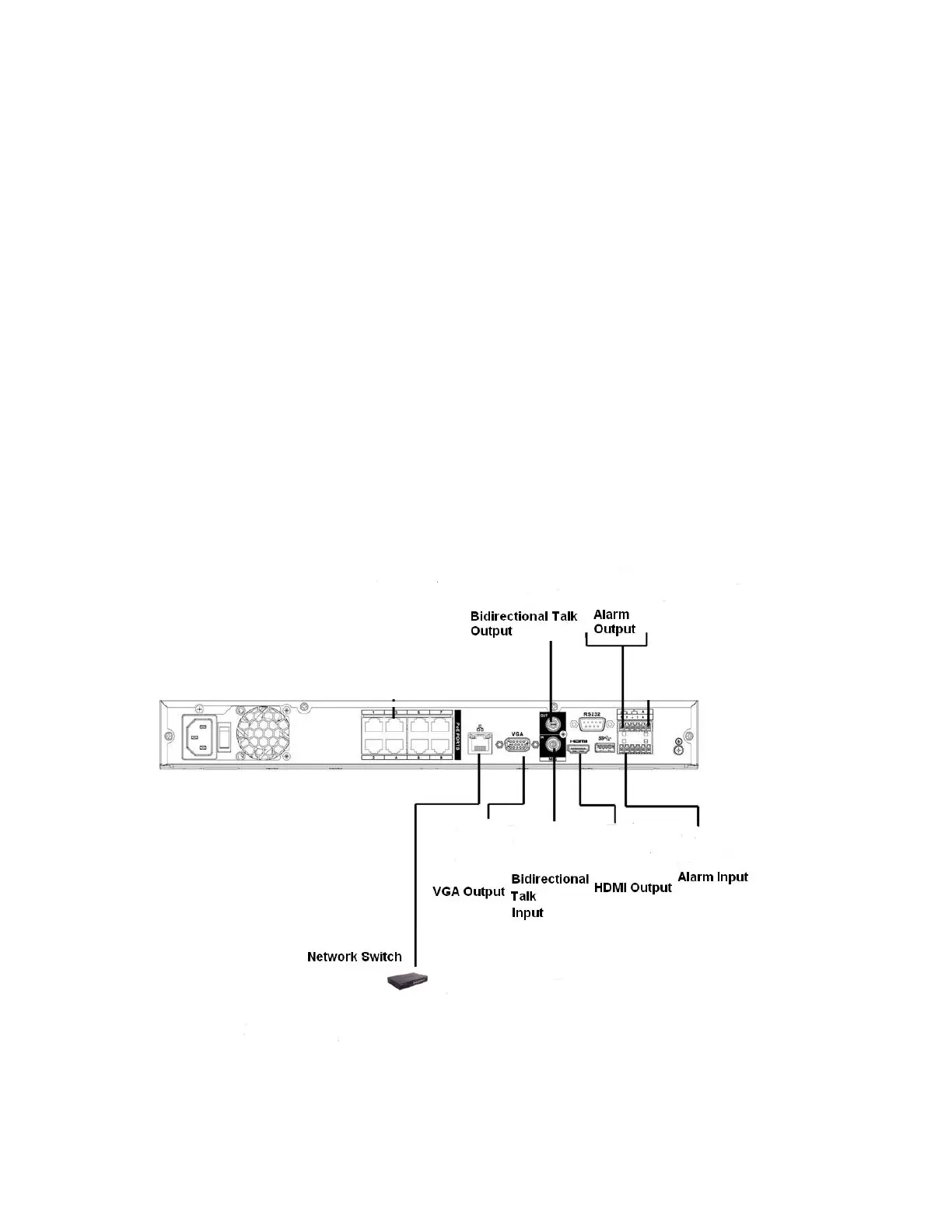

Please refer to Figure 3-1 for a connection example.
The 8-channel unit is shown below.
Figure 3-1
