2 Front Panel and Rear Panel
2.1 Front Panel
2.1.1 NXP Series

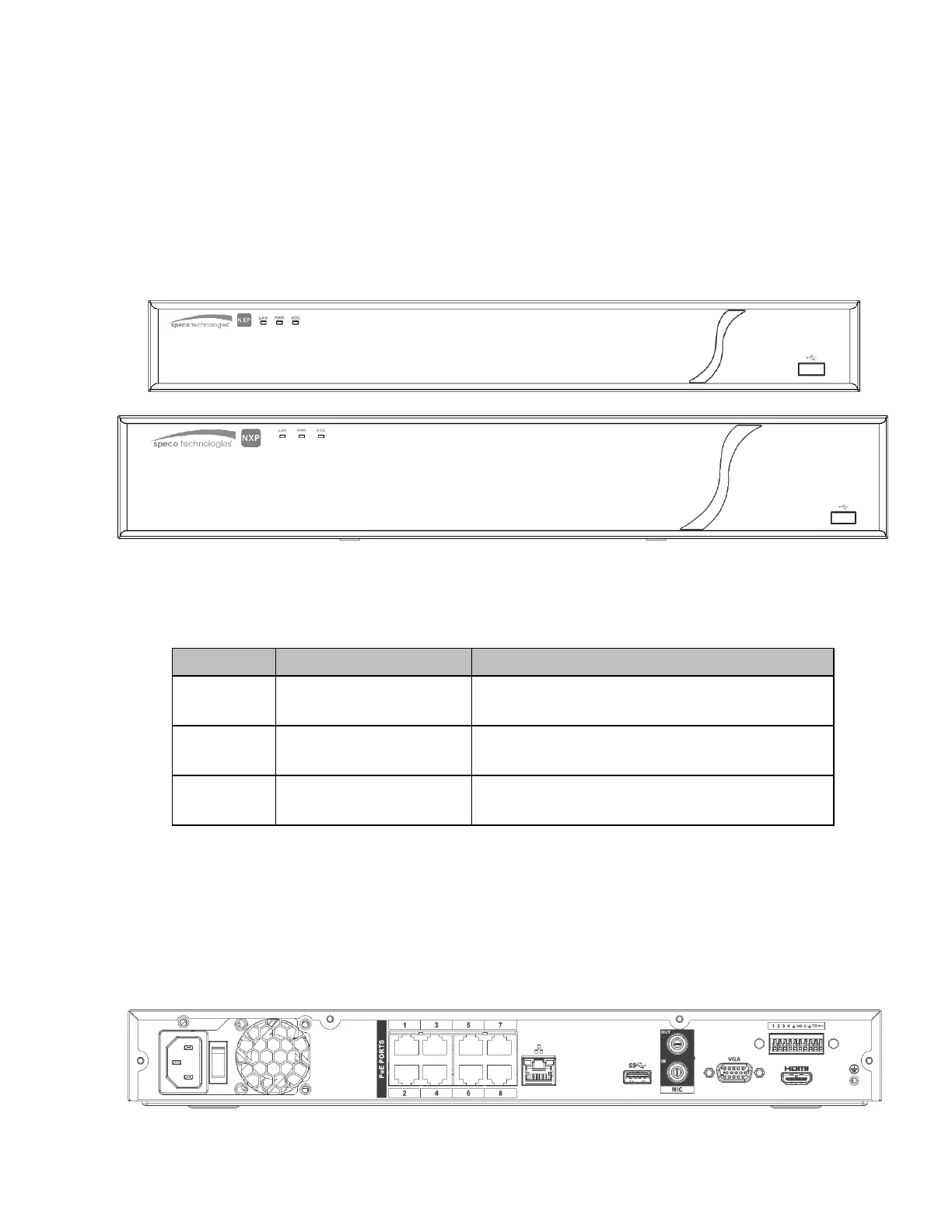

The NXP front panels are shown below. See Figure 2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
Icon
Name
Function
LAN
Network status
indicator
Blue indicator is on when connected to a
network
PWR
Power indicator
Blue indicator is on when power is operating
normally
HDD
HDD status indicator
Blue indicator is on when the hard drive is
operating normally
2.2 Rear Panel
2.2.1 NXP Series
The 8ch unit’s rear panel is shown below in Figure 2-2.
Figure 2-2
