RM0440 Rev 4 1135/2126
RM0440 Advanced-control timers (TIM1/TIM8/TIM20)
1226

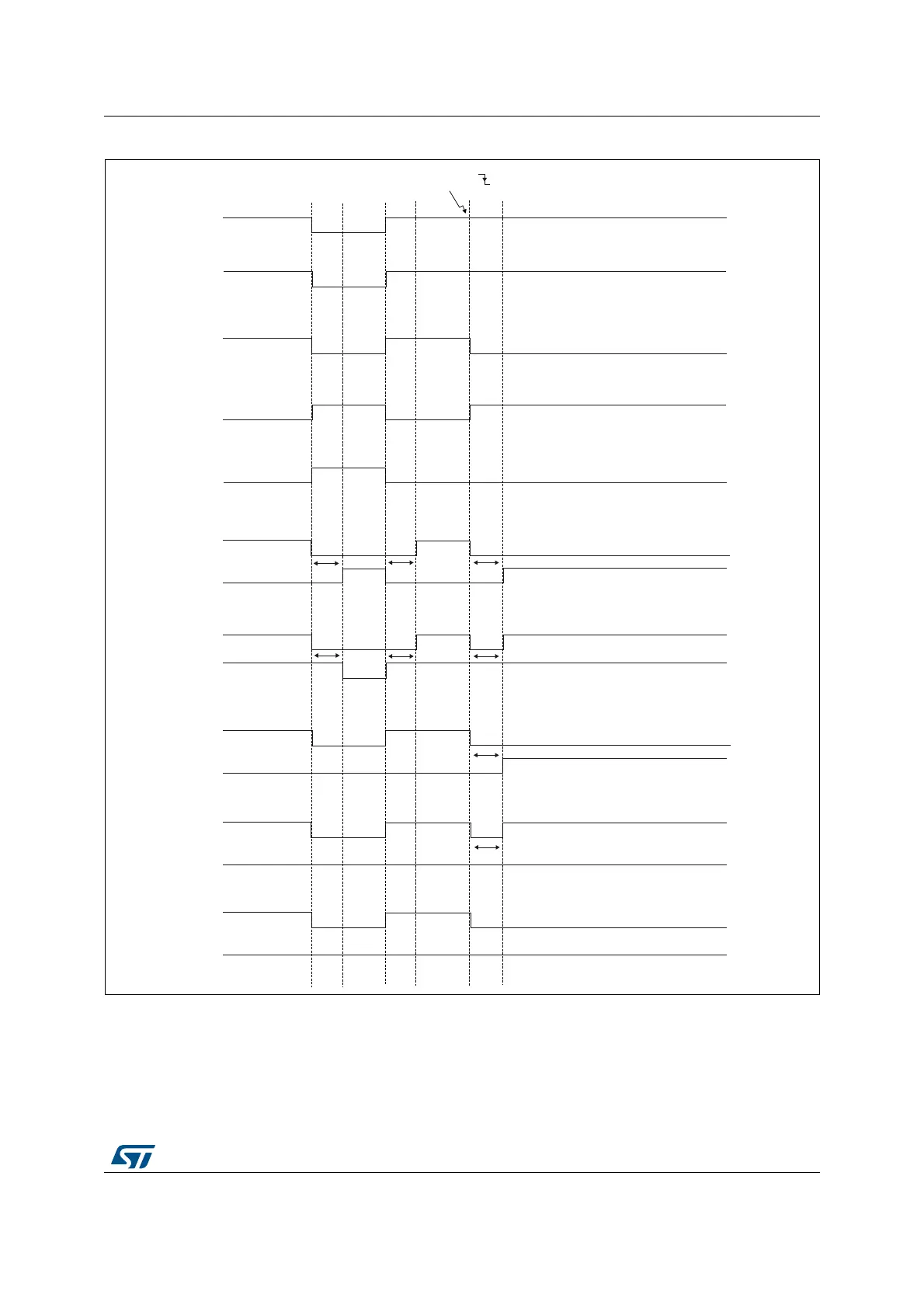

Figure 317. Various output behavior in response to a break event on tim_brk (OSSI = 1)
The two break inputs have different behaviors on timer outputs:
– The tim_brk input can either disable (inactive state) or force the PWM outputs to a
predefined safe state.
– tim_brk2 can only disable (inactive state) the PWM outputs.
MSv62337V1
delay delay delay
delay delay delay
delay
delay
tim_ocxref
tim_ocx
(tim_ocxn not implemented, CCxP=0, OISx=1)
tim_ocx
(tim_ocxn not implemented, CCxP=0, OISx=0)
tim_ocx
(tim_ocxn not implemented, CCxP=1, OISx=1)
tim_ocx
(tim_ocxn not implemented, CCxP=1, OISx=0)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, OISx=0, CCxNE=1, CCxNP=0, OISxN=1)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, OISx=1, CCxNE=1, CCxNP=1, OISxN=1)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, OISx=0, CCxNE=0, CCxNP=0, OISxN=1)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, OISx=1, CCxNE=0, CCxNP=0, OISxN=0)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, CCxNE=0, CCxNP=0, OISx=OISxN=0 or OISx=OISxN=1)
BREAK (MOE )
