STEP AS380 Series User Manual

Instruction Manual for AS380 Series Elevator Integrated Drive Controller
Chapter 6 Introduction to the supporting products
111

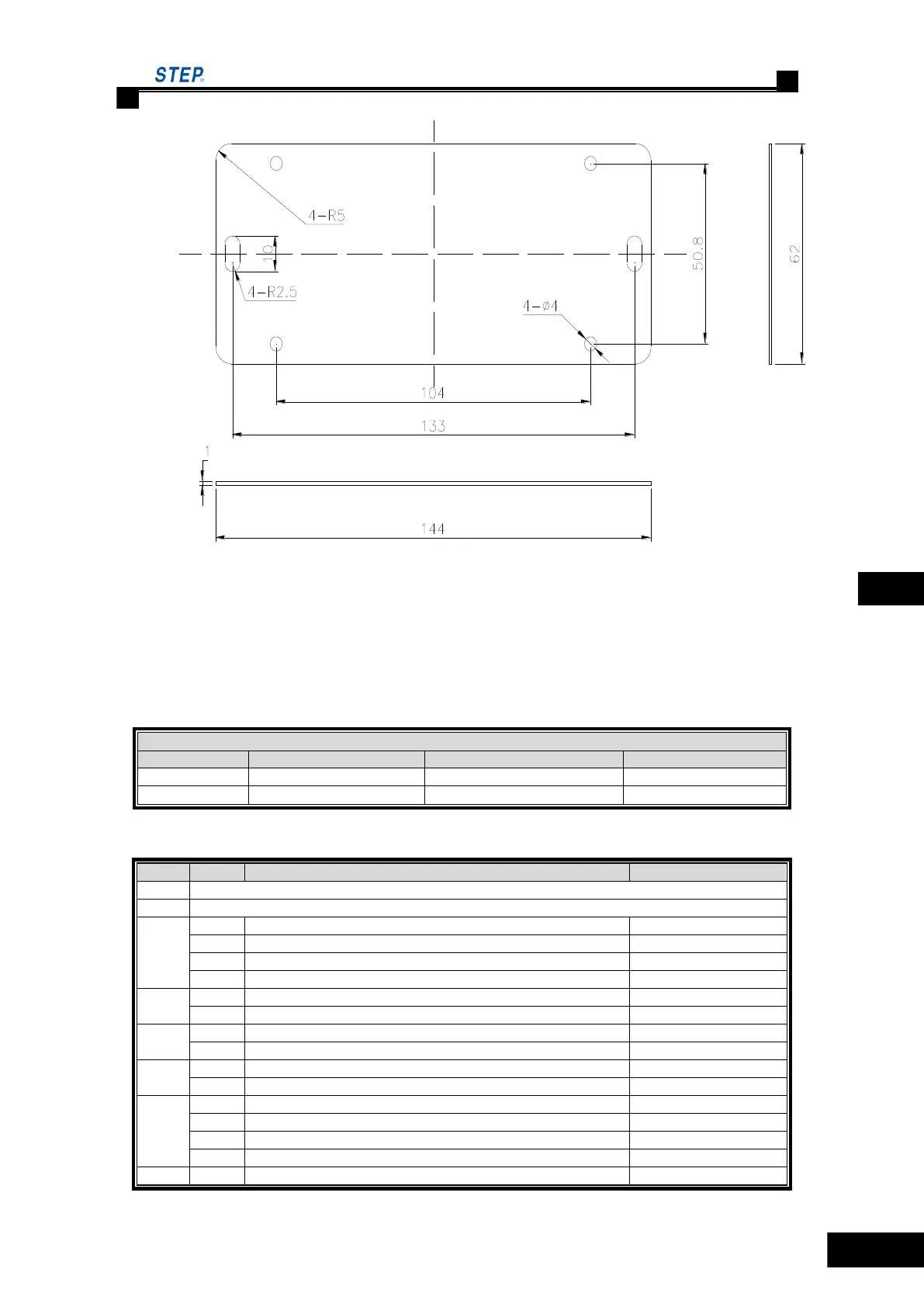

Fig 6.4 car top extension board installation dimension
6.2.2 car top extension board SM09IO/B plug-in and port
definition introduction
Table 6.3 car top extension board SM09IO/B plug in specification
Table 6.4 SM09IO/B input /output port definition when using as car top extension board
Port
Point
Definition
Remark
JP1
Connecting car top board SM.02/H
JP2
Connecting car top extension board
JP6
1
Output HY6，rear door open signal output
2
Output HY7，rear door close signal output
3
Output HY8，rear door nudging output
4
Output JP6.1-JP6.3 common port
JP7
1
Output HY9，door open signal output
2
Output JP7.1 common port
JP8
1
Output HY10，door close signal output
2
Output JP8.1 common port
JP9
1
Output HY11，door nudging output
2
Output JP9.1 common port
JP3
1
Input HX7，rear door open in place
Default NC
2
Input HX8 rear door close in place
Default NC
3
Input HX9， rear door light curtain
Default NO
4
Input power，need to connect switch power supply+24V
JP4
1
Input HX10，rear door safety edge
Default NO
Car top extension board
Socket No
Model
Socket No
Model
JP1/JP2
IDC-14P
JP4
5.08-3P-V-green
JP3/JP6
5.08-4P-V-green
JP5/JP7/JP8/JP9
5.08-2P-V-green
