STEP AS380 Series User Manual

Shanghai STEP Electric Corporation
56
Chapter 4 The Wiring Of Elevator integrated Drive Controller
Name
Pin No.
Label
Function
Specification
JP2.6
Z-
Phase Z signal - of encoder power
JP2.7
V＋
Positive pole of encoder power
Voltage: 5VDC, Max output current: 500mA
JP2.8
V-
Negative pole of encoder power
JP2.9
PE
Shielded ground
Grounding terminal for shielded cable
4.7.4 PG card – Endat with absolute value
Endat absolute card (AS.L06/L) can receive Endat signals from encoder. It can talk to Endat
Absolute Encoder, like Heidenhain encoder model 1313, or 413.
4.7.4.1 Line-up terminal for Endat absolute PG card

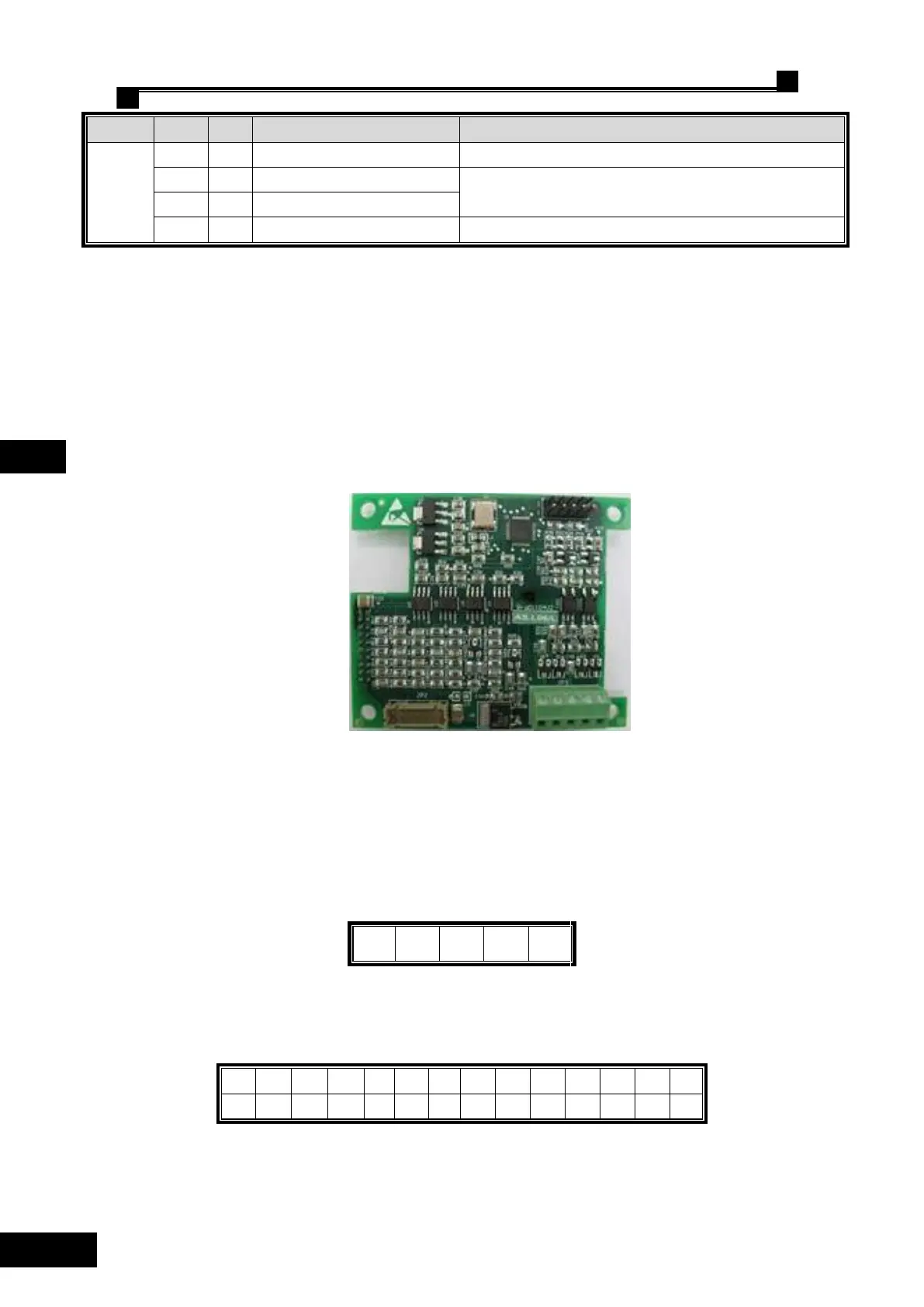

Terminal line up for Endat absolute PG card (AS.L06/L), see Fig. 4.33.
Fig. 4.33 Terminal line up for Endat absolute PG card
4.7.4.2 Endat absolute PG card terminal label
Terminal label for Endat absolute PG card is as follows:
JP3 terminal:
FA
V0
FB
V0
12V
Fig. 4.34 The connection terminal JP3 lables of the endat absolute PG card
JP2 terminal (14 pin socket):
1
2
3
4
5
6
7
8
9
10
11
12
13
14
NC
NC
NC
NC
B-
B+
A-
A+
D-
D+
C-
C+
0V
V+
Fig. 4.35 The connection terminal JP2 lables of the endat absolute PG card
