STEP AS380 Series User Manual

Instruction Manual for AS380 Series Elevator Integrated Drive Controller
Chapter 5 Operator
79

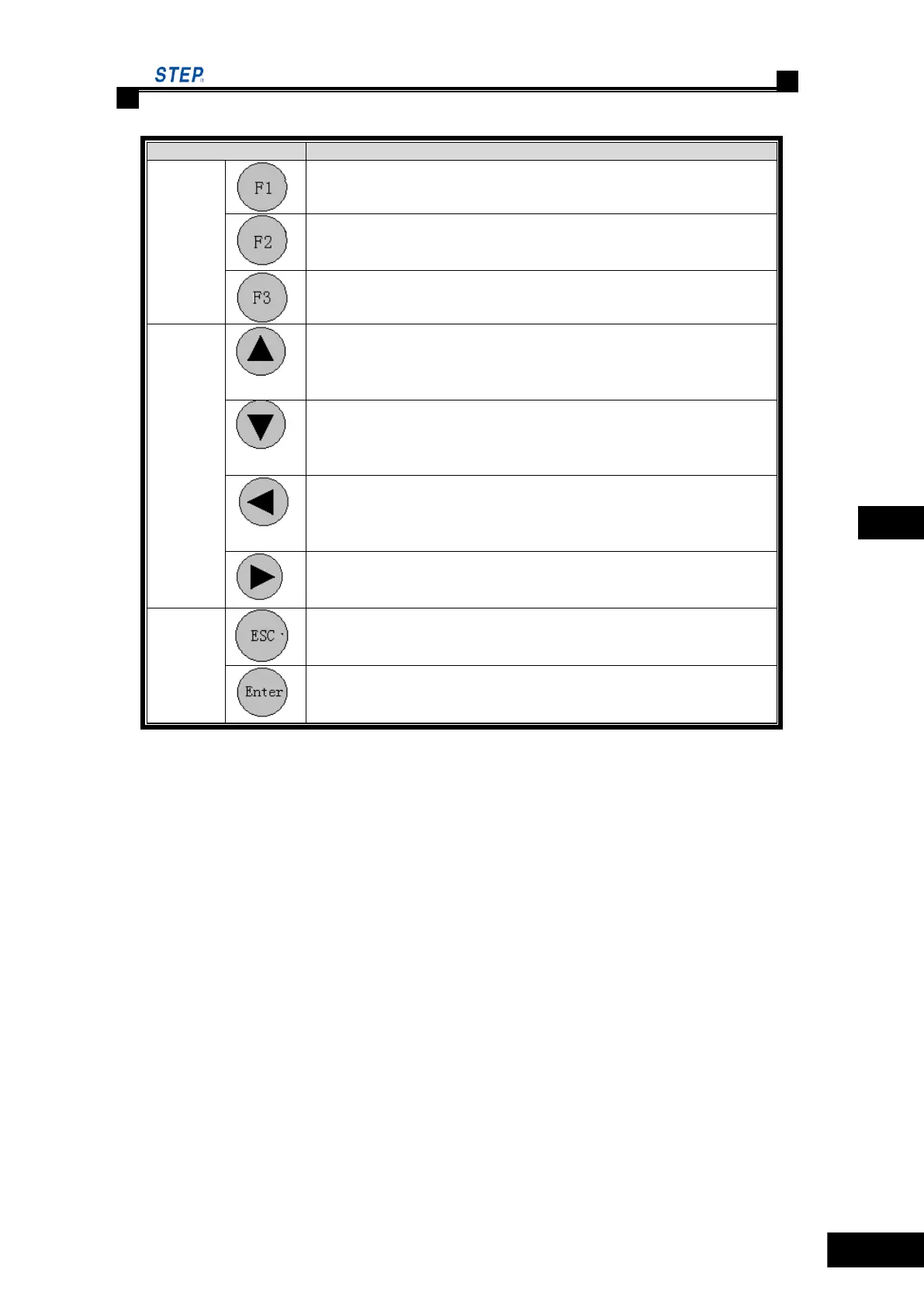

Key
Function
Shortcut
key
1. Return to elevator status interface when it is not in status interface
2. Enter fault inquiry interface from elevator status interface
1. Return to elevator status interface from fault inquiry interface
2. Enter when elevator status interface display
3. Enter the car call interface when I/O status check interface display
Enter speed curve window
Direction
key
1.Move up by one item in function selection
2.Increase 1 of the present data in data input
3.Move up by 16 items
4.Set ON or OFF status when bit setting.
1.Move down by one item in function selection
2.Decrease 1 of the present data in data input
3.Move down by 16 items for selecting bit parameter
4.Set ON or OFF status when bit setting
1.Move up by 10 items in function selection
2.Move cursor left for data input
3.Move left by 1 item for bit setting
1.Move down by 10 items for function selection
2.Move right for data input
3.Move right by one item for bit setting
Function
key
1.Return to previous menu
2.Cancel data input
1.Enter function selection
2. Enter edit status when viewing data
2.Save data input
5.2.4 Introduction to display interface of LCD hand-held
operator
5.2.4.1 display interface classification
The below table show several mina display interface of handheld operator.
