STEP AS380 Series User Manual

Instruction Manual for AS380 Series Elevator Integrated Drive Controller
Chapter 1 General knowledge of the integrated drive controller
5
Integrated
inverter model
AS380-
Adaptive
motor (Ω)
Min. Value
(Ω)
Max. value
(Ω)
Recommend
ed value (Ω)
Total power of recommended
resistor (W)
Synchronous
Asynchronous
2T0015
15
4
8
6
6300
5300
2T18P5
18.5
4
6
4
7800
6500
2T0022
22
4
6
4
9300
7700
400V integrated inverter
4T02P2
2.2
56
210
100
1000
1000
4T03P7
3.7
56
144
80
1600
1200
4T05P5
5.5
56
100
70
2000
1600
4T07P5
7.5
56
72
64
3200
2000
4T0011
11
34
48
40
4000
3200
4T0015
15
34
41
36
5000
4000
4T18P5
18.5
17
31
24
6400
5000
4T0022
22
17
27
20
8000
6400
1.6.2 Absorber at the output side prohibited
Since the output of integrated drive controller is impulse wave, installation of power
factor-improving capacitor or piezoresistor for lightning protection at output side will cause the
fault tripping or component damage of integrated drive controller.
The above issue must be taken full consideration in designing. If conducting used elevator
renovation, the capacitor or piezoresistor previously connected to the circuit output side must be
removed.

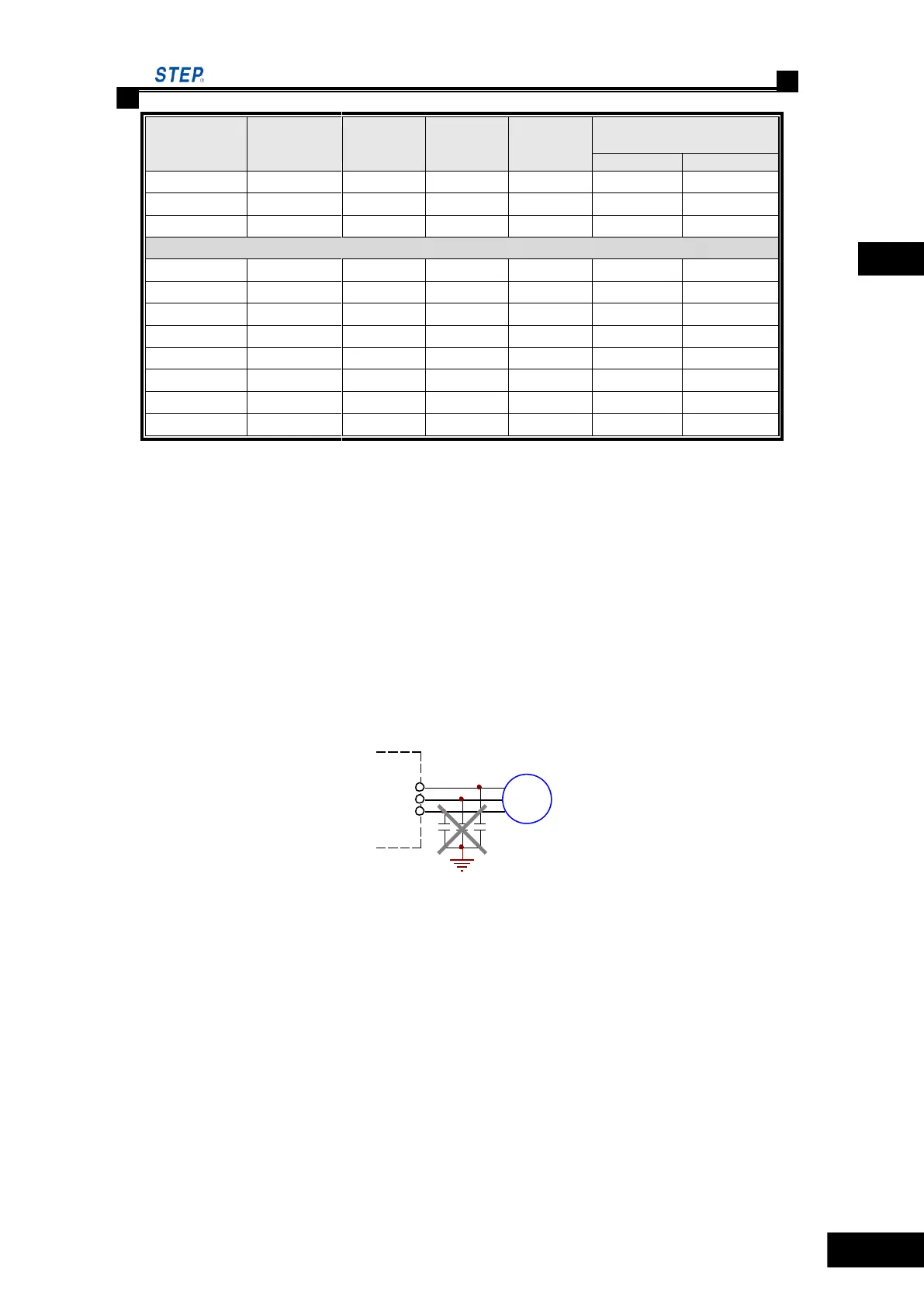

The Fig 1.3 is the illustration of no capacitor connecting to the output side of integrated drive
controller
V
U
W
M
Fig 1.3 the illustration of no capacitor connecting to the output side of integrated drive controller
1.6.3 The application voltage of integrated device.
AS380 series integrated drive controller is only applicable to working within the scope of
its rated voltage. If the power voltage and its rated voltage are not in conformity, voltage regulator
is required for voltage transformation.
1.6.4 Two-phase input not allowed
It is no appropriate to change the three-phase input into two-phase input. Otherwise, faults
will occur.
