STEP AS380 Series User Manual

Instruction Manual for AS380 Series Elevator Integrated Drive Controller
51
Chapter 4 The Wiring Of Elevator integrated Drive Controller
Push-pull output
VCC
0V
A
B
A-
B-
A+
B+
A
PG card terminal
block
+5V
Shielded cable
grounding
V+
V-

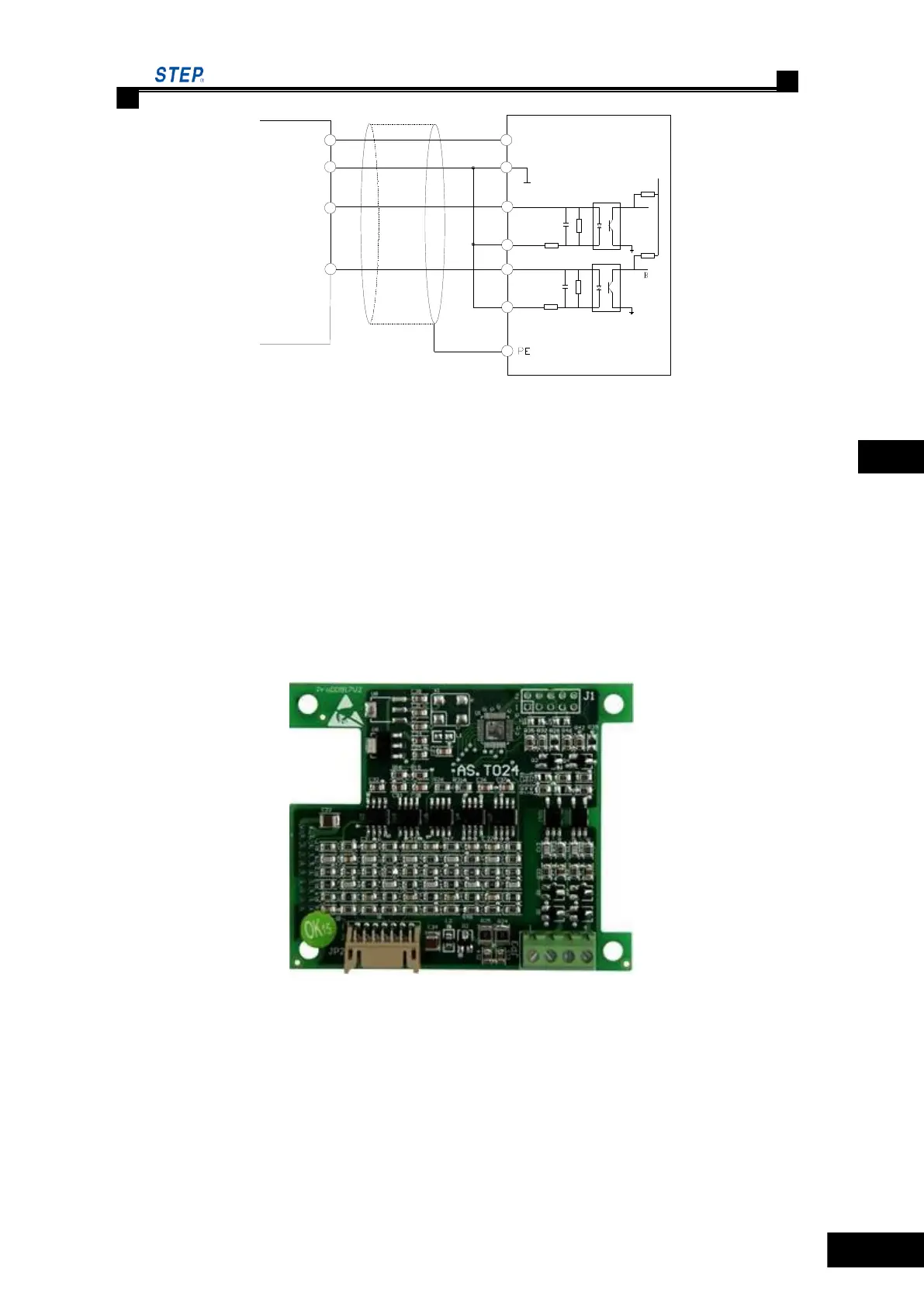

Fig. 4.24 Wiring with encoder push-pull signal
4.7.2 PG card – SIN/COS
SIN/COS PG card (AS.T024) can receive SIN/COS differential signal from encoder. It
adopts encoders with SIN/COS differential output signal.
4.7.2.1 Line-up SIN/COS PG card terminal
Line-up SIN/COS PG card terminal, see Fig. 4.25.
Fig. 4.25 SIN/COS PG card (AS.T024) terminal line up
4.7.2.2 SIN/COS PG card terminal label
Terminal label for SIN/COS PG card (AS.T024) is as follows:
JP3 terminal label:
