5 — Component Identification
27
10085896_H
V-PRO
®
maX 2
Operator Manual
• Printer — Located on OE of single door Sterilization Unit (NOE of double door Unit) on right side of control panel.
This alphanumeric thermal printer provides an easy-to-read permanent record of Sterilization Cycle. Printer
provides 24-character wide cycle tape.
NOTE: The thermal paper, under proper storage conditions, is able to achieve a 25-year shelf life. The storage
conditions required:
1. Temperature: 23 ± 5 °C (73 ± 9 °F).
2. Humidity: 50 ± 10% RH.
3. Out of direct sunlight or UV light.
4. Avoid contact with plasticizers (e.g., pressure sensitive adhesive tape).
• Foot Pedal (Load Side) – Located on load side only of Sterilization Unit to enable hands-free door opening. Press
foot pedal to open door.
• Door Handle (Load Side) — Located on left side of chamber door (while facing unit). Large grip enables user to
open door.
• Door Handle (Unload Side) — Located on right side of chamber door (while facing unit). Large grip enables user to
open door.
Chamber
Door
Handle
HMI
Control
Display
Lower
Access
Door
Cup
Interface
Operating End
NOTE: The functionality of the NOE door is the same as the OE door at all
points of operation (except NOE door does not have a foot pedal); both
doors remain locked during Cycles. Printer for Double Door Units is located
on NOE side.
Printer
Foot
Pedal

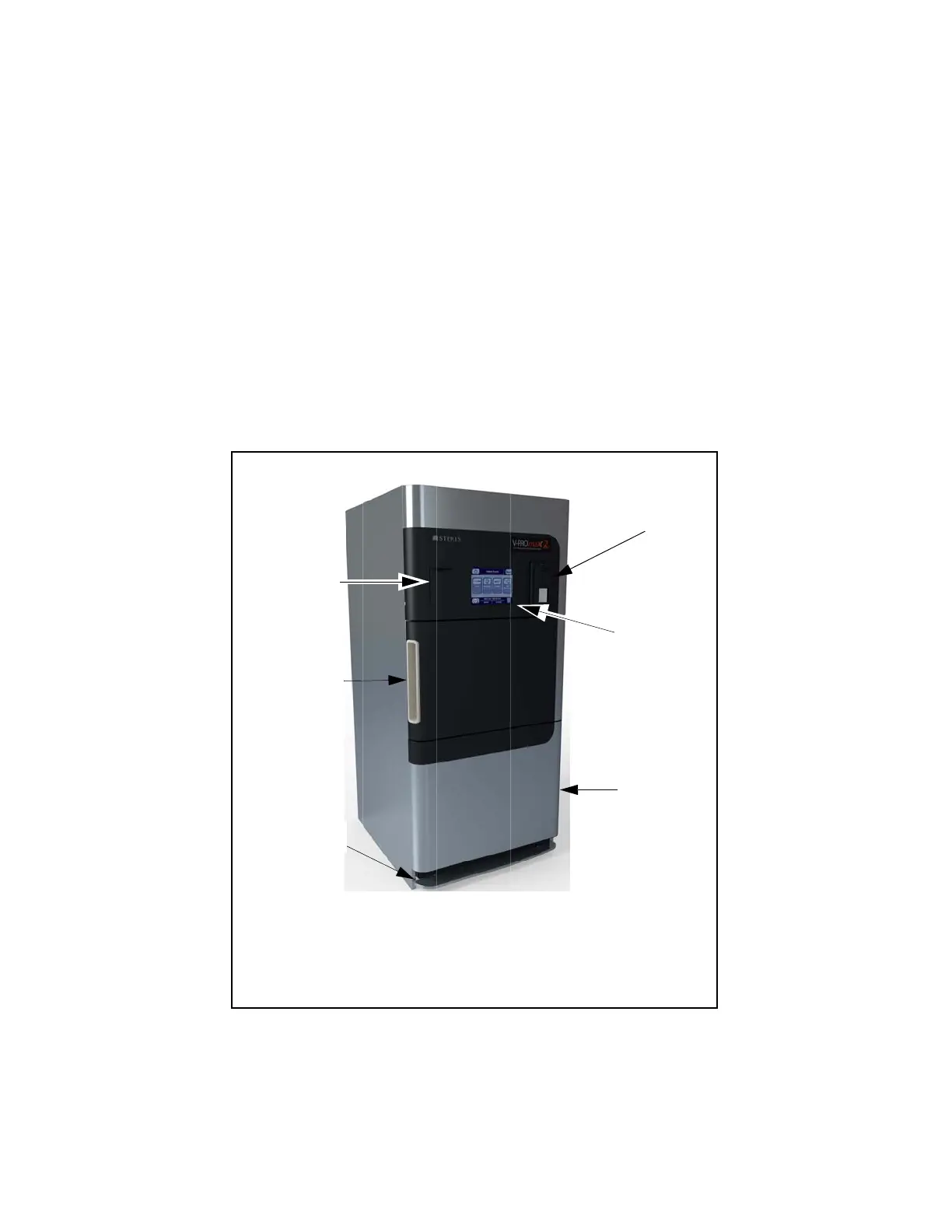

Figure 5-1. Low Temperature Sterilization System
