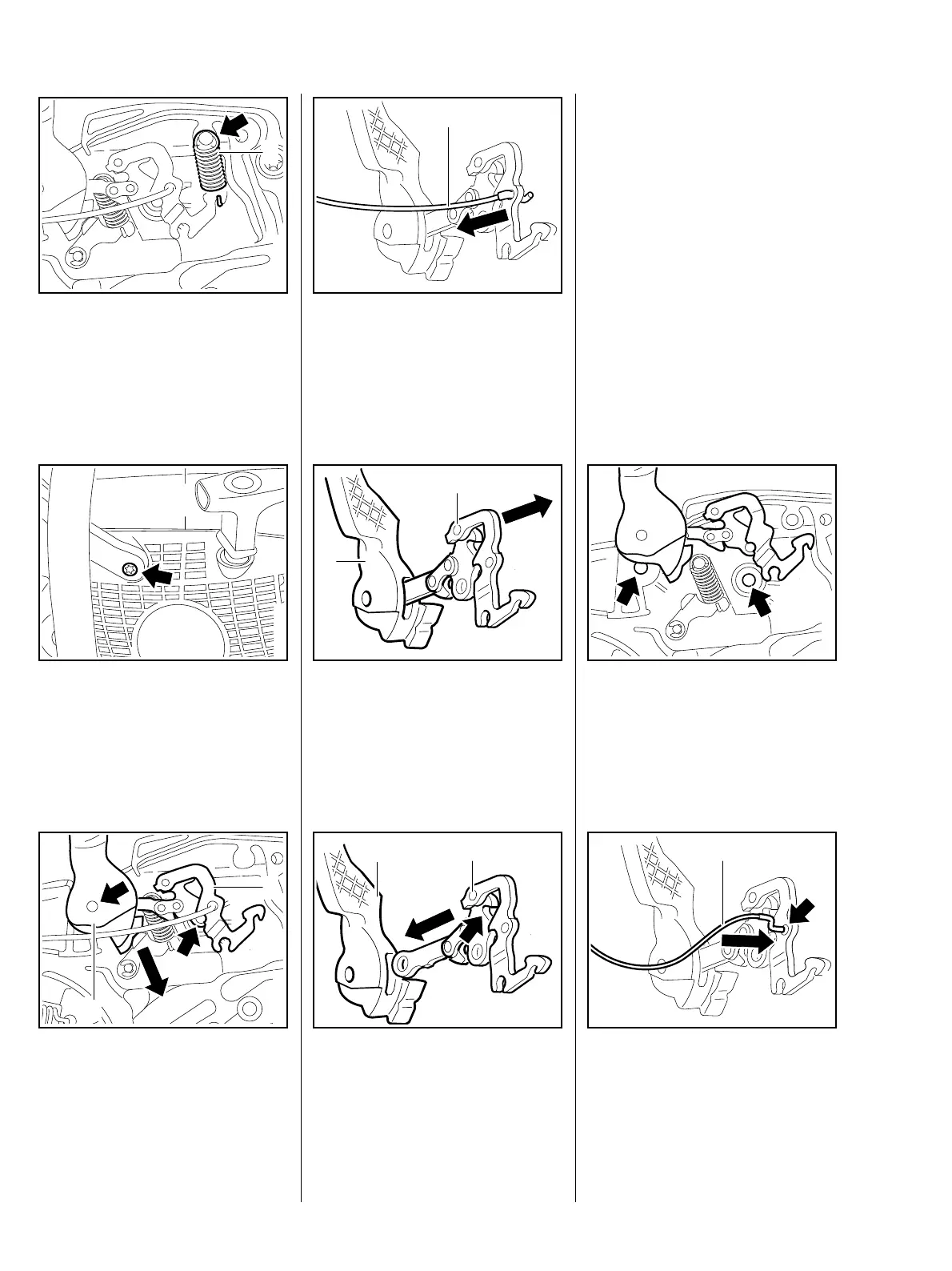

28 MS 441, MS 441 C
: Ease brake spring (1) of brake
lever off the anchor pin (arrow).
: Unhook brake spring (1) from
brake lever.
219RA068 TG
1
: Take out screw (arrow).
219RA054 TG
: Draw hand guard (1) and brake
lever (2) off the pivot pins
simultaneously.
Take out hand guard and brake
lever.
219RA069 TG
1
2
: Detach brake cable (1).
1
219RA070 TG
: Pull brake lever (1) out of hand
guard (2).
Examine brake lever and hand
guard; fit new parts if necessary.
2
1
219RA071 TG
Examine pins and replace if
necessary, b 7.5.
Examine cam lever and replace if
necessary, b 7.4.
1
219RA072 TG
2
Clean the dismantled parts with
a little commercially available
solvent-based degreasant not
containing any chlorinated or
halogenated hydrocarbons.
Position brake lever so that
mount for brake spring (arrow) is
at the top.
: Slide brake lever (2) into recess
in hand guard (1) until the holes
are lined up.
: Slide hand guard with brake lever
across the machine until it rests
against the pivot pins (arrows).
219RA073 TG
: Attach brake cable (1) to hole
(arrow) in brake lever.
1
219RA074 TG
