Operation
Transporting the product with the Zoom motorized drive (option) (Continued)
2. Turn the battery power switch to on (Figure 6 on page 21). You can find the battery power switch located at the
head end of the frame on the patient left side.

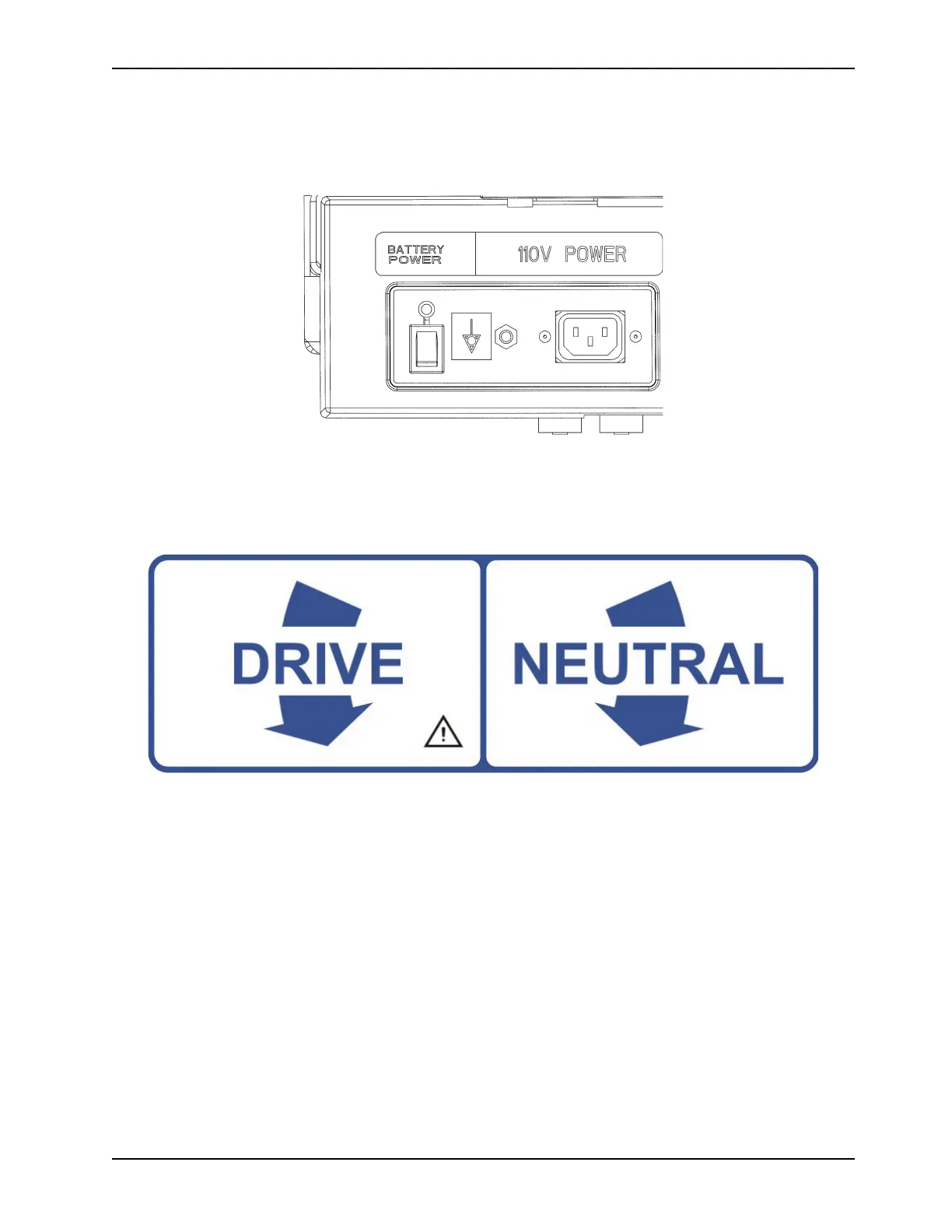

Figure 6: Battery power switch
3. To place the motorized drive wheel in the drive position, push the drive wheel pedal to drive (Figure 7 on page 21).
To place the motorized drive wheel in the neutral position, push the drive wheel pedal to neutral (Figure 7 on page
21).
Figure 7: Drive / neutral
4. Release the brakes.
Note: The motorized drive wheel will not function while the brakes are applied.
