Stryker S3 User Manual

46 3006-209-001 REV B www.stryker.com
Operation
Footboard control panel - Scale (Continued)
To set the scale to zero:
1. Press and hold the Zero button (B) (see Footboard control panel - Scale on page 44) (Figure 31 on page 46) until
the Release Button appears (Figure 32 on page 46).

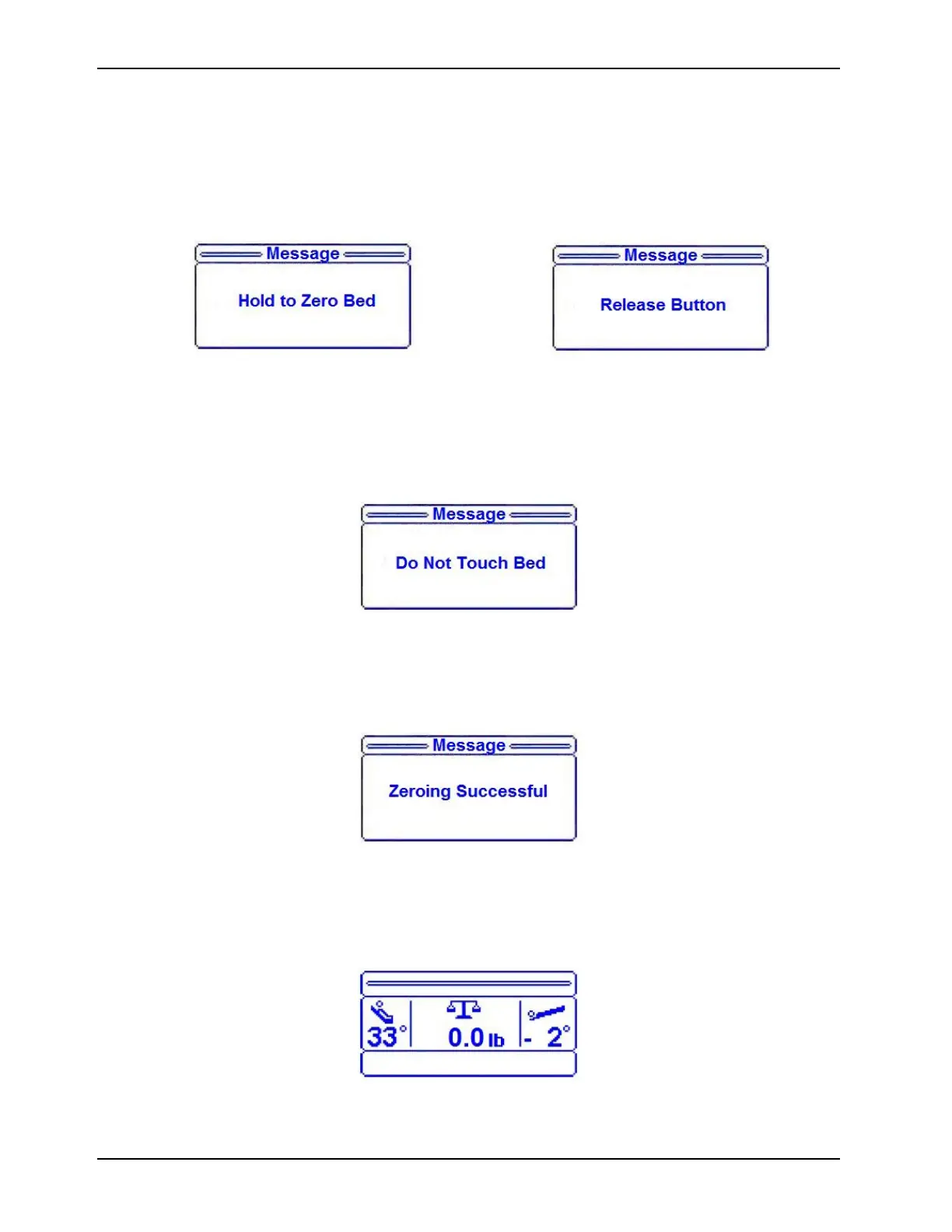

Figure 31: Hold to zero
Figure 32: Release Button
2. Release the Zero button.
Note: Do not touch the product when you set the scale to zero (Figure 33 on page 46).
Figure 33: Do not touch bed
A confirmation notification indicates that setting the scale to zero was successful (Figure 34 on page 46).
Figure 34: Zeroing successful
Notes
• The Bed Zero LED on the footboard LED indicator illuminates.
• The scale icon and 0.0 appears on the footboard display.
Figure 35: Scale set to zero

Stryker S3 Specifications

General

Weight Capacity	500 lbs (227 kg)
Maximum Patient Weight	500 lbs (227 kg)
Bed Frame Material	Steel
Type	Hospital Bed
Bed Width	35 inches (89 cm)
Caster Size	5 inches (12.7 cm)
Electrical Requirements	120 VAC, 60 Hz
Width	35 inches (89 cm)
Power Requirements	120 VAC, 60 Hz
Power Backup	Battery backup available
Accessories	IV pole
Siderails	Yes
