Litter Operation Guide
16

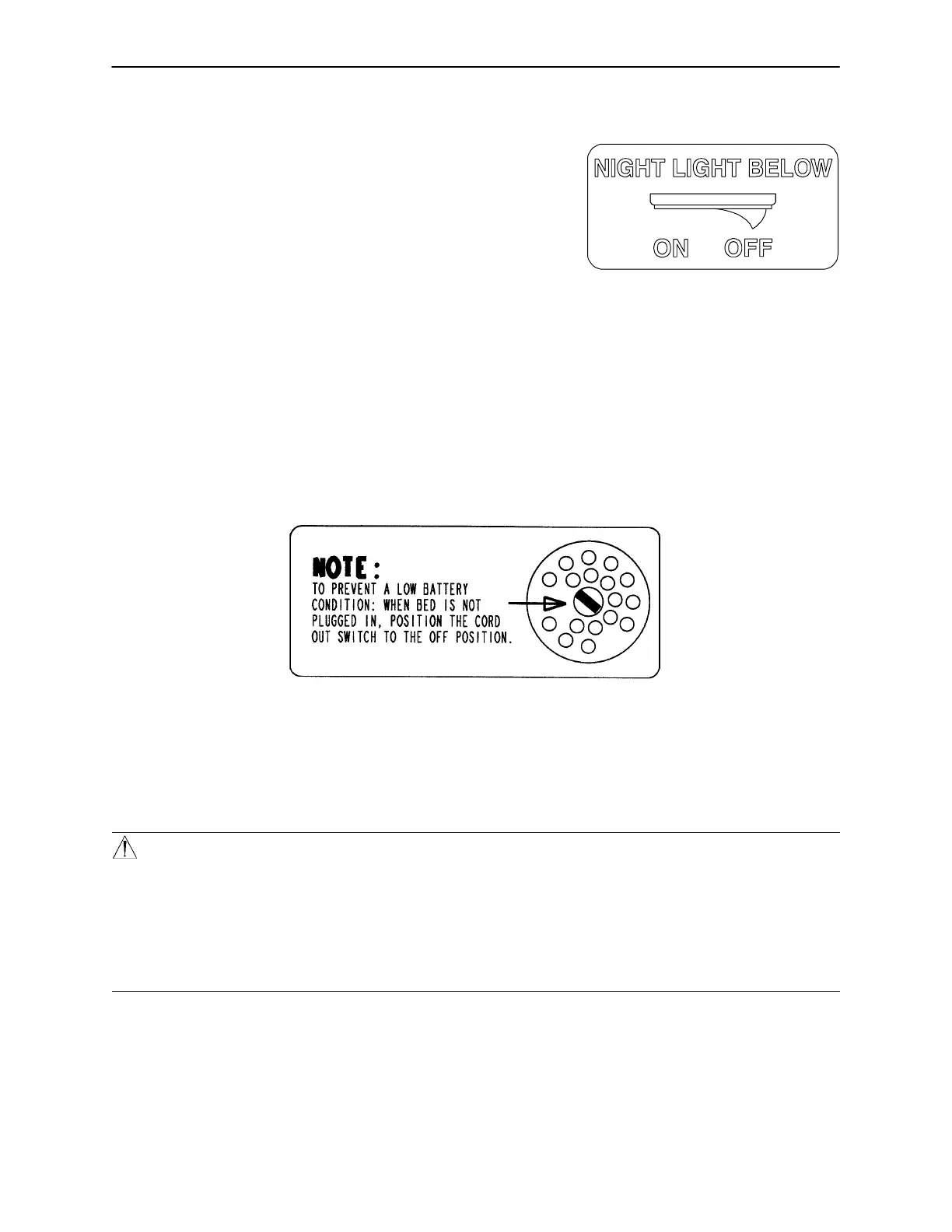

NIGHT LIGHT USAGE
The bed is equipped with two night lights to illuminate the
floor area around the bed.
There is a switch under the litter thigh section on the pa-
tient’s left side that turns both lights on and off.
NOTE
The night lights have a sensor so the lights will turn off,
even when the switch is on, if the light in the room is bright
enough so a night light is not necessary.
NURSE CALL BACK−UP BATTERY (Optional Equipment)
To prevent a low battery condition when the bed is not plugged in, position the cord out switch at the head
end of the bed to the off position. The switch is identified by the label shown below. If the switch is not posi-
tioned as shown below and the bed power cord and pendant cord are unplugged, the life of the back−up bat-
tery will be significantly reduced.
If the power light (located on the foot board) is flashing, the Nurse Call battery needs to be replaced. The
battery is located on the patient’s left side at the head end of the bed. No tools are required to replace the
battery. Unplug the bed power cord from the wall socket and replace the battery.
USING THE 110 VOLT OUTLET (Optional Equipment)
The 110V outlet has its own power cord that must be plugged into a properly grounded three prong wall recep-
tacle different from the wall receptacle the bed power cord is plugged into.
If the equipment plugged into the bed outlet is not receiving power, check the circuit breakers located on the
litter frame under the head section (see page 172). Reset, if necessary.
WARNING
Only use equipment with the following electrical specs: 110 VAC; 10A; 60Hz. Maximum total load drawn by
equipment used in this receptacle outlet must not exceed 10A. The total system chassis risk current should
not exceed 100uA. Grounding continuity should be checked periodically.
To avoid risk of electrical shock, unplug all power cords before opening the service compartment, junction
box or receptacle.
Do not use the optional 110V outlet for life sustaining equipment.
CPR BOARD USAGE (Optional Equipment)
If the bed is equipped with the optional CPR board, it is stored on the bed’s head board. To remove it,
pull it away from the head board and lift it out of storage position. If the CPR board option was not pur-
chased, the head board can also be removed and used as an emergency CPR board.
