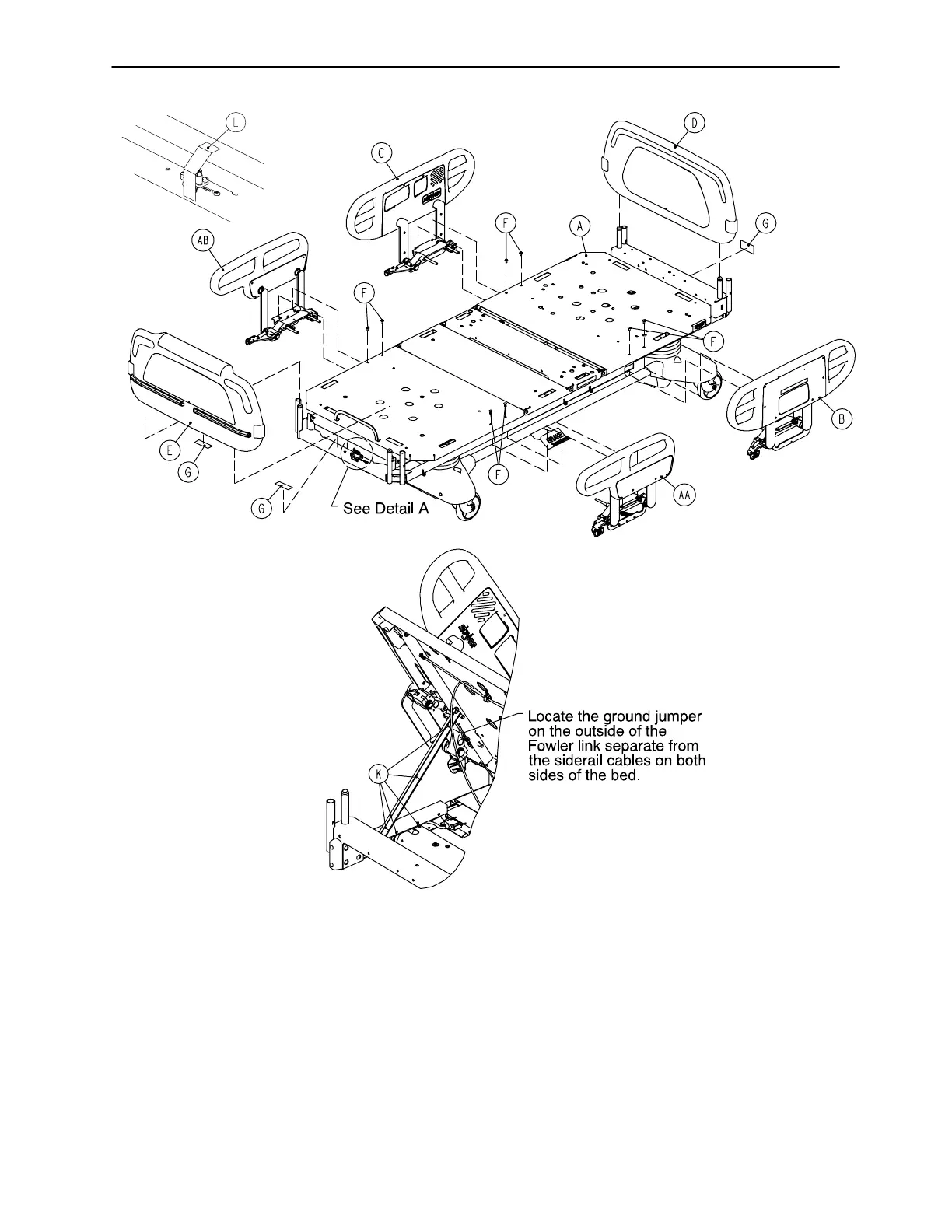

Secure II Bed Assembly

STANDARD BED SHOWN

DETAIL A

HEAD END SIDERAIL

CABLE ROUTING

Standard Bed Components

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A (page 141−147) Litter Assembly 1 H 3−221 Hex Washer Hd. Screw 2

B (page 197−215) Lt. Hd. End Siderail Ass’y 1 K 3000−300−113 8” Cable Tie 6

C (page 197−215) Rt. Hd. End Siderail Ass’y 1 L 3000−300−641 Foot Board Ground Label 1

D (page 243) Head Board Assembly 1 AA (page 220−222) Lt. Ft. End Siderail Ass’y 1

E (page 230−238) Foot Board Assembly 1 AB (page 220−222) Rt. Ft. End Siderail Ass’y 1

F7−65 Truss Hd. Screw 8 (page 170 & 171) Night Light Assembly 1

G 3000−300−625 Date−of−Manu. Label 1 AD 3−221 Hex Washer Hd. Screw 2

Table of Contents2
Introduction6
- Specifications6
- Warning / Caution / Note Definition7
Safety Tips and Guidelines10
Set−Up Procedures11
Bed Symbols13
Bed Illustration14
- Brake Pedal Operation15
- Steer Pedal Operation15
- CPR Emergency Release Usage16
- Foot Prop Usage16
- Fracture Frame Usage16
- Foley Bag Hooks16
- Patient Restraint Strap Locations16
- Night Light Usage17
- Nurse Call Back−Up Battery17
- Outlet17
- CPR Board Usage17
- Poles18
- Positioning Siderails19
- Siderail Control Panel Lights19
- Siderail Function Guide20
- Foot Board Control Panel Guide22
- Scale System Operation Guide26
- Pendant Controller33
Preventative Maintenance38
- Cleaning38
- Preventative Maintenance Checklist39
Static Discharge Precautions40
Troubleshooting Guide43
Troubleshooting45
Bed Circuit Boards47
Bed Circuit Boards55
Bed Communications Tester56
Headwall Output Configuration57
Inverter Protection Features58
Quick Reference Replacement Parts List59
Service Information61
- Brake Pedal Replacement61
- Lift Motor and Capacitor Removal and Replacement62
- Lift Housing Removal and Replacement63
- Lift Potentiometer Replacement and Adjustment65
- Lift Potentiometer "Burn−In" Procedure66
- Lift Motor Isolation Plate Replacement67
- Lift Motor Coupler Replacement68
- Power and Sensor Coil Cord Replacement69
- Zoomr Option Battery Removal and Replacement71
- Zoomr Option Power Board Removal and Replacement72
- Drive Motor Removal and Replacement73
- Knee Motor Removal and Replacement74
- Head Motor Cam and Cam Guide Replacement75
- Head Motor Limit Setting76
- Head Motor Removal and Replacement77
- Head Motor Drive Isolator and CPR Decoupler Removal and Replacement78
- Head Motor Drive Screw and Ball Nut Replacement79
- Head Motor Brake/Clutch Replacement80
- Scale System Diagnostics83
- Load Cell Replacement84
- Power Supply Replacement85
- CPU Board Replacement86
- Smart TV Interface "Burn−In" Procedure87
- Zoomr Option Control Bar Potentiometer Replacement88
- Zoomr Option Control Bar Potentiometer "Burn−In" Procedure89
- Zoomr Option AC Crossover Board Replacement90
- Zoomr Option Display/Cpu Board Replacement90
- Siderail Cover Removal91
- Molded Siderail Replacement92
- Head End Siderail Cable Replacement93
- Siderail Assembly Removal95
- Foot Board Hinge Removal96
- Foot Board Module Replacement96
- Foot Board Interface Plug Replacement97
Assembly Drawings and Parts Lists Bed Assembly99
- Base Assembly and Options102
- Base Assembly and Options108
- Lift Assembly112
- Motor Isolation Plate Assembly113
- Brake Shaft Assembly114
- Brake Crank Assembly115
- Brake Bar Assembly116
- Caster Assembly117
- Zoomr Option Drive Wheel Lift Lever Assembly131
Zoomr Option Bottom Covers132
- Zoomr Option Drive Train Assembly133
- Zoomr Option Battery Tray Assembly134
Zoomr Option Base Power Assembly135
- Battery Back−Up Option Base Power Assembly141
- Litter Covers149
- Electrical Litter Assembly156
- Mechanical Litter Assembly161
- Lift Header Assembly165
- Gatch Motor Assembly167
- Fowler Drive Assembly168
- Fowler Limit Switch Assembly169
- Night Light Assembly171
- Optional 110V Outlet Assembly173
- Outlet Box Assembly175
- Scale/Bed Exit Option Assembly177
- Optional HWI Assembly with Communication181
- Optional HWI Assembly with Communication & Ports183
- Battery Enclosure Assembly184
Zoomr Battery Enclosure Assembly192
- Battery Back−Up Option Head End Enclosure Assembly197
- Head End Siderail Assembly201
- Head End Siderail Assembly216
- Siderail Panels217
- Foot End Siderail Assembly223
- Siderail Release Lever Assembly229
- Siderail Bypass Detent Clip Assembly231
- Pendants232
- Foot Board Assembly233
- Foot Board Bed Exit Module243
- Foot Board Scale Module245
- Head Board Assembly246
- CPR Board Assembly247
- Defibrillator Tray Assembly255
- Pleur−Evac Rack Assembly256
- Pump Rack Assembly260
- Litter Roller Assembly265
- Bed Extender Assembly267
- Bed Extender Mattress269
- Traction Socket Extensions270
- Urine Bottle Hanger271
- Padded Siderail Covers273
- Return Authorization275
