3000
−
526
−

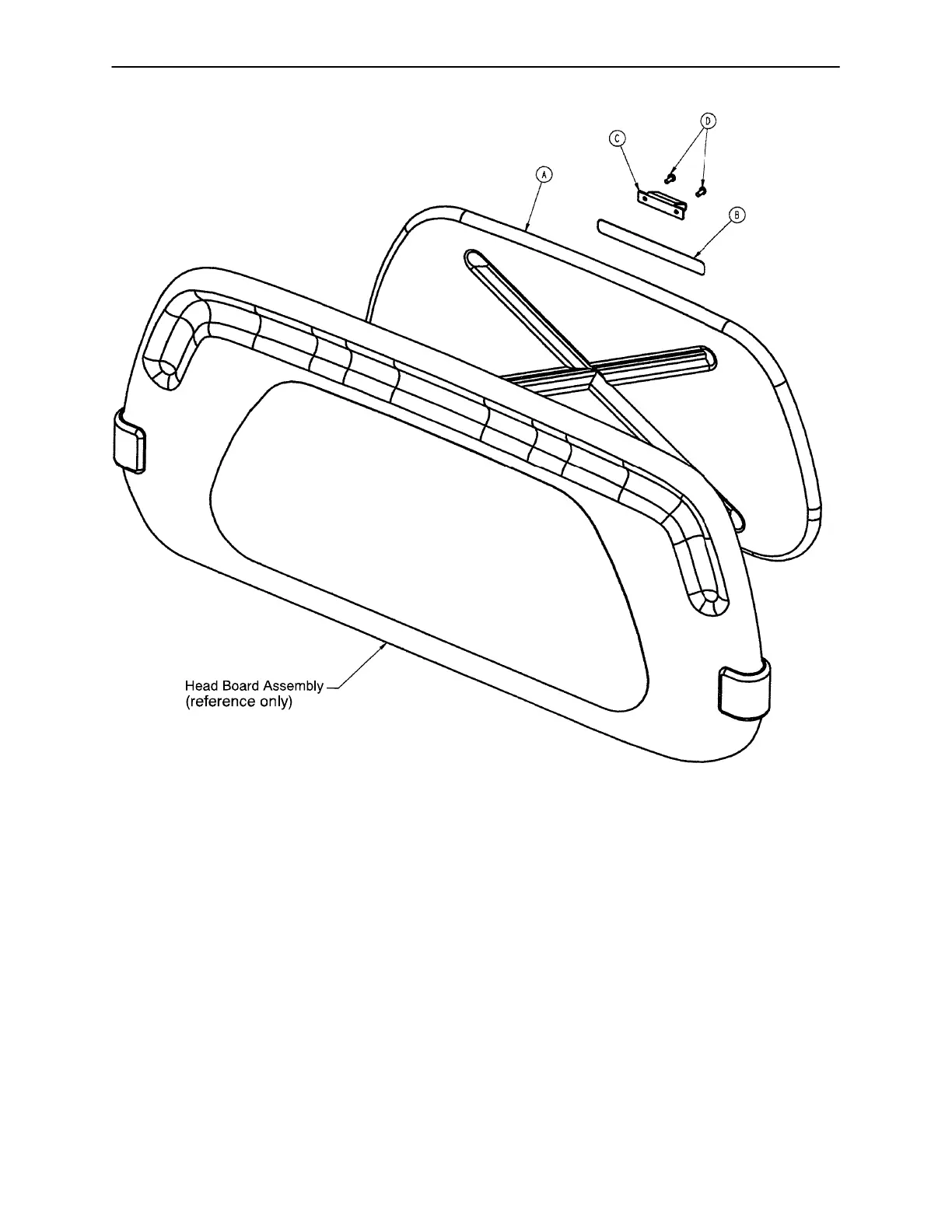

10 Optional CPR Board
Assembly
244
Item
Part
No.
Part
Name
Qty
.
A
3000
−
526
−
1
CPR Board
1
B
3000
−
526
−
3
CPR Board Label
1
C
3000
−
526
−
2
CPR Head Board Clip
1
D2
3
−
88
Pan Hd. T
apping Screw
2
246
248
Table of Contents
Table of Contents
2
Introduction
6
Specifications
6
Warning / Caution / Note Definition
7
Safety Tips and Guidelines
10
Set−Up Procedures
11
Bed Symbols
13
Bed Illustration
14
Brake Pedal Operation
15
Steer Pedal Operation
15
CPR Emergency Release Usage
16
Foot Prop Usage
16
Fracture Frame Usage
16
Foley Bag Hooks
16
Patient Restraint Strap Locations
16
Night Light Usage
17
Nurse Call Back−Up Battery
17
Outlet
17
CPR Board Usage
17
Poles
18
Positioning Siderails
19
Siderail Control Panel Lights
19
Siderail Function Guide
20
Foot Board Control Panel Guide
22
Scale System Operation Guide
26
Pendant Controller
33
Preventative Maintenance
38
Cleaning
38
Preventative Maintenance Checklist
39
Static Discharge Precautions
40
Troubleshooting Guide
43
Troubleshooting
45
Bed Circuit Boards
47
Bed Circuit Boards
55
Bed Communications Tester
56
Headwall Output Configuration
57
Inverter Protection Features
58
Quick Reference Replacement Parts List
59
Service Information
61
Brake Pedal Replacement
61
Lift Motor and Capacitor Removal and Replacement
62
Lift Housing Removal and Replacement
63
Lift Potentiometer Replacement and Adjustment
65
Lift Potentiometer "Burn−In" Procedure
66
Lift Motor Isolation Plate Replacement
67
Lift Motor Coupler Replacement
68
Power and Sensor Coil Cord Replacement
69
Zoomr Option Battery Removal and Replacement
71
Zoomr Option Power Board Removal and Replacement
72
Drive Motor Removal and Replacement
73
Knee Motor Removal and Replacement
74
Head Motor Cam and Cam Guide Replacement
75
Head Motor Limit Setting
76
Head Motor Removal and Replacement
77
Head Motor Drive Isolator and CPR Decoupler Removal and Replacement
78
Head Motor Drive Screw and Ball Nut Replacement
79
Head Motor Brake/Clutch Replacement
80
Scale System Diagnostics
83
Load Cell Replacement
84
Power Supply Replacement
85
CPU Board Replacement
86
Smart TV Interface "Burn−In" Procedure
87
Zoomr Option Control Bar Potentiometer Replacement
88
Zoomr Option Control Bar Potentiometer "Burn−In" Procedure
89
Zoomr Option AC Crossover Board Replacement
90
Zoomr Option Display/Cpu Board Replacement
90
Siderail Cover Removal
91
Molded Siderail Replacement
92
Head End Siderail Cable Replacement
93
Siderail Assembly Removal
95
Foot Board Hinge Removal
96
Foot Board Module Replacement
96
Foot Board Interface Plug Replacement
97
Assembly Drawings and Parts Lists Bed Assembly
99
Base Assembly and Options
102
Base Assembly and Options
108
Lift Assembly
112
Motor Isolation Plate Assembly
113
Brake Shaft Assembly
114
Brake Crank Assembly
115
Brake Bar Assembly
116
Caster Assembly
117
Zoomr Option Drive Wheel Lift Lever Assembly
131
Zoomr Option Bottom Covers
132
Zoomr Option Drive Train Assembly
133
Zoomr Option Battery Tray Assembly
134
Zoomr Option Base Power Assembly
135
Battery Back−Up Option Base Power Assembly
141
Litter Covers
149
Electrical Litter Assembly
156
Mechanical Litter Assembly
161
Lift Header Assembly
165
Gatch Motor Assembly
167
Fowler Drive Assembly
168
Fowler Limit Switch Assembly
169
Night Light Assembly
171
Optional 110V Outlet Assembly
173
Outlet Box Assembly
175
Scale/Bed Exit Option Assembly
177
Optional HWI Assembly with Communication
181
Optional HWI Assembly with Communication & Ports
183
Battery Enclosure Assembly
184
Zoomr Battery Enclosure Assembly
192
Battery Back−Up Option Head End Enclosure Assembly
197
Head End Siderail Assembly
201
Head End Siderail Assembly
216
Siderail Panels
217
Foot End Siderail Assembly
223
Siderail Release Lever Assembly
229
Siderail Bypass Detent Clip Assembly
231
Pendants
232
Foot Board Assembly
233
Foot Board Bed Exit Module
243
Foot Board Scale Module
245
Head Board Assembly
246
CPR Board Assembly
247
Defibrillator Tray Assembly
255
Pleur−Evac Rack Assembly
256
Pump Rack Assembly
260
Litter Roller Assembly
265
Bed Extender Assembly
267
Bed Extender Mattress
269
Traction Socket Extensions
270
Urine Bottle Hanger
271
Padded Siderail Covers
273
Return Authorization
275
