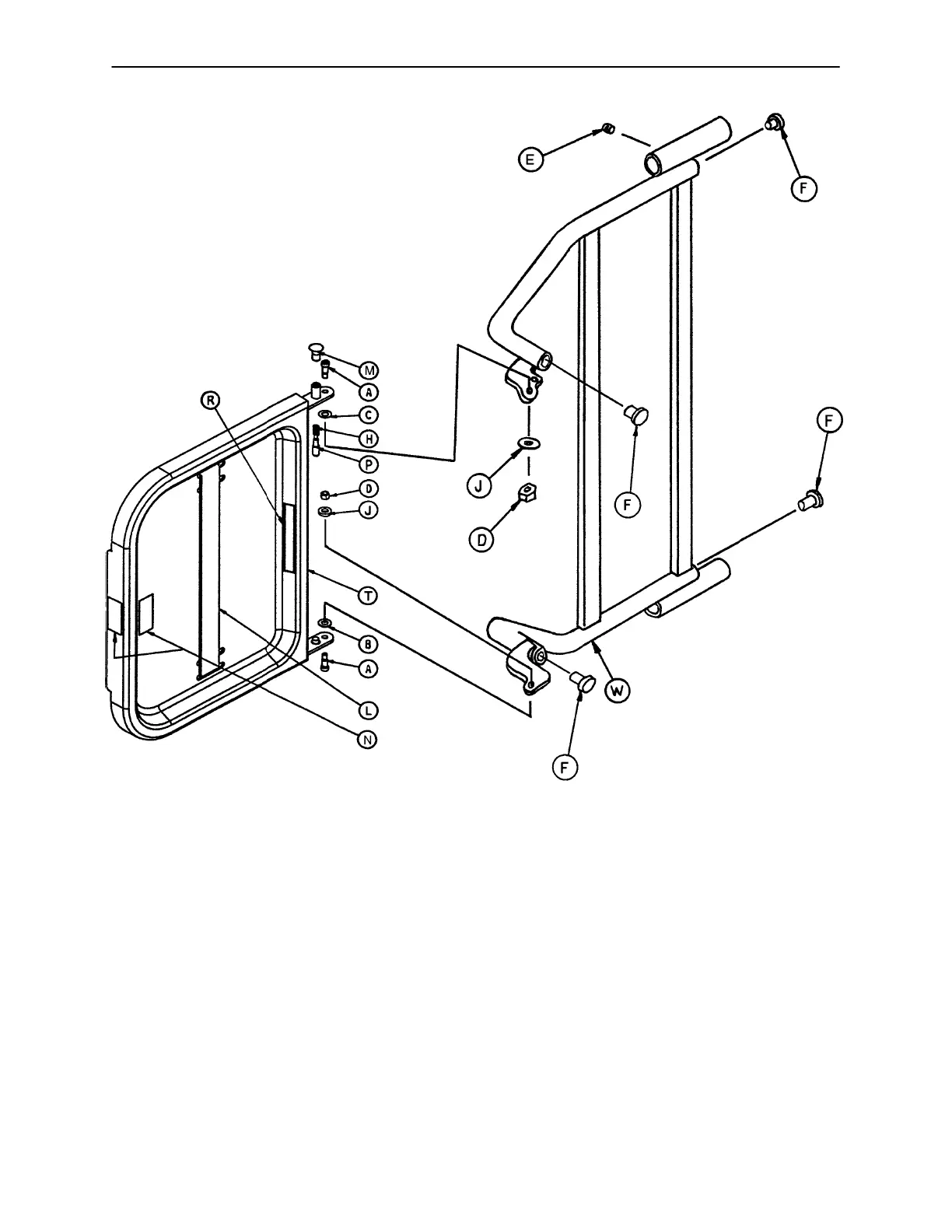

2025−120 Optional Defibrillator Tray Assembly
250
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A8−49 Soc. Hd. Shoulder Bolt 2 L 1010−50−21 Long Strap 1
B14−20 Thrust Washer 1 M 1010−50−50 Knob 1
C14−21 Thrust Washer 1 N 1010−50−57 Max. Weight Label 4
D16−28 Fiberlock Nut 2 P 1010−50−242 Lock Pin 1
E21−17 Set Screw 4 R 2025−120−5 Equipment Label 1
F37−214 Hole Plug 4 S 2025−120−6 Specification Label 1
H38−133 Spring 1 T 2025−120−18 Tray Assembly 1
J52−17 Spacer 2 W 2025−120−25 Pivot Weldment Frame 1
K 1010−50−19 “Push/Pull” Label 1
