ZOOMR OPTION BATTERY REMOVAL AND REPLACEMENT
Required Tools:
Torx T27 7/16” Wrench
1/2” Socket Wrench Bungee Cords
Phillips Screwdriver 5/32” Allen
Procedure:
1. Raise the litter to full up. Unplug the
power cord from the wall socket and
push the battery power on/off switch to
the “OFF” position.
2. Using a Phillips screwdriver, remove the
four screws holding the base hood to the
base frame.
3. Lift the base hood and support it from
the litter frame using bungee cords or
the equivalent.
4. Properly ground yourself (see page 39
for static discharge precautions).
5. Open the cable clamp at the head end,
left side of the base frame and remove
the cables from the clamp.

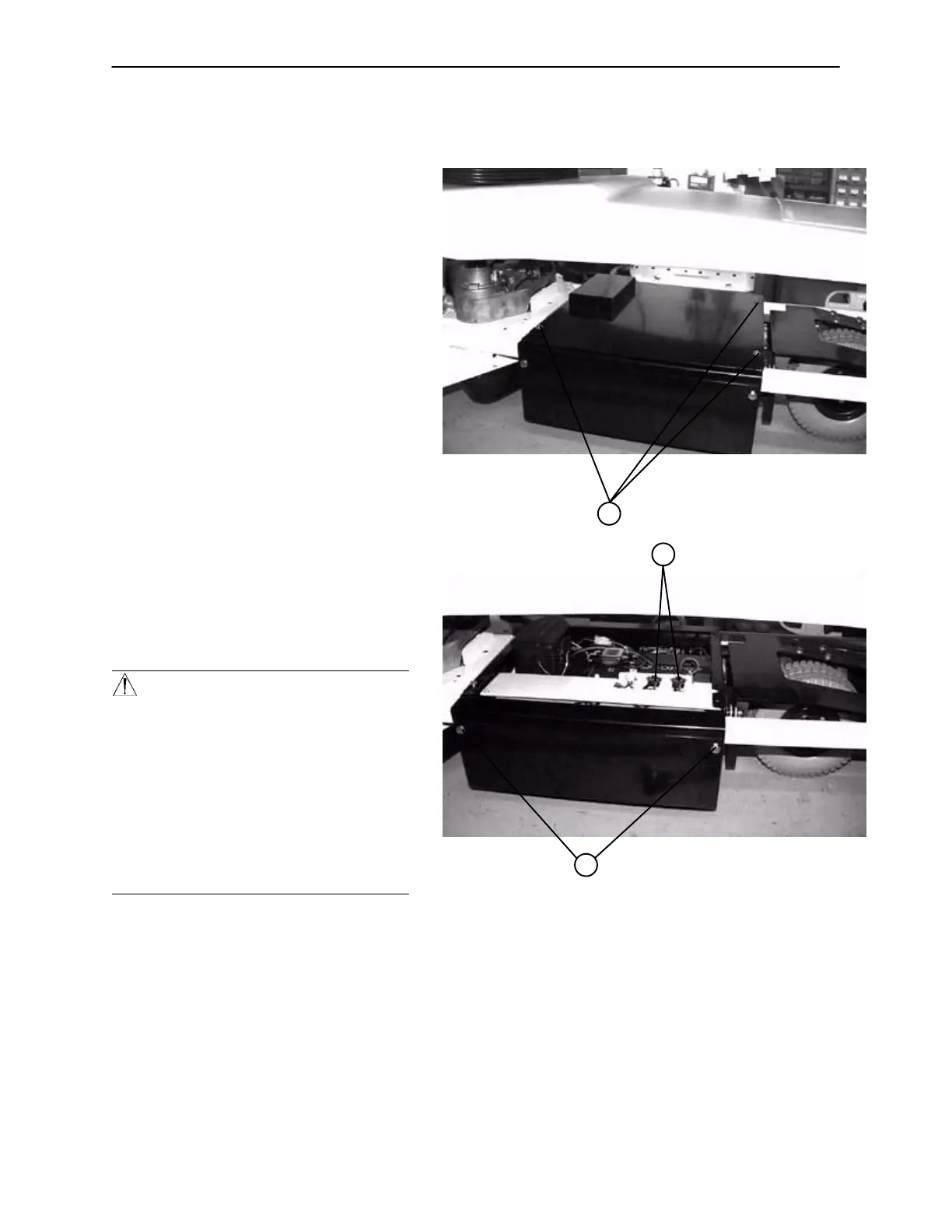

6. Using a Torx T27, remove the four
screws (A) holding the electronics box
cover and remove the cover.
7. Disconnect the two battery cables (B).
WARNING
The battery tray assembly weighs 50
pounds. Use caution when removing the
two hex head screws securing it to the base
frame or personal injury could result.
Battery posts, terminals and related acces-
sories contain lead and lead compounds,
chemicals known to the State of California to
cause cancer and birth defects or other re-
productive harm. Wash hands after han-
dling.
8. Support the battery tray assembly from the bottom. Using a 7/16” hex socket or wrench, remove the two
screws (C) supporting the battery tray.
9. The back of the battery tray assembly has a lip which catches on the electronics box. Lift up and out to
remove the battery tray assembly.
10. Using a Phillips screwdriver, remove the two screws holding the battery terminal to the battery tray as-
sembly.
11. Using a 5/32” Allen wrench and a 7/16” wrench, remove the four screws and nuts holding the battery har-
ness to the battery terminals.
12. Reverse steps 1 − 11 to install the new batteries. Complete the last four items of the set−up procedures
on page 11.
B
C
A
