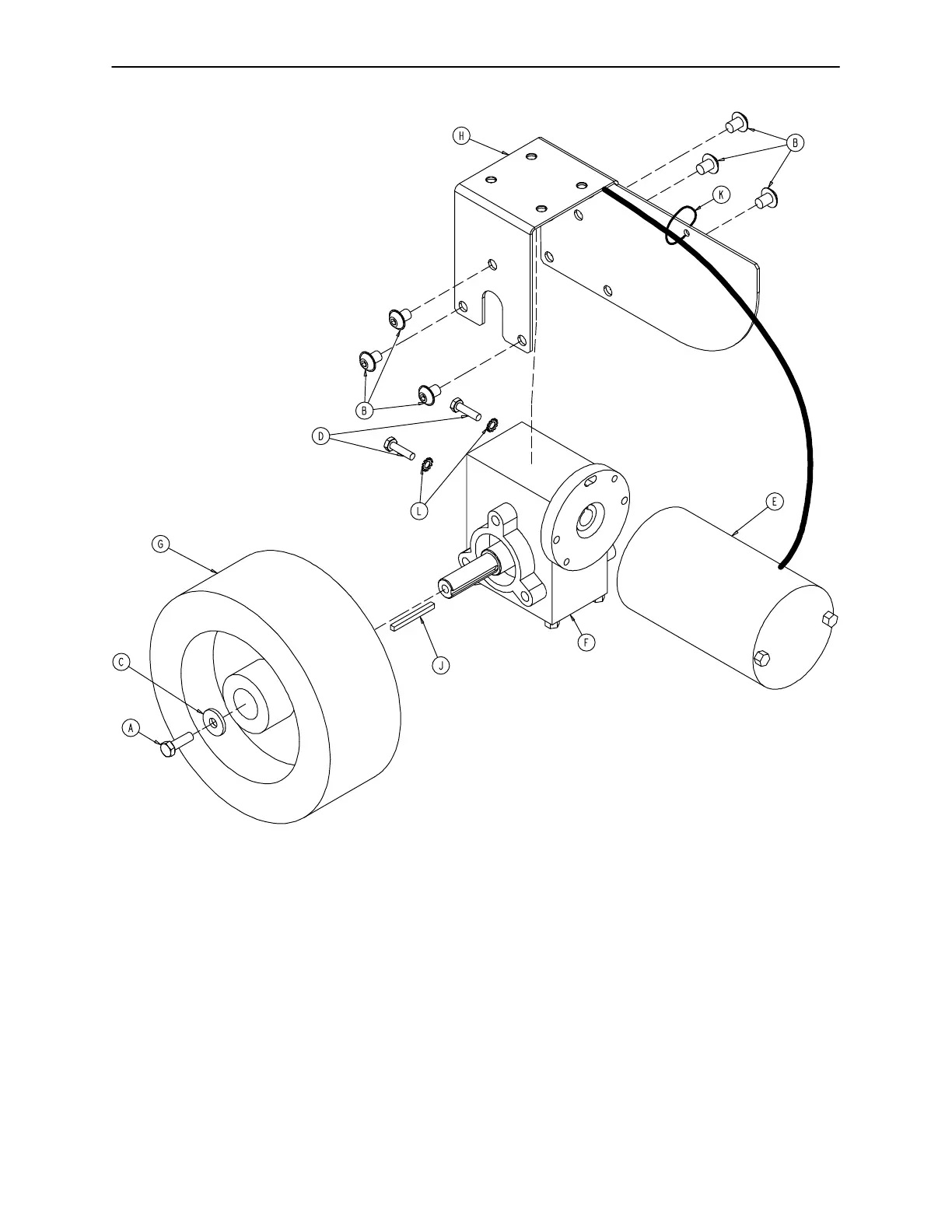

3002−1−14 Zoom Option Drive Train Assembly
132
Item Part No. Part Name Qty.
A 8839−793−700 Hex Hd. Cap Screw 1
B4−338 Flanged But. Hd. Cap Screw 6
C11−262 Washer 1
D3−54 Hex Hd. Cap Screw 2
E 3002−1−72 Drive Train Motor 1
F 2040−1−73 Gear Box 1
G 2040−1−74 Drive Train Wheel 1
H 2040−1−75 Motor Mounting Bracket 1
J 2040−1−97 Square Key 1
K 3000−300−113 Wire Tie 1
L13−10 Star Washer 2
