Stryker Secure II 3002 User Manual

Zoom Option Battery Tray Assembly
133

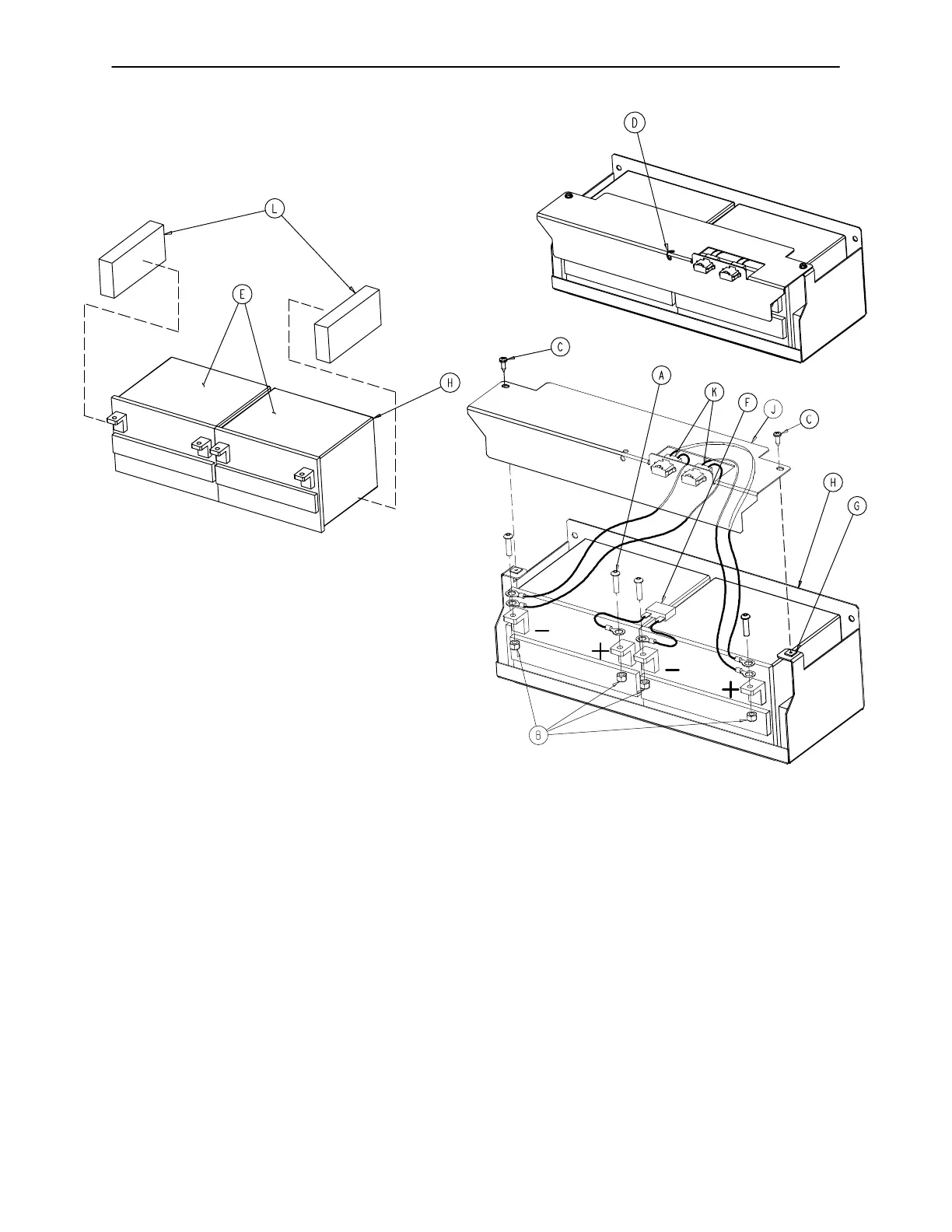

WIRING VIEW
Assembly part number 3002−1−15 (reference only)
Item Part No. Part Name Qty.
A4−46 But. Hd. Cap Screw 4
B16−28 Nylock Nut 4
C23−256 Pan Hd. Screw 2
D38−151 Cable Tie 1
E 2040−1−70 Battery 2
F 2040−1−802 Battery Jumper Cable 1
G 3000−300−2 Push Nut 2
H 3002−1−69 Battery Tray 1
J 3002−1−91 Terminal Guard 1
K 3002−1−803 Battery Harness Cable 2
L 3002−101−43 Foam Spacer 2
Battery Kit part number 2040−700−13.
