Stryker Secure II 3002 User Manual

Bed Circuit Boards
54

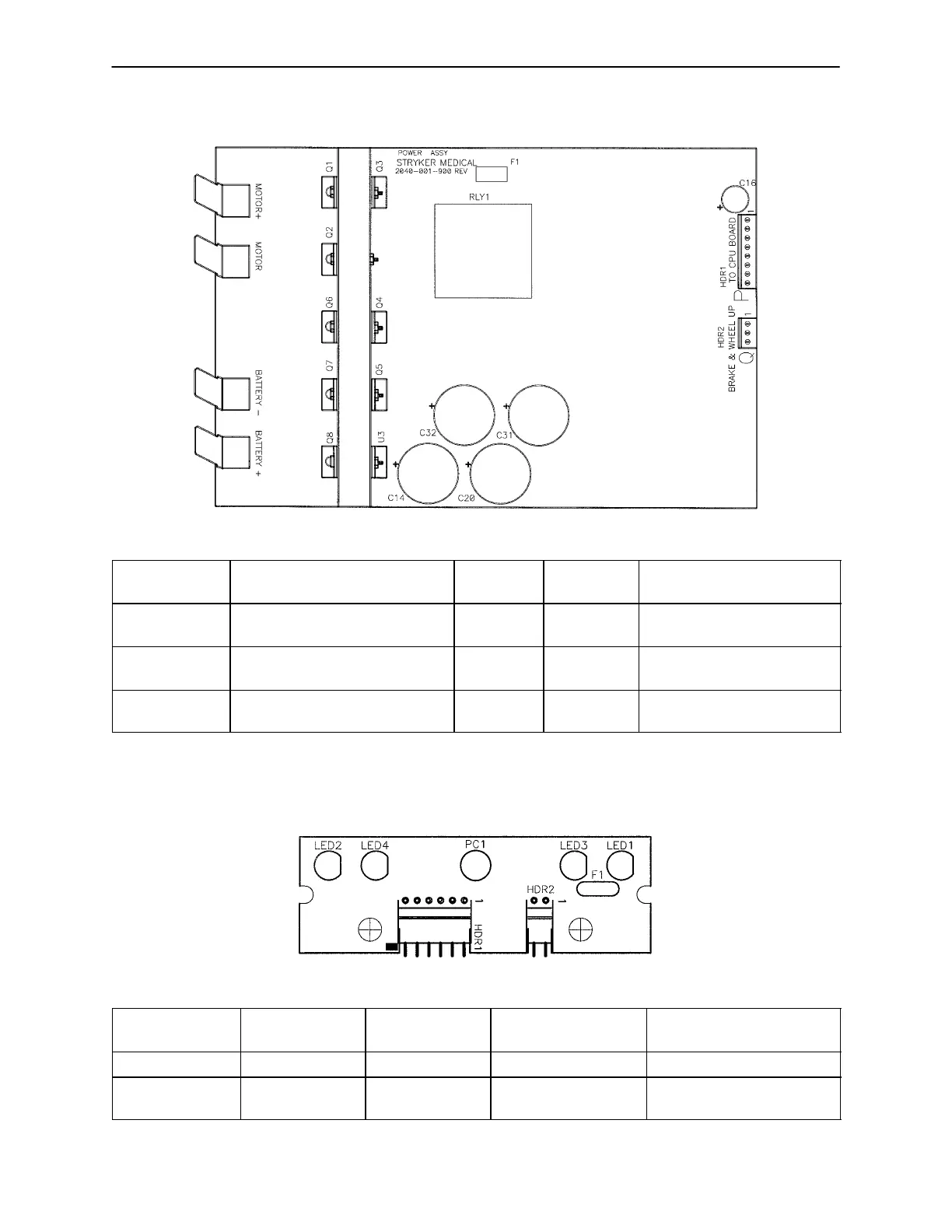

OPTIONAL DC MOTOR POWER BOARD − P/N 2040−1−900
CONNECTOR
LOCATION
VOLTAGE POSITIVE
LEAD
NEGATIVE
LEAD
DESCRIPTION
HDR 1 (P) Battery voltage around 26VDC Pin 3 Red Pin 1 Black Battery Voltage out to the
Display/CPU Board
HDR 2 (Q) 5VDC Disengaged
0VDC Engaged
Pin 1 Red Pin 3 Black Drive Wheel
HDR 2 (Q) 5VDC Disengaged
0VDC Engaged
Pin 2 Red Pin 3 Black Brakes
OPTIONAL NIGHT LIGHT BOARD − PART NUMBER 3002−310−900
CONNECTOR
LOCATION
NEGATIVE
LEAD
POSITIVE
LEAD
VOLTAGE DESCRIPTION
HDR 2 Pin 1 Pin 2 5 VDC Supply IN
HDR 1 Pin 1
HDR 2
Pin 2
Pin 4
5 VDC Output Voltage for
Optional LED’s
