Bed Circuit Boards

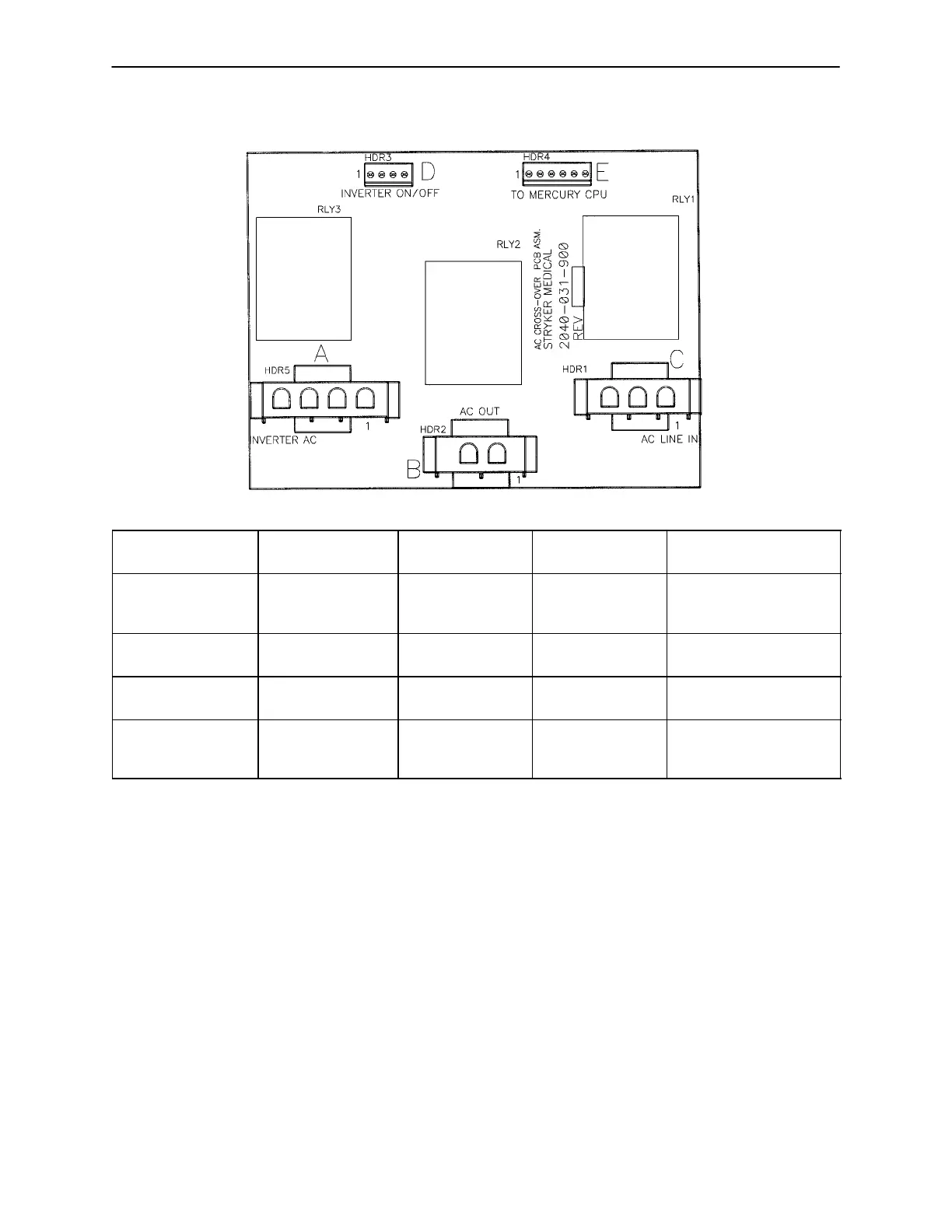

ZOOMR OPTION AC CROSSOVER BOARD − P/N 2040−31−900

CONNECTOR

LOCATION

VOLTAGE POSITIVE LEAD NEGATIVE

LEAD

DESCRIPTION

HDR 5 (A) 120VAC Pin 4 Pin 1 AC Input to Board from

the Inverter with the

Power Cord Unplugged

HDR 1 (C) 120VAC Pin 3 Pin 1 AC Input to Board from

the Wall Receptacle

HDR 2 (B) 120VAC Pin 2 Pin 1 AC Output of Board to

Main Power

HDR 4 (E) +5VDC Pin 4 Pin 1 +5VDC when AC is

Unplugged from the

Wall Receptacle
