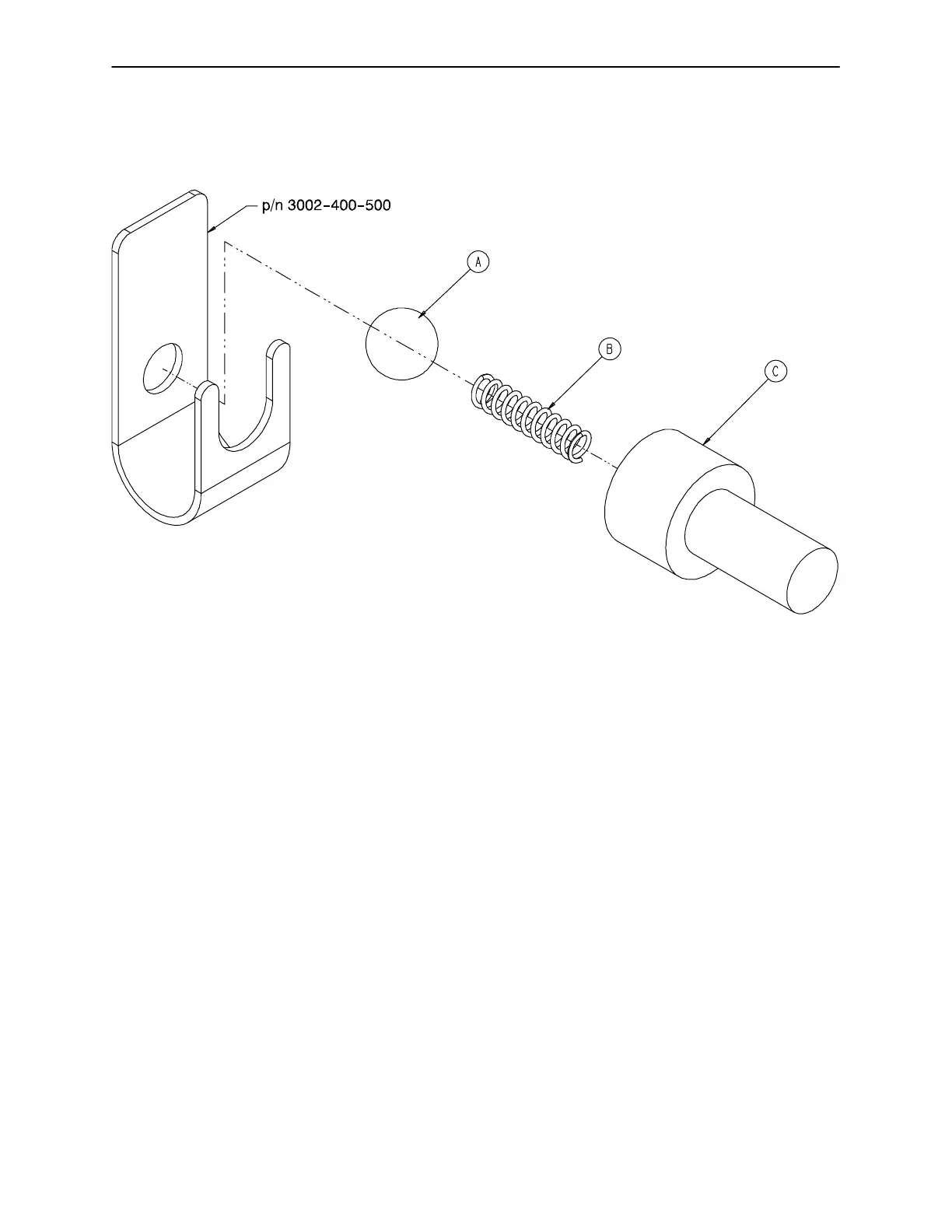

Siderail Bypass Detent Clip Assembly

228

Assembly part number 3002−400−90 (reference only)

Item Part No. Part Name Qty.

A31−137 Steel Ball 1

B38−464 Compression Spring 1

C 3002−400−524 Bypass Detent Housing 1
