3002
−
400
−

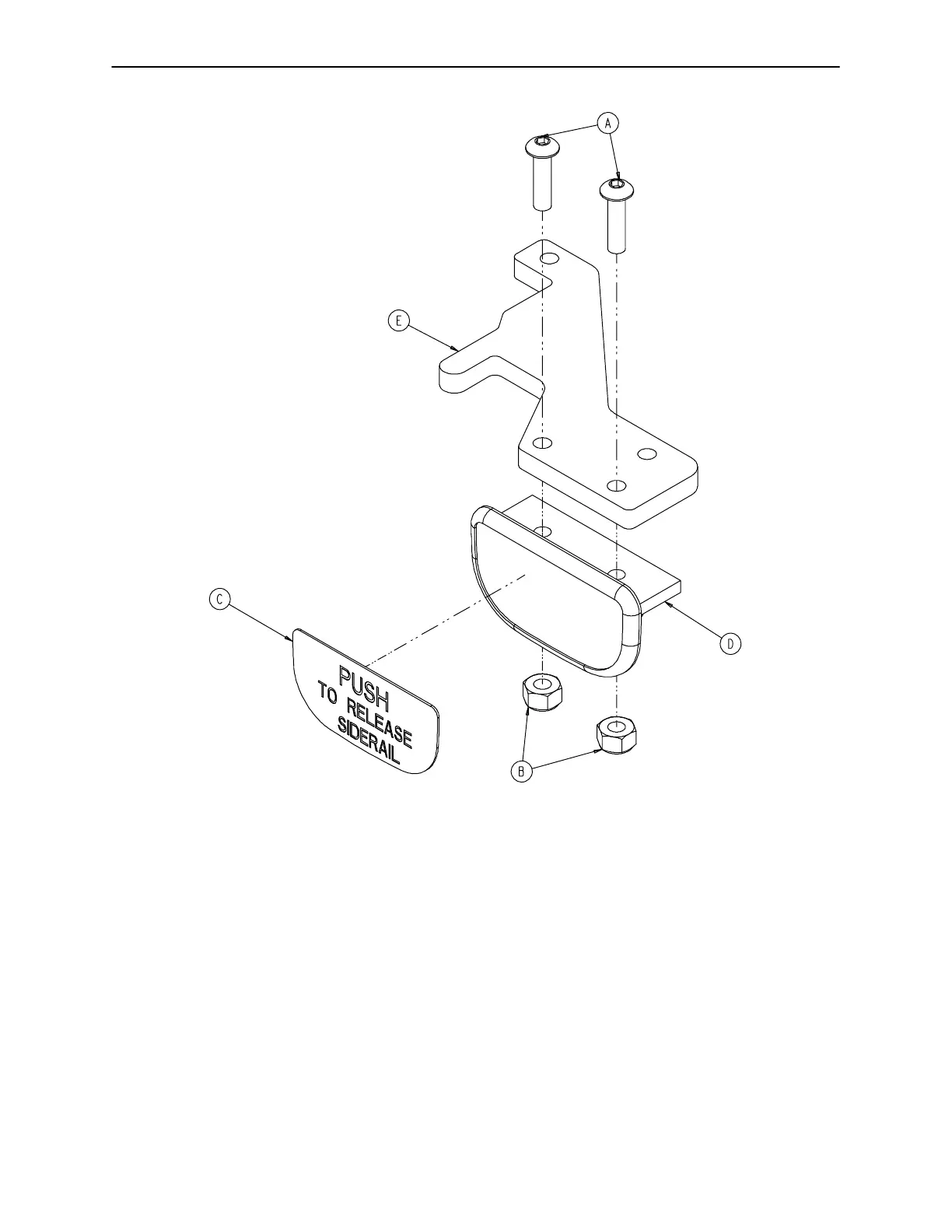

65 Siderail Release Lever
Assembly
, Right
227
Item
Part
No.
Part
Name
Qty
.
A4
−
278
Socket But. Hd. Cap Screw
2
B1
6
−
2
Hex Nut
2
C
3001
−
400
−
505
Release Label
1
D
3001
−
400
−
514
Release Lever Pad
1
E
3002
−
400
−
510
Release Lever
1
229
231
