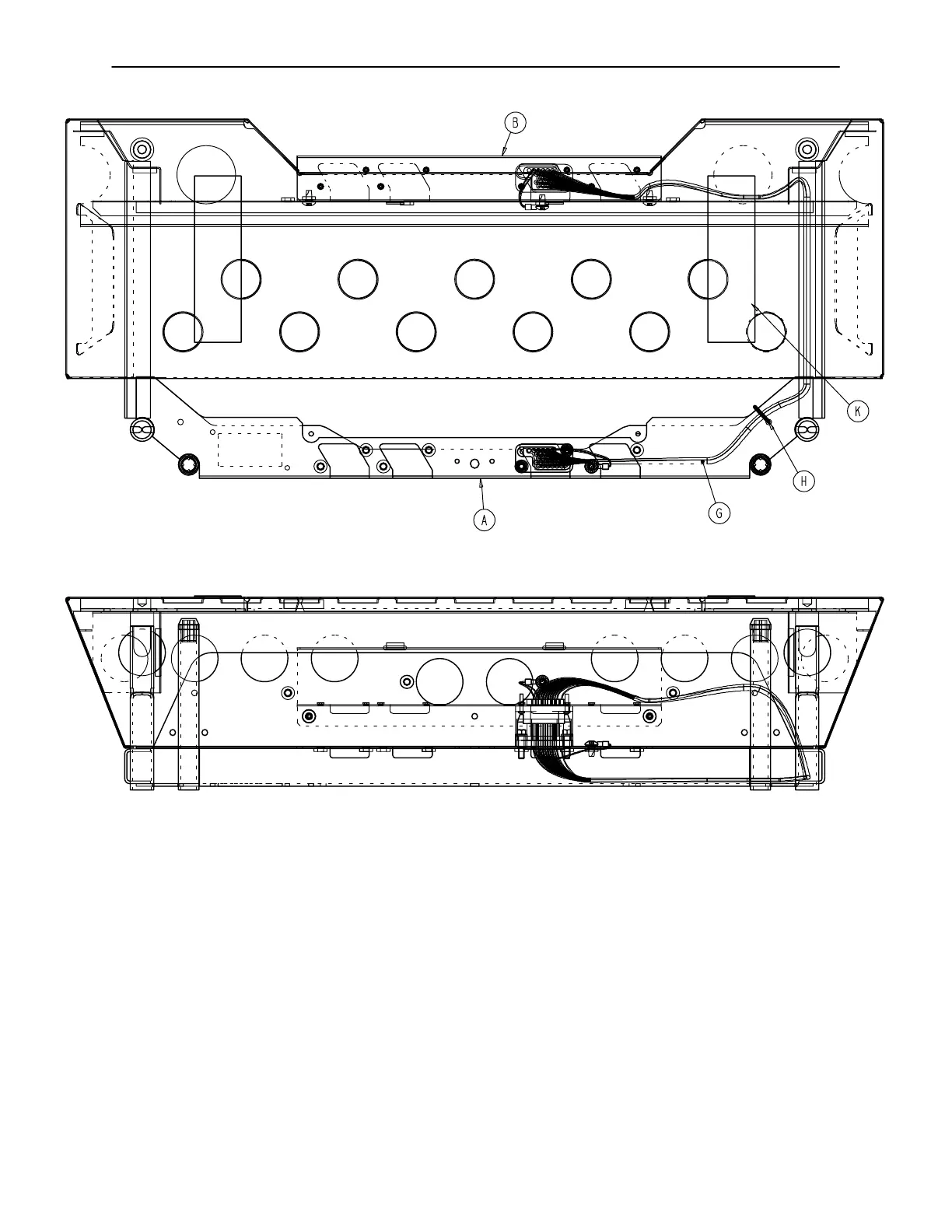

3001−318−20 Optional Bed Extender Assembly
262
Item Part No. Part Name Qty.
A 3001−318−50 Bed Extender Weldment 1
B 3001−318−31 Connector Mounting Bracket 1
C7−52 Truss Hd. Screw 4
D13−10 External Tooth Lock Washer 2
E 3001−200−228 Mounting Standoff 2
F50−39 Pan Hd. Machine Screw 2
G 3000−318−801 Bed Extender Cable 1
H 3000−300−114 Cable Tie 2
J 3000−300−349 Cap 2
K 7900−1−102 Velcro Adhesive Pile 2
