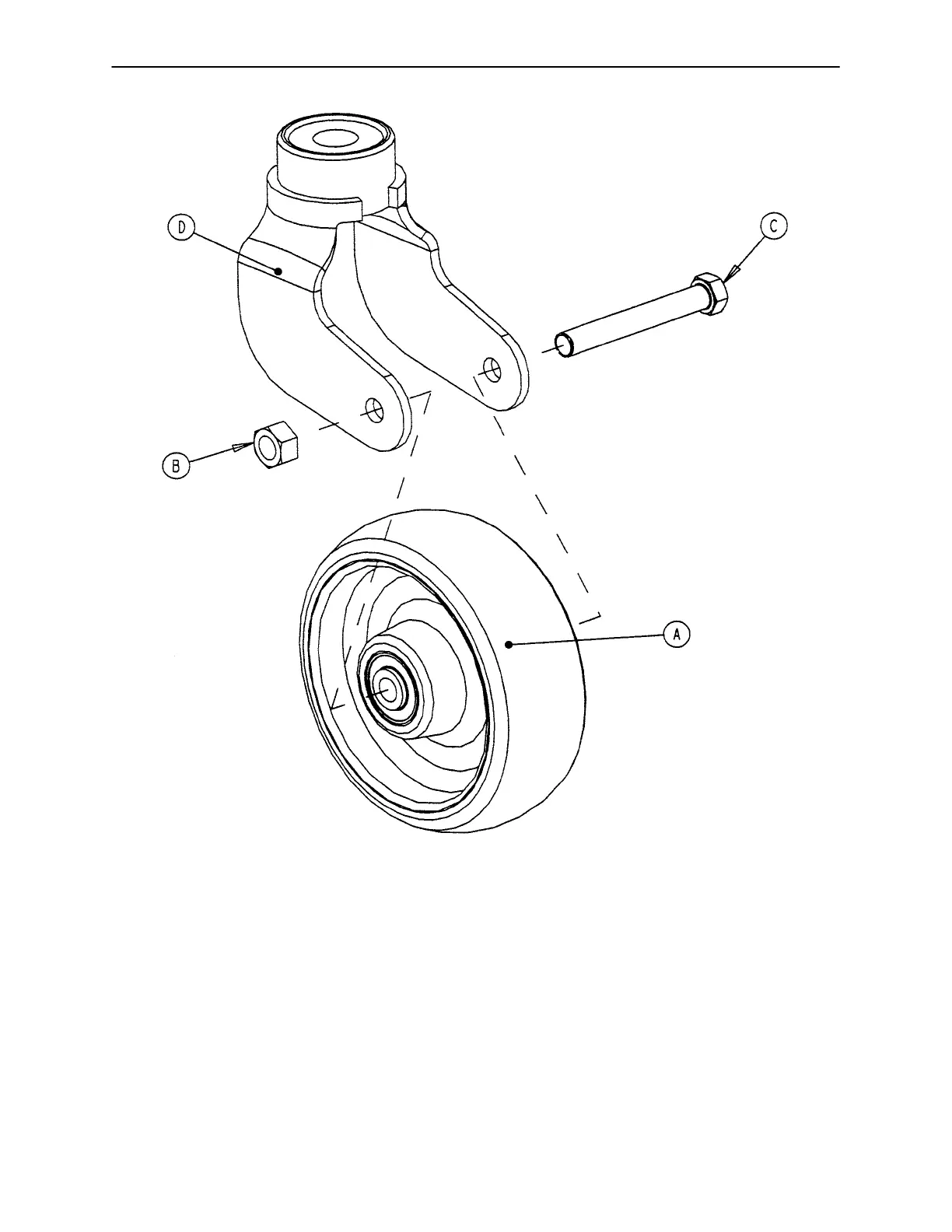

3001−200−60 6” Caster Assembly

116

Item Part No. Part Name Qty.

A(page 118) Wheel Assembly 1

B16−60 Lock Nut 1

C3−342 Hex Hd. Cap Screw 1

D 3001−200−61 Caster Horn w/Bearing 1
