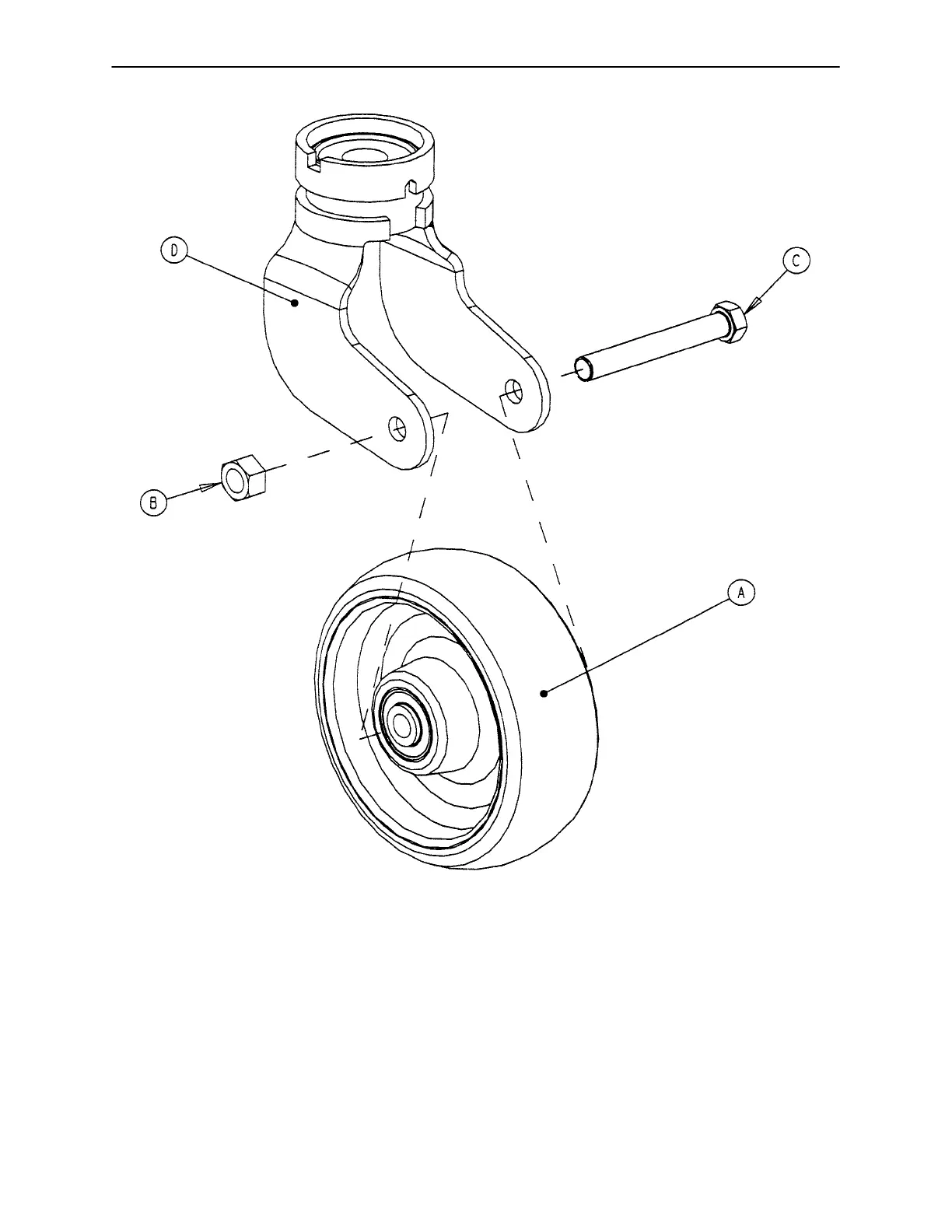

3001−200−50 6” Steer Caster Assembly

117

Item Part No. Part Name Qty.

A(page 118) Wheel Assembly 1

B16−60 Lock Nut 1

C3−342 Hex Hd. Cap Screw 1

D 3001−200−51 Steer Caster Horn w/Bearing 1
