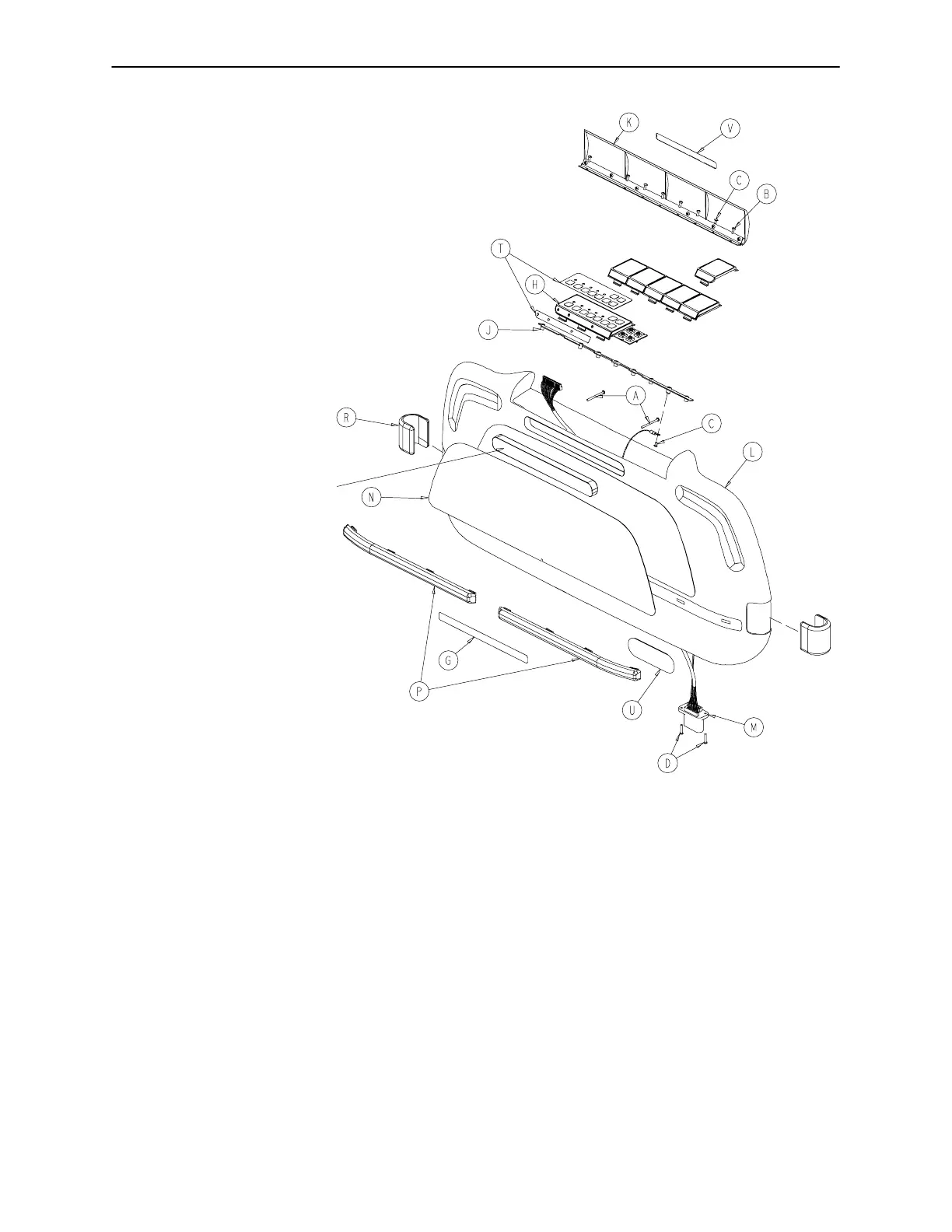

Foot Board Assembly
230
Optional Laminate
Hard Rock Maple 3000−50−441
Fine Oak 3000−50−442
Port Maple 3000−50−443
Wild Cherry 3000−50−446
Cayenne Maple 3000−50−447
Honey Maple 3000−50−448
Select Cherry 3000−50−449
3002−500−11 Standard Components
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A23−99 Phillips Pan Hd. Screw 2 K 3001−500−1 Lid Assembly 1
B23−103 Pan Hd. Hi−Lo Tap. Screw 7 L 3001−500−10 Clam Shell Assembly 1
C50−38 Pan Hd. Mach. Screw 2 M 3001−500−801 Foot Board Drawer Cable 1
D50−39 Pan Hd. Mach. Screw 2 P 2025−000−105 Bumper Strip 2
E72−2−71 “C” Bumper Adhesive 1 R 3002−500−7C−Bumper 2
F 3000−500−8 Chart Rack Cover 1 T 3002−500−24 Standard Module Label 1
G 3000−500−29 Hazard Label 1 U 3002−500−601 Secure II Label 1
H(page 239) Std. Control Module Ass’y 1 V 3002−500−25 Lid Label 1
J 3001−500−64 Hinge Plate 1
To Next Page
