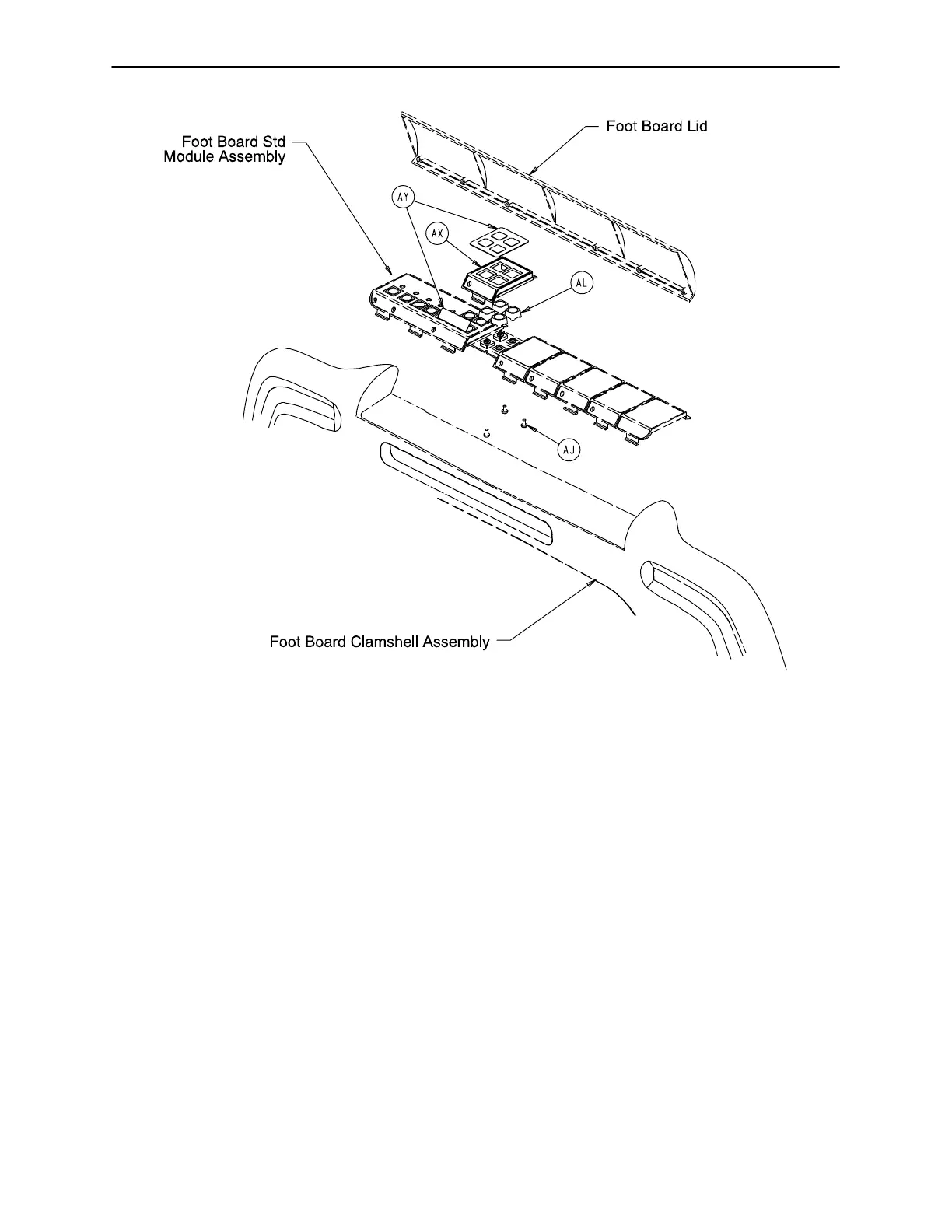

Foot Board
Assembly
238
Gatch/Fowler
−
p/n 3002
−
501
−
11
Item
Part No.
Part
Name
Qty
.
AJ
23
−
87
Pan Hd. Hi
−
Lo T
ap. Screw
3
AL
3001
−
400
−
953
Switch Cap
4
AX
3000
−
501
−
1
Gatch/Fowler Module
1
A
Y
3002
−
501
−
2
Gatch/Fowler Module Label
1
240
242
