Stryker Secure II 3002 - Base Assembly and Options

Secure II Bed Assembly
99

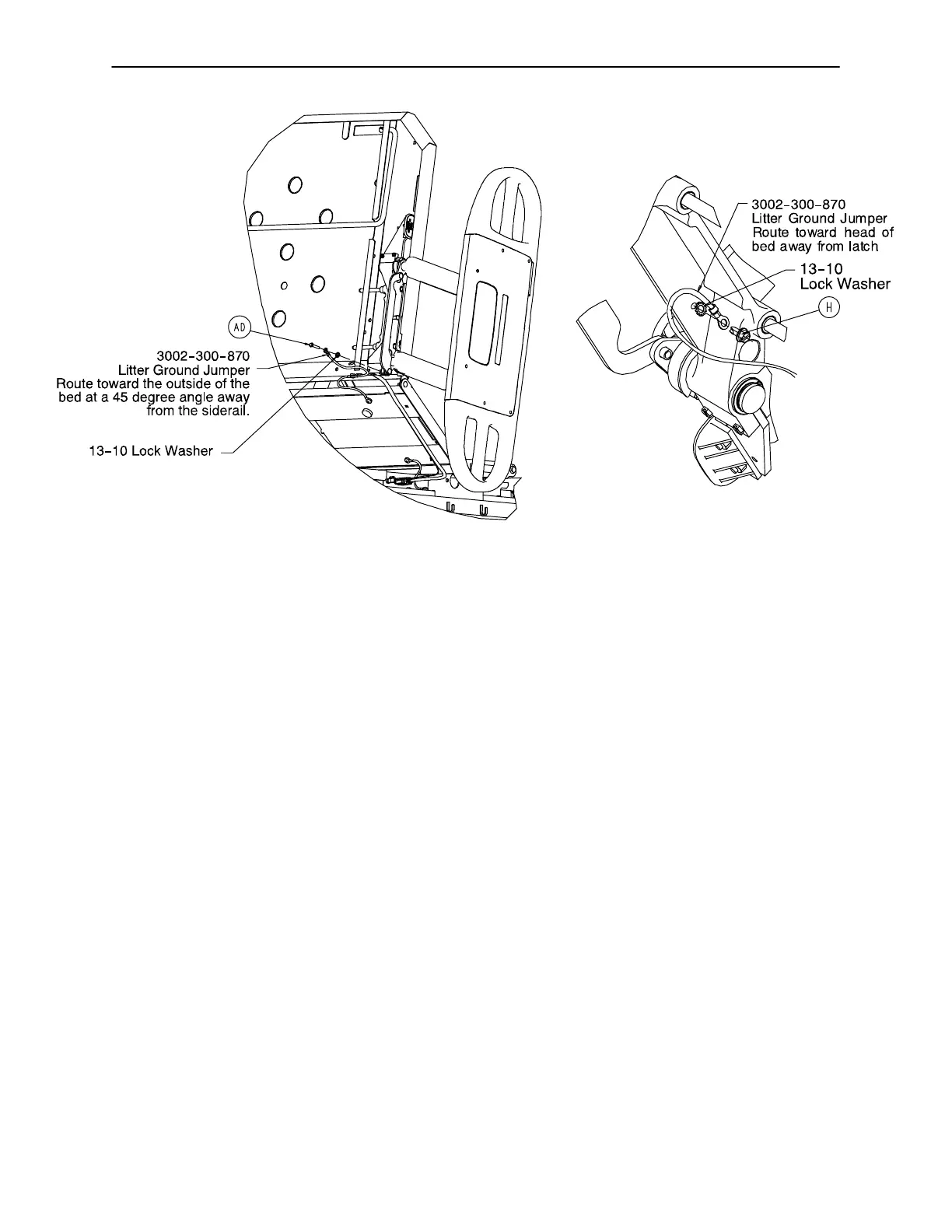

FOOT END SIDERAIL
GROUND CONFIGURATION
HEAD END SIDERAIL
GROUND CONFIGURATION
8” Shorter Bed Components Standard Length Bed Components
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A (page 141−147) Litter Assembly 1 A (page 141−147) Litter Assembly 1
B (page 197−215) Lt. Hd. End Siderail Ass’y 1 B (page 197−215) Lt. Hd. End Siderail Ass’y 1
C (page 197−215) Rt. Hd. End Siderail Ass’y 1 C (page 197−215) Rt. Hd. End Siderail Ass’y 1
AA (page 220−222) Lt. Ft. End Siderail Ass’y 1 AA (page220−222) Lt. Ft. End Siderail Ass’y 1
AB (page 220−222) Rt. Ft. End Siderail Ass’y 1 AB (page 220−222) Rt. Ft. End Siderail Ass’y 1
Zoom Option Bed Components Zoom Option 8” Shorter Bed Components
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A (page 141−147) Litter Assembly 1 A (page 141−147) Litter Assembly 1
B (page 197−215) Lt. Hd. End Siderail Ass’y 1 B (page 197−215) Lt. Hd. End Siderail Ass’y 1
C (page 197−215) Rt. Hd. End Siderail Ass’y 1 C (page 197−215) Rt. Hd. End Siderail Ass’y 1
AA (page 220−222) Lt. Ft. End Siderail Ass’y 1 AA (page 220−222) Lt. Ft. End Siderail Ass’y 1
AB (page 220−222) Rt. Ft. End Siderail Ass’y 1 AB (page 220−222) Rt. Ft. End Siderail Ass’y 1
3002−31−113 Umbilical Cable Iso. Brkt. 1 3002−31−113 Umbilical Cable Iso. Brkt. 1
AC (page 131) Bottom Cover (not shown) 1
Battery Back−Up Option Components
Item Part No. Part Name Qty.
A (page 141−147) Litter Assembly 1
B (page 197−215) Lt. Hd. End Siderail Ass’y 1
C (page 197−215) Rt. Hd. End Siderail Ass’y 1
AA (page 220−222) Lt. Ft. End Siderail Ass’y 1
AB (page 220−222) Rt. Ft. End Siderail Ass’y 1
