Chapter 4 Servicing Motherboard Components 4-5

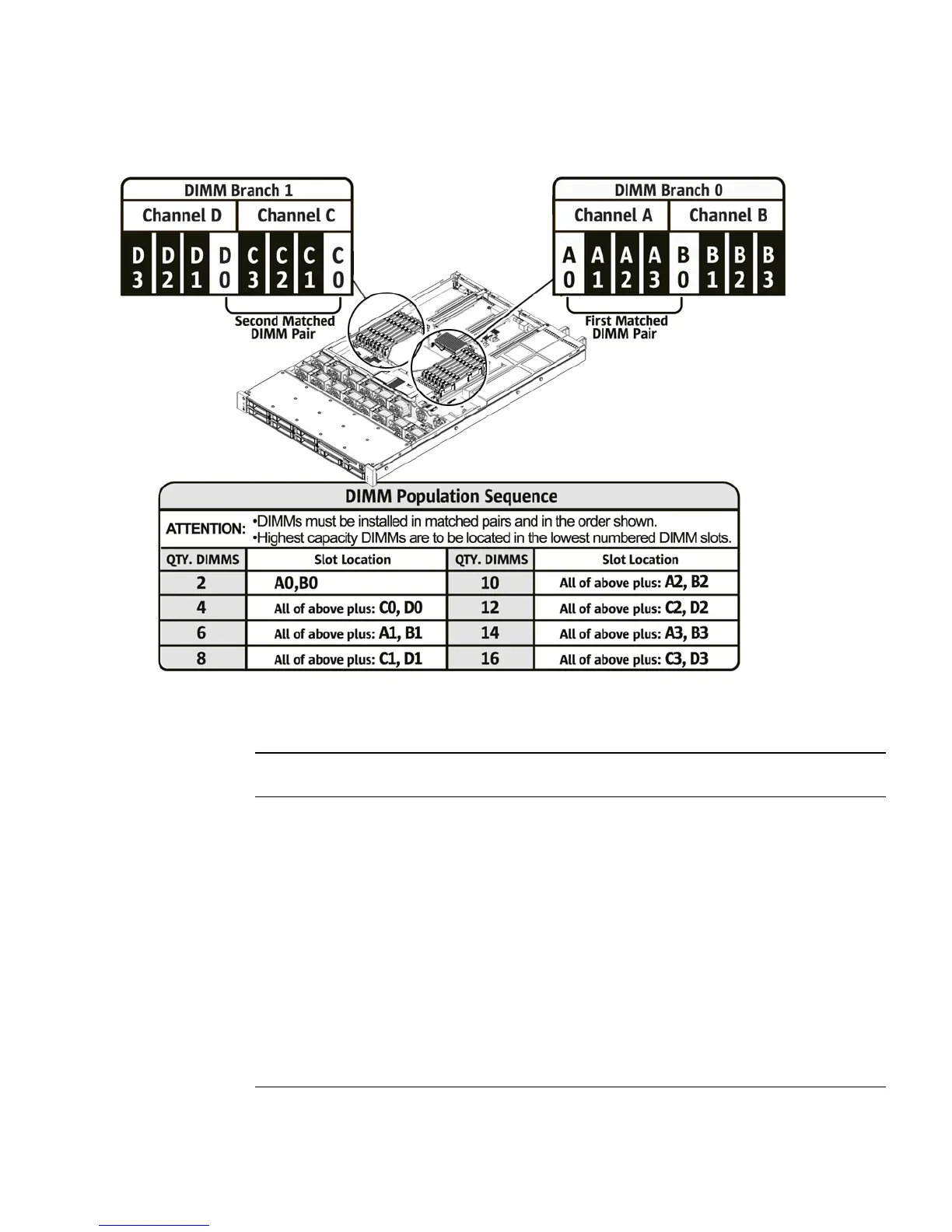

FIGURE 4-2 FB-DIMM Layout
TABLE 4-1 FB-DIMM Branch Number, Channel Number, ILOM Address, and Connector
Branch Number Channel Number ILOM Address
Motherboard FB-DIMM
Connector
Branch 0 Channel A /SYS/Memory/DIMM_A0 J1001
/SYS/Memory/DIMM_A1 J1101
/SYS/Memory/DIMM_A2 J1101
/SYS/Memory/DIMM_A3 J1101
Channel B /SYS/Memory/DIMM_B0 J1201
/SYS/Memory/DIMM_B1 J1301
/SYS/Memory/DIMM_B2 J1301
/SYS/Memory/DIMM_B3 J1301
Branch 1 Channel C /SYS/Memory/DIMM_C0 J1001
/SYS/Memory/DIMM_C1 J1101
