Note – FB-DIMM names in ILOM messages are displayed with the full name, such
as /SYS/Memory/DIMM_D0.

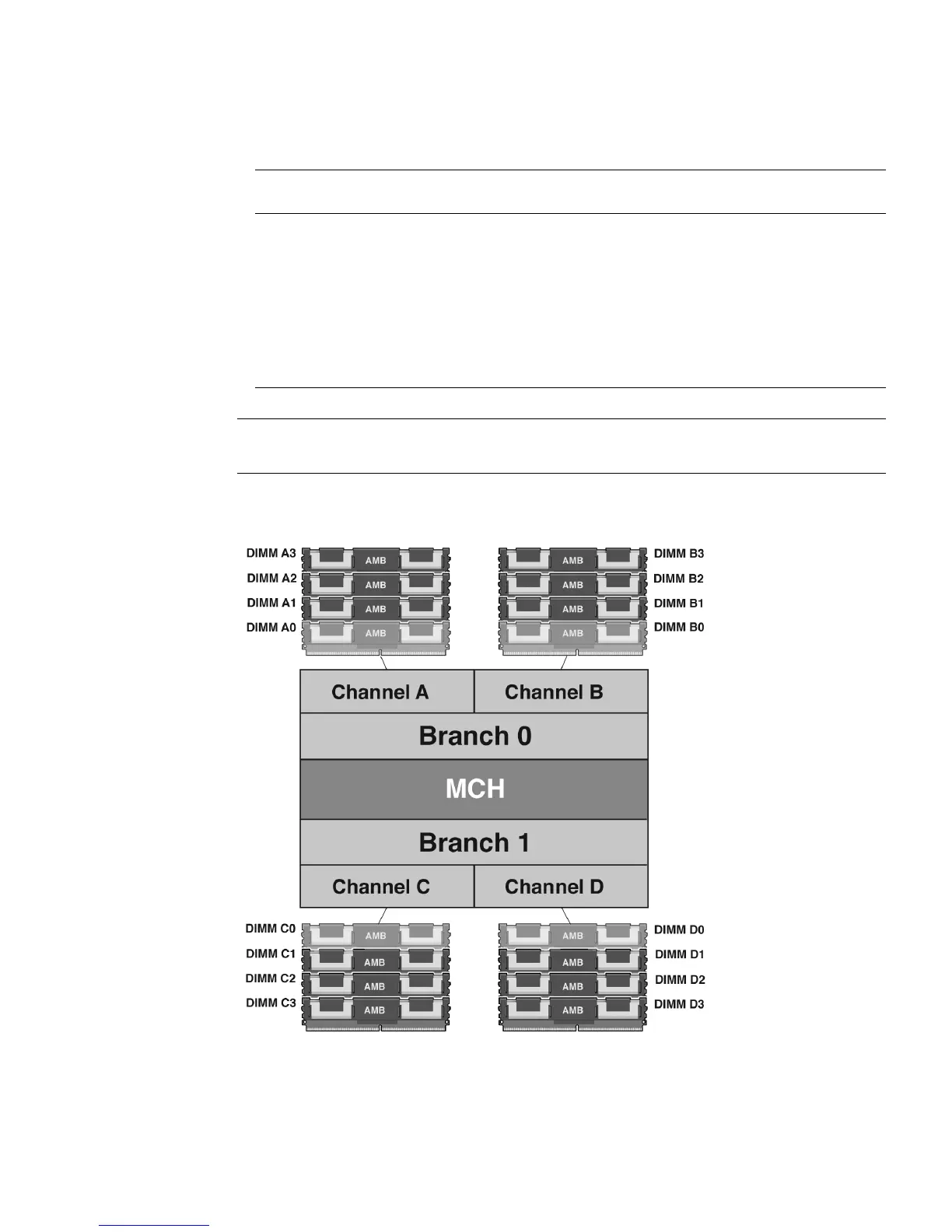

FIGURE 4-3 Memory Organization
/SYS/Memory/DIMM_C2 J1101
/SYS/Memory/DIMM_C3 J1101
Channel D /SYS/Memory/DIMM_D0 J1201
/SYS/Memory/DIMM_D1 J1301
/SYS/Memory/DIMM_D2 J1301
/SYS/Memory/DIMM_D3 J1301
TABLE 4-1 FB-DIMM Branch Number, Channel Number, ILOM Address, and Connector
Branch Number Channel Number ILOM Address
Motherboard FB-DIMM
Connector
